Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Core Diameter μm :
9 、62.5、50
Cladding Diameter μm :
125± 1.0
Coating Diameter μm :
245± 10
Attenuation(max.) :
850nm 3.5 、1300nm 1.5、 1310nm 0.45、1550nm 0.3
Buffer Diameter :
850µm±50µm
Fiber Count :
2
Buffer Material :
LSZH
Jacket Diameter :
7.0 (0/-0.2) mm
Tension (Long Term) N :
200
Operation temperature C :
-30~+70
Crush (Long Term) N/ 10cm :
1100
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
FIBER OPTIC Break-out Cable Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring
  • Interconnection of instruments and communication equipment
FIBER OPTIC Break-out Cable Features
  • The coating layer has good protection and peeling performance
  • Tight sleeve optical fiber has good flame retardant performance
  • Accurate geometric parameters ensure low welding loss and high welding efficiency
FIBER OPTIC Break-out Cable Parameter and Properties
NoItemsunitSpecification
1Core Diameterμm9 ,62.5,50
2Cladding Diameterμm125± 1.0
3Core non-circularity%≤6.0
4Cladding non-circularity%≤2.0
5Core-cladding concentricityμm≤ 1.0
6Coating Diameterμm245± 10
7Cladding -coating concentricityμm≤ 12.5


8

Attenuation(max.)

850nm

dB/km

3.5
1300nm1.5
1310nm0.45
1550nm0.3

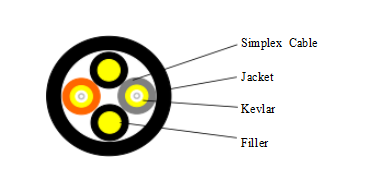

FIBER OPTIC Break-out Cable Structure
ItemsSpecifications
Fiber Count2
BufferDiameter850µm±50µm
MaterialLSZH

Simplex cable

Diameter2.0mm±0. 1mm
MaterialLSZH
ColorSM:blue,yellow MM:Orange,Gray

Filler

Diameter2.0mm±0. 1mm
MaterialLSZH
ColorBlack
Strength MemberKevlar

Jacket

Diameter7.0 (0/-0.2) mm
MaterialLSZH
ColorBlack

Mechanical and Environmental Characteristics

ItemsUniteSpecifications
Tension (Long Term)N200
Tension (Short Term)N400
Crush (Long Term)N/ 10cm1100
Crush (Short Term)N/ 10cm2200
Min. Bend Radius (Dynamic)mm20D
Min. Bend Radius (Static)mm10D
Installation temperatureC-20~+60
Operation temperatureC-30~+70
Storage temperatureC-30~+70
FIBER OPTIC Break-out Cable Picture
Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
