Specifications
Brand Name :
OEM
Model Number :
MPO MTP
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
5.99~19.99US$/PC
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
50000pcs per week
Delivery Time :
3-7 working days
Packaging Details :
with Carton Box
Product Name :
MT-2 Mini MT Patchcord, SMG657A, OM3, OM4 for QSFP, QSFP+, QSFP28, 100G PSM4
Fiber Cores :
2F/4F/8F/12F/24F
Fiber Mode :
OM2, OM3, OM4, OM5; OS1,OS2
Polishing Type :
APC or PC
Gender :
Male, Female
Loss :
Low Loss or Standard Loss
Fiber length :
20mm to 50mm
Fiber Shape :
Ribbon Type
Length tolerance :
+0.3/-0mm~+0.5/-0mm
Description

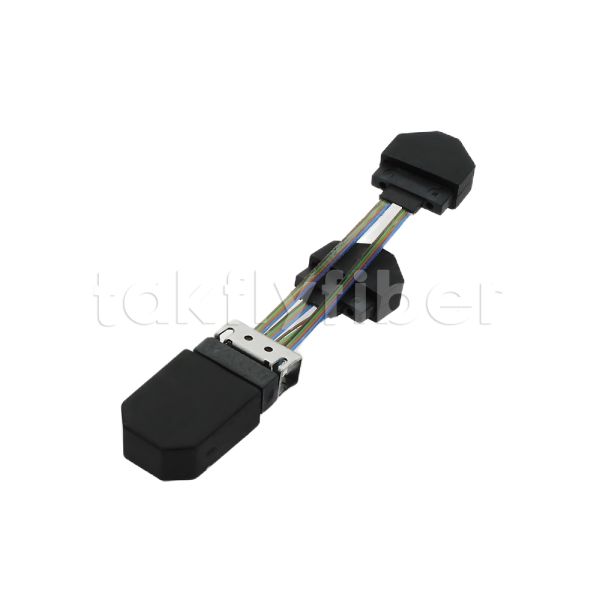

MT-2 Mini MT Patchcord, SMG657A, OM3, OM4 for QSFP, QSFP+, QSFP28, 100G PSM4
Takfly's MT-2 Mini MT Patchcord is engineered for parallel optics technology, specifically designed to seamlessly integrate optical modules (QSFP) with external ports. This patchcord ensures efficient signal transmission within various optical modules including QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro QSFP, OSFP, CXP, CFP, CDFP, and other parallel optics modules, enhancing overall network performance.
Key Features
  • Superior Performance: Low insertion loss less than 0.35dB with high stability ensures reliable signal transmission and enhanced network efficiency
  • Precise Fit: Precision-engineered with tight length tolerance of L+/-0.15mm for secure, exact connections every time
  • Customization Flexibility: Extensive MT patchcord series fully customizable to meet unique network requirements
  • Standards Compliance: Adheres to highest industry standards including GR-1209, GR-1221, and RoHS for guaranteed reliability
Applications
Compatible with QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules. Supports OEM/ODM matching for internal micro connection applications of various optical modules above 200G.
Technical Specifications
Item Specification
Connector A MT insert with guide pin
Connector B MT pin
Fiber shape Ribbon / loose fiber
Number of cores 8F/12F/16F/24F
Optical fiber model OM2, OM3, OM4, OM5; OS1, OS2
Length 20~50mm Optional
Length tolerance +0.3/-0mm~+0.5/-0mm
MT-2 Mini MT Patchcord with Low Insertion Loss and Precision Length Tolerance for QSFP Modules

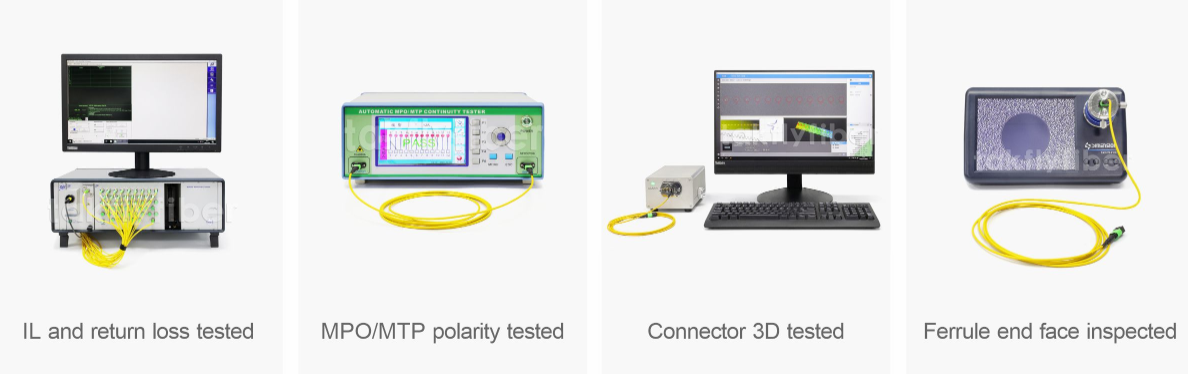

Quality Assurance: 100% testing for insertion loss, return loss, end face test, 3D test and polarity test before shipping.
MT-2 Mini MT Patchcord with Low Insertion Loss and Precision Length Tolerance for QSFP Modules
Why Choose Takfly
  • More than 25 years manufacturing experience in fiber optic products
  • More than 450 assembly workers with 6+ years experience
  • More than 10 R&D Engineers
  • 16 sets of Germany imported injection machines and 16 production lines
  • More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
  • OEM branding accepted
  • Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
  • Main Cooperated partners: Nvidia, Google, Vodafone, Telefonica, Orange, Movistar, etc.
Quality Control Process
  • Spot check raw material incoming inspection before production
  • Full inspection after every individual process completion
  • Full inspection of production half-done stages
  • Full inspection of finished products before packing
  • Spot check before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass production orders: 3-7 working days
  • Packaging: Plastic bag, carton and pallet options available according to your requirements
With over 10 years of professional experience in fiber optic products at Takfly, our team is ready to assist with your specific requirements. Contact us today to discuss your fiber optic product needs.
