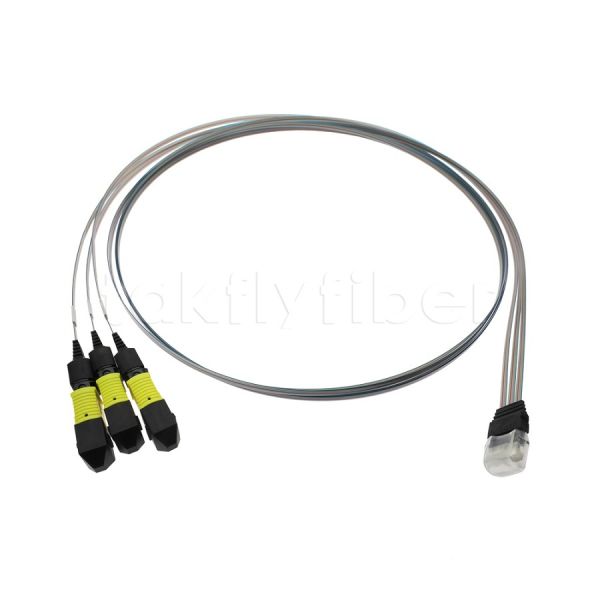

3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
Specifications
Brand Name :
OEM/Takfly
Model Number :
DF-MT-2FA
Certification :
CE, ROSH REACH
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Can be negotiated
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
20000pcs per month
Delivery Time :
3-15 working days according to qty and requirements
Packaging Details :
PP bags + carton box / plastic box + carton box
Product name :
3x12F MTP x 36CH Fiber Array FA Assembly with high transmission rate, low comsuption, high stability and reliability
Fiber Type :
OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5
Fiber Count :
36Fiber
FA Angle :
0 / 42.5°
Fiber Length :
20~100mm, customized length available
Description
3x12F MTP - 36CH Fiber Array FA Assembly
High-performance 36-channel fiber array assembly featuring high transmission rate, low consumption, and exceptional stability and reliability for demanding optical applications.
Product Overview
Takfly's MT-FA patch cords are specifically engineered for high-speed optical module applications, connecting internal optics to external ports to ensure seamless signal transmission. These fiber optic arrays utilize V-groove substrates to precisely position fiber bundles or ribbons at specified spacing, delivering stable transmission performance with high reliability and customization options.
Applications
  • Active Optical Modules
  • Communication, high-speed, high-capacity fiber optic transmission
  • Internal connector applications in fiber equipment
  • Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
Key Features
  • Stable optical characteristics
  • High-precision MT ferrule with small bending radius fiber for low loss
  • Typical core pitch tolerance <±0.5μm
  • High accuracy and customization capabilities
  • Optical characteristics comply with IEC TIA/EIA standards
  • RoHS 2.0 Compliant
Technical Specifications
Parameter Unit Value
Fiber Count - Optional
Fiber Mode - SM: G652, G657 | MM: OM1, OM2, OM3, OM4, OM5
Wavelength nm 1310/1550 | 850/1300
MT Endface Polishing - PC | APC | PC | APC
Insertion Loss (IL) dB ≤0.35 | ≤0.35
Return Loss (RL) dB ≥50 | ≥60 | ≥20 | ≥40
Durability Time 50
FA Lid Dimensions (L x W x T) mm 2.5 x 2 x 0.2 (Optional)
V-Groove Dimensions (L x W x T) mm 5 x 2 x 0.5
Core Pitch μm 175, 250
Bare Fiber Degree ° 8, 42.5, 45
FA Insertion Loss (IL) dB ≤0.8
Operating Temperature ℃ -20 ~ +80
Storage Temperature ℃ -15 ~ +60
3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability 3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
