Specifications
Brand Name :
OEM
Model Number :
DF-DWDM-LGX-8+1
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
USD230-320/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Customization :
Yes
Description
Fiber Optic DWDM 8+1 Channel MUX+DEMUX LGX Module for Data Center Telecom 5G
Product Overview

Takfly's DWDM LGX module utilizes advanced Thin Film Filter (TFF) wavelength division multiplexing technology with multiple wavelength options. This technology multiplexes optical signals of different wavelengths into a single fiber for transmission, and employs demultiplexing at the receiving end to separate the combined signals back into individual wavelengths.

DWDM systems feature channel spacing options of 100GHz, 200GHz, and other configurations, making them ideal for long-distance, high-capacity trunk networks and ultra-large capacity metropolitan area network core nodes.

Key Features
  • Low Insertion Loss
  • Wide Pass Band
  • High Channel Isolation
  • High Stability and Reliability
Applications
  • Telecommunications 5G Networks
  • Metropolitan Area Network Backbone Networks
  • Data Centers
Technical Specifications
Parameter 4 Channel 8 Channel 16 Channel
Channel Wavelength (nm) ITU 100 GHz Grid + 1270-1350
Center Wavelength Accuracy (nm) ±0.05
Channel Spacing (GHz) 100
Channel Passband (@-0.5dB bandwidth) (nm) ≥0.22
Insertion Loss ≤1.6 ≤2.5 ≤3.5
Channel Uniformity ≤0.6 ≤1.0 ≤1.5
Channel Ripple 0.3 0.3 0.3
Isolation Adjacent N/A >30 N/A
Isolation Non-adjacent N/A >40 N/A
Insertion Loss Temperature Sensitivity (dB/℃) ≤0.005
Wavelength Temperature Shifting (℃) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Operating Temperature (℃) -5 to +75
Storage Temperature (℃) -40 to +85
Package Dimensions
  • L100×W80×H10 mm (2CH-8CH Module)
  • L140×W100×H15 mm (9CH-18CH Module)
  • 19" 1U Rack
  • LGX

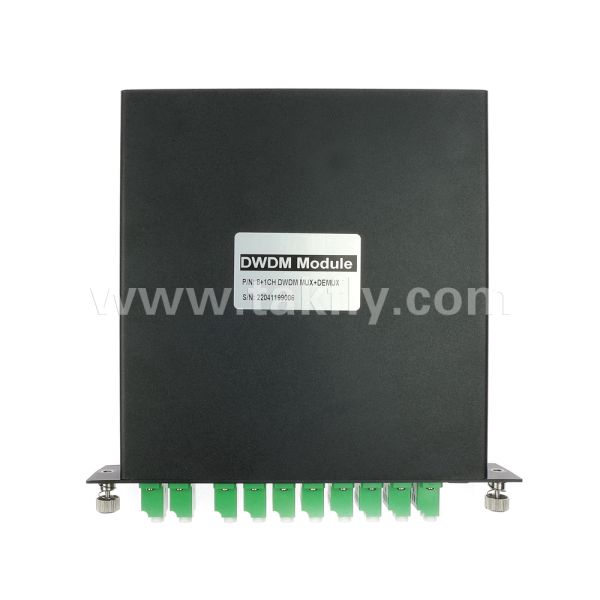

Product Images
Fiber Optic DWDM 8+1Channel MUX+DEMUX LGX Module for Data Center Telecom 5G Fiber Optic DWDM 8+1Channel MUX+DEMUX LGX Module for Data Center Telecom 5G
