Specifications
Brand Name :
OEM
Model Number :
DF-PLC-2xN-STEEL TUBE
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
USD3.9-49/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
blister packaging + carton
Customization :
Yes
Description
Fiber Optic PLC Splitter 2*N Steel Tube SC APC/UPC 0.9mm for Data Center Telecom FTTX
Product Overview

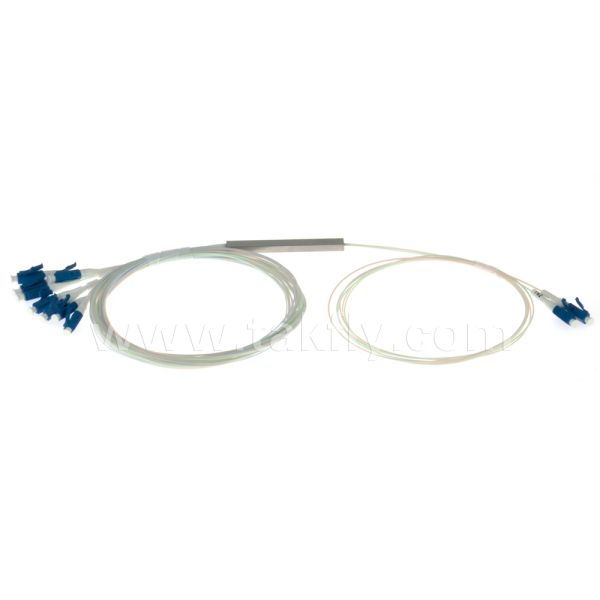

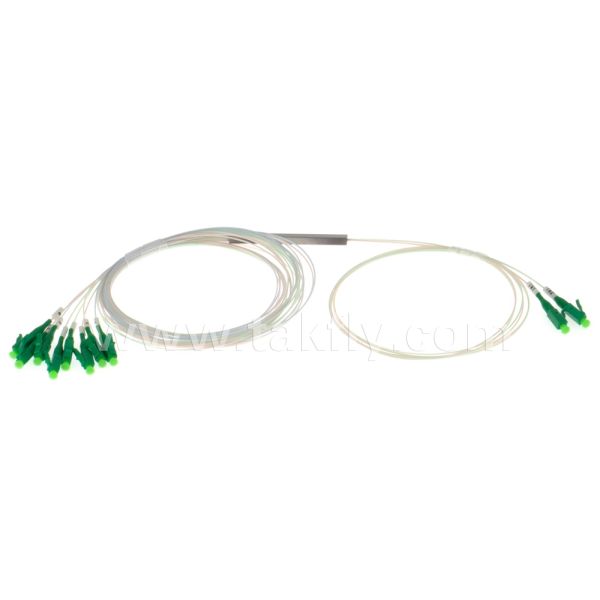

Fiber Optic PLC Splitter 2*N steel tube SC APC/UPC 0.9mm

PLC optical splitter is a power splitter based on integrated quartz baseplate technology. Single mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs. These splitters can also operate in reverse to combine multiple signals into one or two fibers.

Premium Quality Components

Available with high-quality ferrule and professional polishing technology, ensuring precise optical endface matching for stable transmission and efficient connection.

Performance Features

TAKFLY's PLC optical splitter Mini steel tube delivers excellent performance parameters. The PLC optical splitter is wavelength-insensitive and supports full-band signal transmission from 1260 to 1650 nm.

Applications

PLC optical splitters offer wavelength insensitivity, high stability, and uniform splitting, making them essential passive devices in optical networks. Widely used in:

  • MAN (Metropolitan Area Network)
  • LAN (Local Area Network)
  • FTTX networks
Customization Options

TAKFLY provides a comprehensive range of PLC optical splitters with full customization capabilities.

Fiber Optic PLC Splitter 2*N Steel Tube SC APC/UPC 0.9mm for Data Center Telecom FTTX
Technical Specifications
Item Parameter
Type (1*N) 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64
Max. Insertion Loss (dB) 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3
Max. Uniformity (dB) 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Type (2*N) 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64
Max. Insertion Loss (dB) 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8
Max. Uniformity (dB) 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Fiber Type ITU-T G657A1, G657A2 and G652D
Operating Wavelength (nm) 1260~1650
Max. Temperature Stability (dB) 0.5 (Typical 0.3)
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Fiber Optic PLC Splitter 2*N Steel Tube SC APC/UPC 0.9mm for Data Center Telecom FTTX Fiber Optic PLC Splitter 2*N Steel Tube SC APC/UPC 0.9mm for Data Center Telecom FTTX
