Specifications
Brand Name :
OEM
Model Number :
DF-PLC-1xN-STEEL TUBE-Colored
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
USD3-35/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
blister packaging + carton
Customization :
Yes
Description
Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX

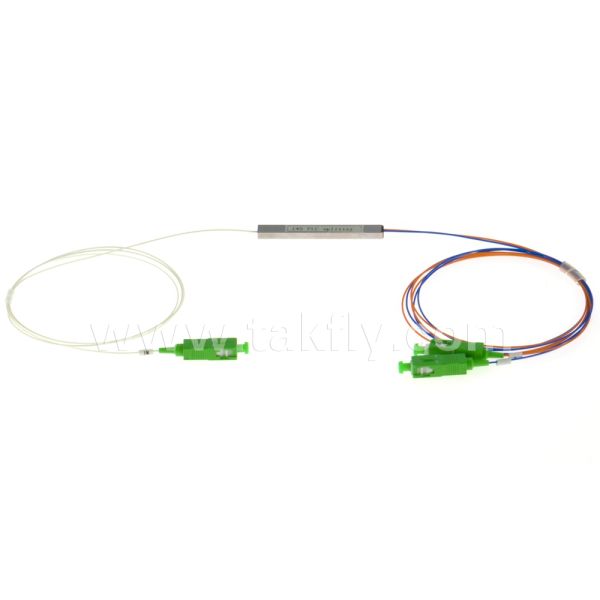

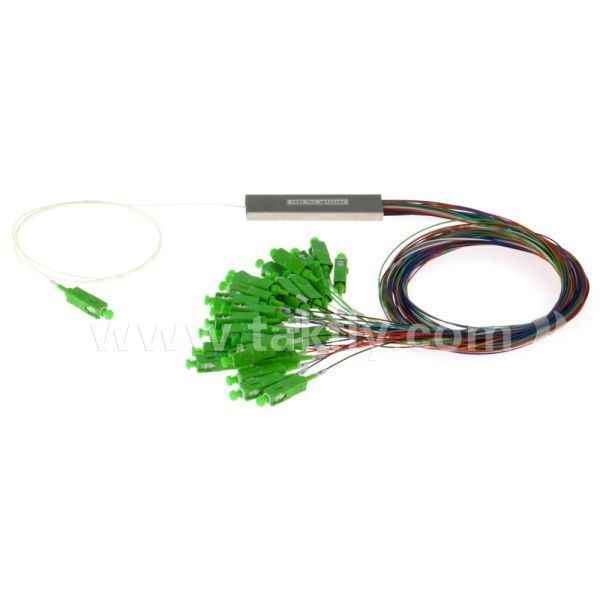

PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC

PLC optical splitter is a kind of power splitter based on the integrated quartz baseplate. Single mode PLC 1×N and 2×N splitter divide uniformly optical signals from one or two inputs to multiple outputs, and splitter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.

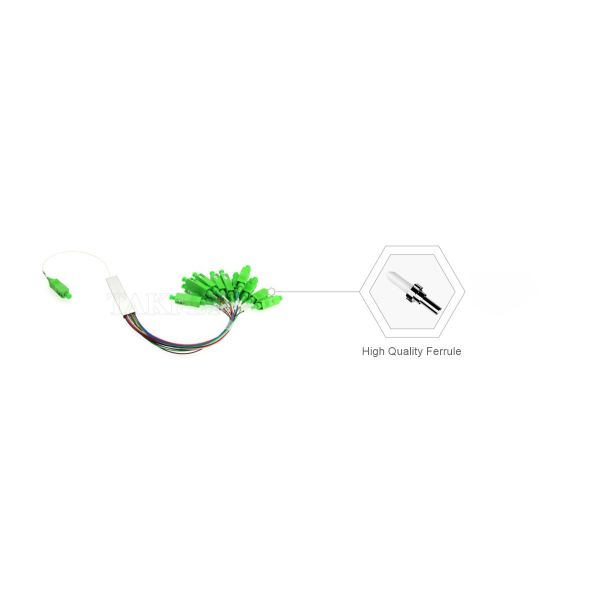

Selected High Quality Ferrule

Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve more stable transmission and efficient connection.

Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX
Excellent Performance Parameters

TAKFLY's PLC optical splitter Mini steel tube has excellent performance parameters. The PLC optical splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.

Multiple Types Optional

TAKFLY can provide a full range of PLC optical splitters and can be customized to meet specific requirements.

Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX
Application

PLC optical splitter has the advantages of insensitivity to wavelength, high stability and uniform splitting. It is one of the most important passive devices in optical networks. Widely used in MAN (metropolitan area network), LAN (local area network), FTTX, etc.

Technical Parameters
Item Parameter
Type (1×N) 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64
Max. Insertion Loss (dB) 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3
Max. Uniformity (dB) 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Type (2×N) 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64
Max. Insertion Loss (dB) 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8
Max. Uniformity (dB) 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Fiber Type ITU-T G657A1, G657A2 and G652D
Operating Wavelength (nm) 1260~1650
Max. Temperature Stability (dB) 0.5 (Typical 0.3)
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX
