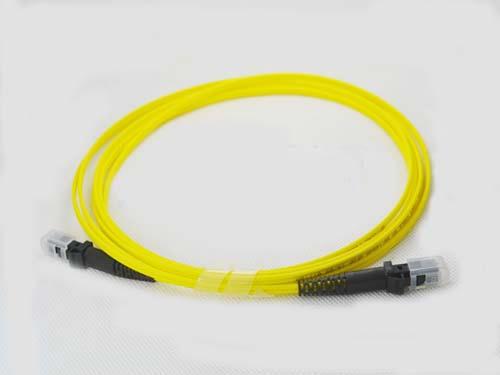

MTRJ-MTRJ Duplex Single Mode Fiber Patch Cord 0.2dB Insertion Loss

Specifications

Certification :

RoHS, CE

MOQ :

Price :

1.8

Connection Structure :

MTRJ

Material Shape :

Round Wire

Allowed Lateral Pressure :

100(N/100mm)<1000(N/100mm)

Allowed Tensile Strength :

<100N

Core :

Double Core

Sheath Material :

PVC

Insertion Loss :

0.2dB

Return Loss :

50dB

Tensile Strength :

10kgs

Operating Temperature :

-40~85 Degree

Suitable Fiber :

9/125 50/125 62.5/125

Insert-pull Test :

1000 times

Repeatability :

<=0.1

Ceramic Ferrule Specification :

125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um

Production Capacity :

50,000/Week

Description

MTRJ-MTRJ Duplex Singlemode Optical Patch Cord

Applications
CATVTelecom networkO
ptical test equipment
Local area networks
Wide area networks
Data processing Networks

Features

Low insertion loss value
High back reflection loss value
Stable capability and high reliability
Precis connector
Excellent mechanical capability
Boots in a variety of colors

Specifications

Item	Single Mode	Multi Mode
Insertion Loss	<=0.2dB	<=0.3bB
Return Loss	PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test	1000 times
Repeatability	<=0.1
Tensile strength	≥10KG
Operating Temperature	-40ºC ~ +85ºC
Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um	127um concentricity deviations:<=3um
Suitable Fiber	9/125um	50/125um,62.5/125um
