1U 2U 4U High Density MPO Cassette Patch Panel
1U 2U 4U High Density MPO Cassette Patch Panel
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
1U 2U 4U High Density MPO Cassette Patch Panel
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
1U 2U 4U High Density MPO Cassette Patch Panel
U Size :
1U (44.2mm)、2U(87.3mm)、4U(174.6mm)
Width :
482.6mm
Depth :
464.9mm
Packaged Size :
57*56*20cm、57*56*23cm
Material :
1.2mm Cold-rolled steel
Material Coating :
Powder coating
Color :
Black
Designed in Accordance With :
TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1
Compliant to :
RoHS, Reach/SVHC
Description
1U 2U 4U High Density MPO Cassette Patch Panel
Product Overview

Takfly series rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12 fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.

Application
  • Data center
  • Telecommunication networks
Feature

Up to 12 Small/MTP modules in 1U Multiple adaptor options available Accepts loose tube, distribution and pre-terminated cables ROHS, REACH SvHC and UL rated Fits standard 19”,sliding-type design, convenient for management.

Specification
U Size 1U (44.2mm) 2U(87.3mm) 4U(174.6mm)
Number of Ports 12(Max 144core) 24(Max 288core) 48(Max 576core)
Width 482.6mm
Depth 464.9mm
Net Weight 6.8kg 12.0kg 18.5kg
Packaged Weight 8.7kg 14.3kg 21.5kg
Packaged Size 57*56*20cm 57*56*23cm /
Material 1.2mm Cold-rolled steel
Material Coating Powder coating
Color Black
Designed in Accordance With TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1
Compliant to RoHS, Reach/SVHC

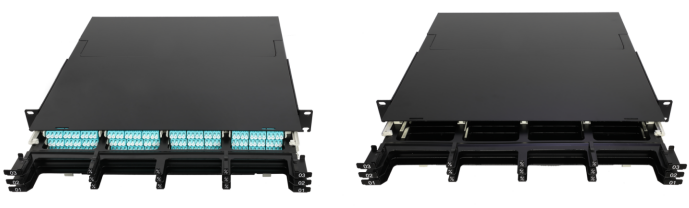

Product Picture

1U 2U 4U High Density MPO Cassette Patch Panel

Why Choose TAKFLY
  • More than 25 years manufacturing experience in fiber optic products
  • More than 450 assembly workers with 3+ years experience
  • More than 10 R&D Engineers
  • 16 sets of Germany imported injection machines and 16 production lines
  • More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
  • OEM branding accepted
  • Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
  • Spot check raw material incoming inspection before production
  • Full inspection after every individual process completion
  • Full inspection of production half-done stages
  • Full inspection of finished products before packing
  • Spot check before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass production orders: 3-7 working days
  • Packaging: Plastic bag, carton and pallet options available according to your requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
