10/100/1000M Media converter Specification
10/100/1000M Media converter Specification
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
10/100/1000M Media converter
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
2000 nos/week
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
10/100/1000M Media converter Specification
Access Method :
10/100/1000Mbps
Standard :
IEEE802.3,IEEE802.3U,IEEE802.3ab ,IEEE802.3Z ,EEE802.19,IEEE802.1P,IEEE80 2.1d
Wavelength :
850/1310/1550nm
Distance :
Dual Fiber LC type MM: 550m,Dual Fiber SM: 10/2030 15080Km,Single Fiber SM: 20140160Km. CAT5: 100m
Time Delay :
<10us
Power Supply :
DC5V 1A (external power),AC220 0.5A /DC-48( internal power )
Power Dissipaion :
3W
Operating temperature :
Operating temperature : 0~50ºC
Environment :
Humidity: 5% to 90% non-condensing
Storage Temperature :
-40~70ºC
Dimensions :
External:94mmx70mmx26mm;Internal:140mmx110mmx30mm
Description
10/100/1000M Media Converter Specification
10/100/1000M Media converter Specification

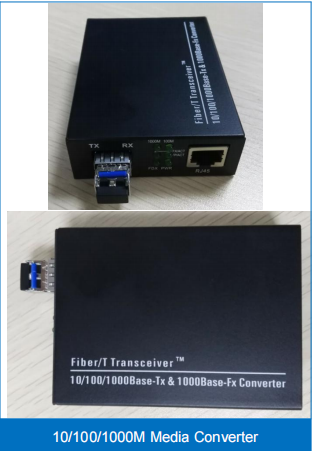

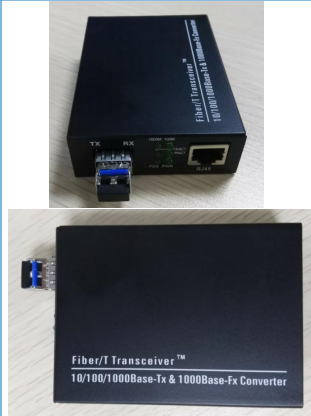

10/100/1000M Media converter Overview

Advanced media converter supporting conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX with full-duplex 1000M working pattern.

10/100/1000M Media converter Features
  • HLC solution with low-temperature-rise chip, eliminating need for cooling system
  • Flow control implementation to decrease broadcast storm
  • Premium optical-electronic-integration module ensuring reliable data transmission and extended working life
  • Broadcast filtering, address auto-learning and auto-updating capabilities
  • Store-and-forward operating mechanism
  • Full-duplex flow control or half-duplex back pressure working patterns with Auto-negotiation
  • 9kbyte super data packet transmission via store and forwarder mode
  • Comprehensive indicator lamps for link-loss, electrical and optical link diagnostics
  • Dynamic data transmission monitoring and full/half duplex, data rate indicators
  • MTBF exceeding 50,000 hours, compliant with telecom operating standards
  • Flexible optical port options: dual fiber (MM), dual fiber (SM), single fiber (SM)

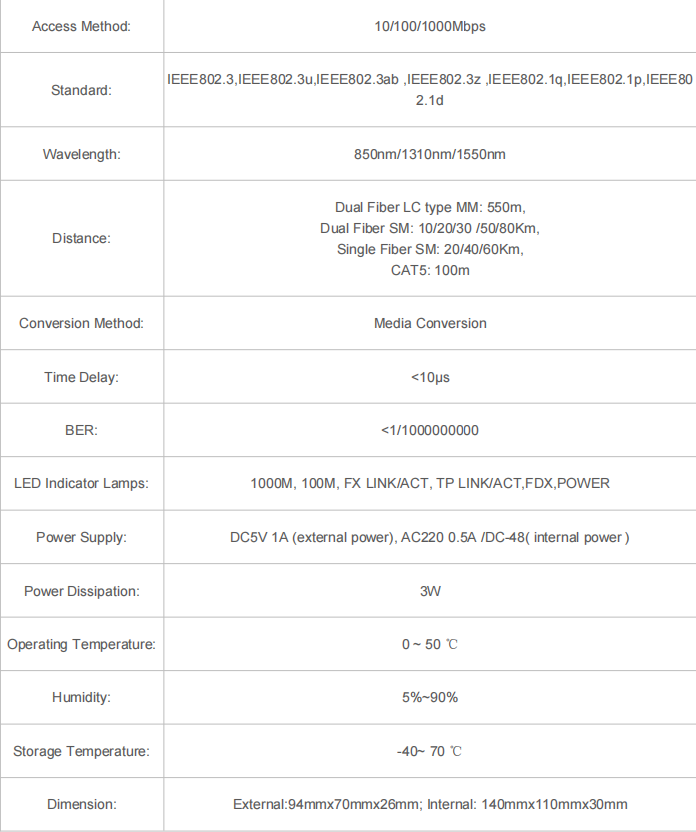

10/100/1000M Media converter Specifications
10/100/1000M Media converter Specification
Why Choose TAKFLY
  • 25+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to product innovation
  • 16 sets of Germany imported Injection Machines and 16 Production Lines
  • 30+ sets of Testing Machines including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
  • OEM branding services available
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
  • Raw material incoming inspection with spot checking before production
  • Full inspection after completion of every individual process
  • Comprehensive half-done production checks
  • Thorough finished product inspection before packing
  • Final spot checking before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging Options: Plastic Bag, Carton, and Pallet available per customer request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly. Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise upon receipt, please provide photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Standard packaging includes blister boxes and cartons. Customized packaging is available per customer specifications.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide product and packaging photos before final payment.
Q8: What is your terms of delivery?
A8: Available delivery terms include EXW, FOB, CFR, CIF, and DDU.
Q9: How about your delivery time?
A9: Standard delivery is 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
