14 Slot Rack mount Chassis Standard 19 inch rack 2U height
14 Slot Rack mount Chassis Standard 19 inch rack 2U height
Specifications
Power Output :
80W maximum
Input voltage :
AC 100-240V 50/60Hz ，DC 36-72V
Output voltage :
DC 5V
Dimension (W* D* H) :
427mm (W)x230mm (D)x91 mm (H)
Product Name :
14 Slot Rack mount Chassis Specification
Humidity :
Humidity:5%~90%
Operating Temp :
Operating Temp: 0~50°C
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Supply Ability :
2000 nos/week
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Maintaining temperature :
Storage Temp:40~70°C
Payment Terms :
Western Union,T/T,/Paypal
Description
14 Slot Rack mount Chassis Standard 19 inch rack 2U height
14 Slot Rack mount Chassis Standard 19 inch rack 2U height
14 Slot Rack mount Chassis Overview
Fiber optical media converter is the Ethernet transmission media conversion unit which interconverts the electric signals on twisted pair cable of short distance and optical signals of long distance. It is also called fiber to Ethernet converter. Fiber optical media converter generally uses at internet environment where Ethernet cable could not cover and have to use fiber optical cable to extend the transmission distance. Also it is located in internet access solution of MAN(metropolitan area network) broadband.
Fiber optical media converter breaks the 100m distance limits of Ethernet electric cable, makes the internet coverage extending to 120KM effectively, bases on high performancededicated chipset and cache of large capacity to provide non-blocking transmitting performances. In addition, it also provides the function of balancing flow, isolating the conflicts and dedicating errors to ensure the security and stability of data transmission.
The 14-Slot Rack-mount Chassis is specially designed for accommodating chassis-based Media Converters. It is a standard 19-inch 2U height rack-mount chassis which can be suitably mounted in the standard 19-inch rack.The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in the chassis.
14 Slot Rack mount Chassis Features
  • Suitable for standard 19 inch rack
  • 2U height with maximum 14 slots capacity
  • Supports several module type media converters
  • Supports redundant power supply modules
  • Supports hot-swappable operation
  • Two side LED indicators

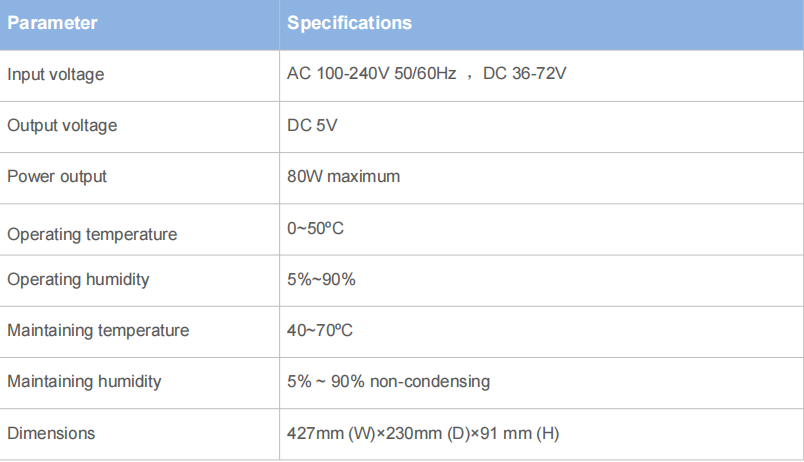

14 Slot Rack mount Chassis Specifications

Parameter

Specifications

Input voltage

AC 100-240V 50/60Hz ,DC 36-72V

Output voltage

DC 5V

Power output

80W maximum

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

427mm (W)×230mm (D)×91 mm (H)

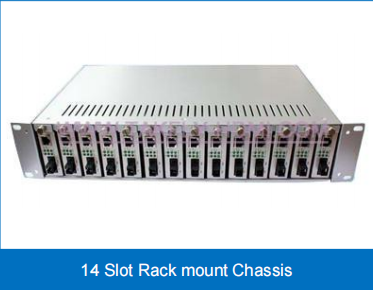

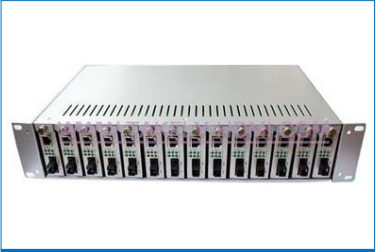

14 Slot Rack mount Chassis Images
14 Slot Rack mount Chassis Standard 19 inch rack 2U height
Why Choose TAKFLY
  • More than 25 years manufacturing experience in fiber optic products
  • Over 450 assembly workers with 3+ years experience
  • More than 10 R&D Engineers
  • 16 sets of Germany imported Injection Machines and 16 Production Lines
  • 30+ sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
  • OEM branding accepted
  • Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Final spot checks before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet options available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please provide photos for our reference. Our QC department will investigate and provide solutions while implementing improvements.
Q6: What are your packing terms?
A6: Standard packaging includes blister boxes and cartons, with custom packaging available per customer requirements.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
