LC-LC GYFJH 2 Core Outdoor Protected Branch Cable UPC/APU LSZH
LC-LC GYFJH 2 Core Outdoor Protected Branch Cable UPC/APU LSZH
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
LC-LC GYFJH 2 Core Outdoor Protected Branch Cable
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
LC-LC GYFJH 2Core Outdoor Protected Branch Cable
End face type :
UPC and APC
Fiber type :
SM（G652、G655、G657）；MM（OM1-OM5）
Cable Diameter :
7.0mm
Insertion loss :
≤ 0.3 dB
Return loss :
UPC SM≥50dB 、APC SM≥ 60 dB、 PC MM ≥ 35 dB
Repeatability :
≤ 0.1
Tensile strength :
>70N
Operating Temperature :
-20℃~70℃
Storage Temperature :
-40℃~80℃
Outer Sheath Material :
LSZH
Bending radius（Static/Dynamic） :
10D/20D
Length :
5M or Customized
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
LC-LC GYFJH 2Core Outdoor Protected Branch Cable UPC/APU LSZH

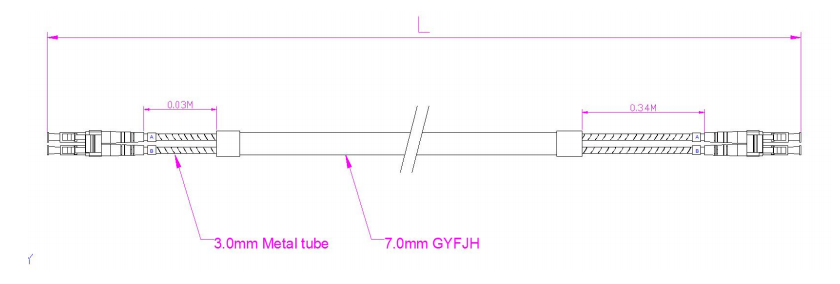

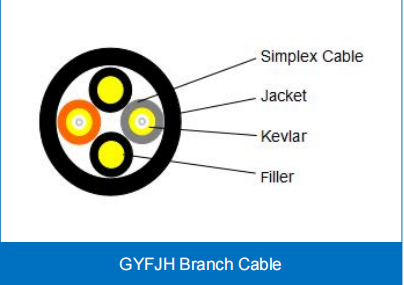

The base station pulls the fiber optic jumper line, uses the GYFJH 7.0mm LSZH black pull the fiber optic cable, the two ends are in the form of the branch sleeve armor tube, wears the number ring mark and adds the LC fiber optic connector.
Product Applications
  • FTTA
  • Active device termination
  • Telecommunication networks
  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)
  • Meet various requirements of market and clients
Product Features
  • Low insertion loss and High reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard:Telcordia GR-326-CORE
Product Specifications
End face type UPC/APC
Fiber type SM(G652,G655,G657)；MM(OM1-OM5)
Cable Diameter1.2
7.0mm
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength >70N
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material
LSZH
Bending radius(Static/Dynamic) 10D/20D
Length 5M or customized

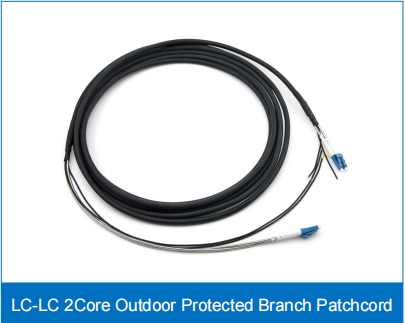

Product Picture
LC-LC GYFJH 2 Core Outdoor Protected Branch Cable UPC/APU LSZH
LC-LC GYFJH 2 Core Outdoor Protected Branch Cable UPC/APU LSZHLC-LC GYFJH 2 Core Outdoor Protected Branch Cable UPC/APU LSZH
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
