Outdoor Waterproof Optical Cable PE/AT 2-12F
Outdoor Waterproof Optical Cable PE/AT 2-12F

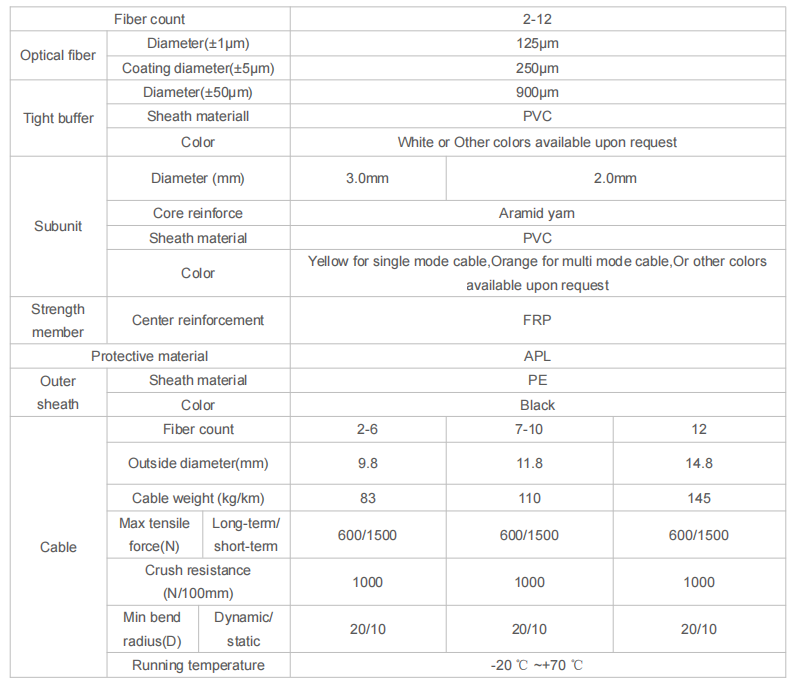

Specifications
Product Name :
Outdoor Waterproof Optical Cable
Fiber count :
2-12
Optical fiber Diameter(±1µm) :
125μm
Optical fiber Coating diameter(±5µm) :
250μm
Subunit Diameter (mm) :
2-3mm
Core reinforce :
Aramid yarn
Protective material :
APL
Sheath Sheath material :
PE/AT
Color :
Black
Span(M) :
50M
Operation Temperature :
-20℃~70℃
Fiber Brand :
Corning, YOFC, OFS, Draka
Brand Name :
DF/OEM/Nuetral
Model Number :
Outdoor Waterproof Optical Cable
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, /Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Description
Outdoor Waterproof Optical Cable PE/AT 2-12F
Outdoor Waterproof Optical Cable PE/AT 2-12F GJA waterproof optical cable uses simplex cable (Φ900µm tight buffer fibre, aramid yarn as strength member) as subunit. A fibre reinforced plastic (FRP) or Steel wire locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Outdoor Waterproof Optical Cable Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor any purpose cable distribution
  • Interconnect from outdoor to indoor for optical cable distribution equipment
Outdoor Waterproof Optical Cable Features
  • Adopt a tight sleeve optical fiber for easy stripping
  • Stranded strength member structure ensure the cable endure larger tensile strength
  • The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc
  • APL moisture barrier
  • Meet various requirements of market and clients

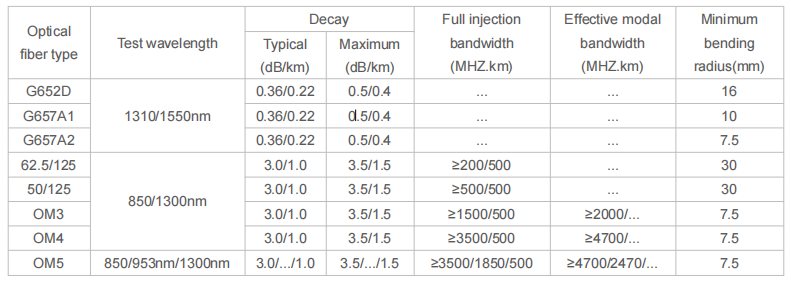

Outdoor Waterproof Optical Cable Parameter and Properties
Optical fiber type Test wavelength Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km) Minimum bending radius(mm)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... 16
G657A1 1310/1550nm 0.36/0.22 0.5/0.4 ... 10
G657A2 1310/1550nm 0.36/0.22 0.5/0.4 ... 7.5
62.5/125 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 30
50/125 850/1300nm 3.0/1.0 3.5/1.5 ≥500/500 30
OM3 850/1300nm 3.0/1.0 3.5/1.5 ≥1500/500 7.5
OM4 850/1300nm 3.0/1.0 3.5/1.5 ≥3500/500 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 7.5

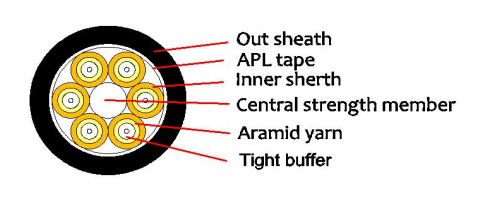

Outdoor Waterproof Optical Cable Structure
Outdoor Waterproof Optical Cable PE/AT 2-12F
Other Requirements
  • Length of production optical cable: 2000M
  • Optical cable outer sheath printing specifications, such as:
    OPTICAL FIBER CABLE GJA 12C 14.8 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time! Outdoor Waterproof Optical Cable PE/AT 2-12F
