100GHz Dense Wavelength Division Multiplexer
100GHz Dense Wavelength Division Multiplexer
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
100GHz Dense Wavelength Division Multiplexer
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
100GHz Dense Wavelength Division Multiplexer
Operating Wavelength (nm) :
ITU 100 GHz Grid
Center wavelength Accuracy(nm) :
±0.05
Channel Spacing (GHz) GHz) :
100
Insert Loss :
≤1.6 ≤2.5 ≤3.5
Isolation (dB) :
>30
Return Loss(dB) :
>45
Directivity(dB) :
>50
Operating Temperature :
-5~+75
Maximum Power Handling(mW) :
500
Package dimension (mm) :
L140xW100xH15(9CH~18CH Module) 、19 1U Rack
Warranty :
1 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
100GHz Dense Wavelength Division Multiplexer
Product Overview

The 19 Inch 1U Rack CWDM/OADM is a high-performance fiber optic solution designed for efficient wavelength division multiplexing applications in telecommunications and network infrastructure.

Applications

  • Channel Add/Drop

  • DWDM Network

  • Fiber Optical Amplifier

Key Features
  • Low Insertion Loss
  • Wide Pass Band
  • High Channel Isolation
  • High Stability and Reliability
Technical Specifications
Parameter 4 Channel 8 Channel 16 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength(nm) ITU 100 GHz Grid
Center wavelength Accuracy(nm) ±0.05
Channel Spacing (GHz) GHz) 100
Channel Passband (@-0.5dB bandwidth) (nm) ≥0.22
Insertion Loss ≤1.6 ≤2.5 ≤3.5
Channel Uniformity ≤0.6 ≤1.0 ≤1.5
Channel Ripple 0.3 0.3 0.3
Isolation Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Insertion Loss Temperature Sensitivity (dB/℃) ≤0.005
Wavelength Temperature Shifting℃) <0.002
Polarization Dependent Loss(dB) <0.1
Polarization Mode Dispersion(PS) <0.1
Directivity(dB) >50
Return Loss(dB) >45
Maximum Power Handling( mW) 500
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85

Package dimension(mm)

1. Package dimension(mm)

2. L140xW100xH15(9CH~18CH Module)

3. 19 1U Rack

Above specifications are for device without connector.

Product Information
Configuration Channel No. Channel

Pigtail Type

 Fiber length Dimension (mm) Connector

M=Mux D=Demux

04=4 Channel 08=8 Channel 16= 16 Channel N=N Channel

……

C20= 1561.42nm C21= 1560.61nm

……

0=250um 1=900um 2=2.0mm 3=3.0mm

1= 1m

2= 1.5m 3=others

1= L100 x W80

xH10

2=L140xW100xH

15

3= 19 1U Rack

0=None

1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others
Product Images

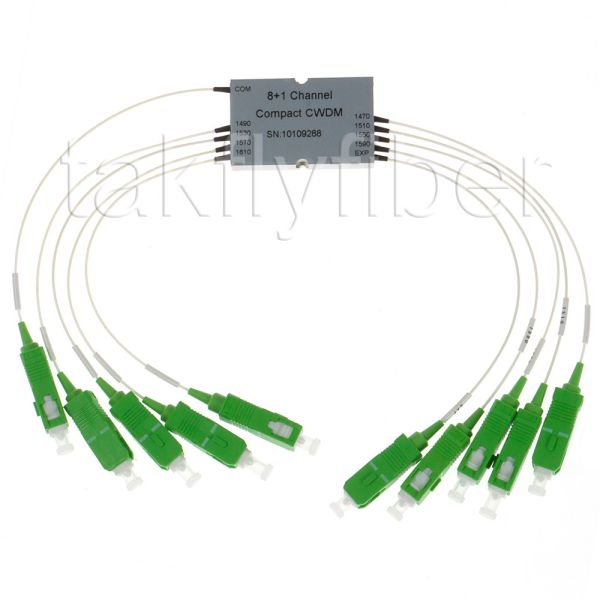

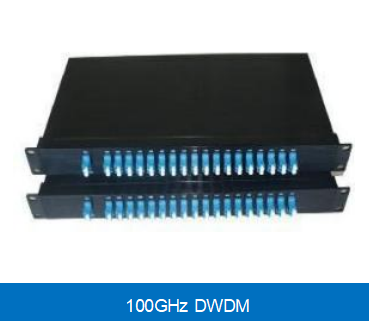

100GHz Dense Wavelength Division Multiplexer
Why Choose TAKFLY
  • 25+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
100GHz Dense Wavelength Division Multiplexer
If you're interested in our products or have any questions, feel free to contact us at any time!
Send your message to this supplier
Send Now

100GHz Dense Wavelength Division Multiplexer

Ask Latest Price
Product Detail
Brand Name :
DF/OEM/Nuetral
Model Number :
100GHz Dense Wavelength Division Multiplexer
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Contact Supplier
100GHz Dense Wavelength Division Multiplexer

TAKFLY COMMUNICATIONS CO., LTD.

Verified Supplier
6 Years
shenzhen
Since 2000
Business Type :
Manufacturer
Main Products :
MPO MTP, WDM Mux Demux, Fiber Optic PLC Splitter
Total Annual :
3500000-4000000
Employee Number :
200~300
Certification Level :
Verified Supplier
