FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-3.0-TPU-SA-SA-20M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
100PCS
Price :
US$0.01~4.99/PC
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
10000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Export Standard Packing
Product Name :
Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
Intertion Loss :
≤0.3dB
Return Loss :
APC SM ≥ 60dB
Fiber Type :
OS2, G652D , G657A1 , G657A2 , G657B3
Diameter :
3.0mm
Connector Type :
APC
Jacket Material :
TPU
Color :
Black
Wavelength :
1310nm,1550nm
Length :
20M or Customized
Operation Temperature :
-20℃~70℃
Fiber Diameter :
9/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Production Capcity :
10000PCS/Day
Description

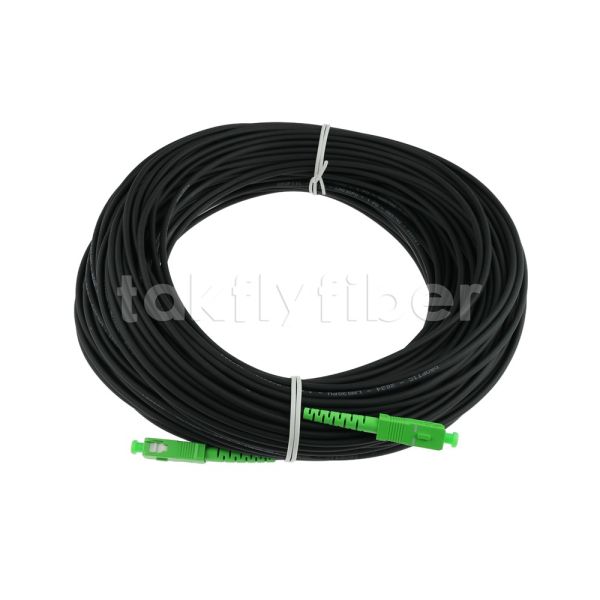

FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SC/APC to SC/APC SM G657B3

This ultra bending insensitive single-mode optical fiber BendCom® G.657.B3 features outstanding bending performance, especially at 5 mm bending radius. The optimized refractive index profile distribution ensures full compatibility with G.657.A2 fiber, making it the ideal solution for fiber-to-the-home (FTTH) applications.

How to Order Optical Fiber Patch Cord
  • Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  • Mode type: single mode (UPC and APC) / multi mode (PC)
  • Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  • Coating material: PVC / LSZH
  • Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
  • Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  • Patch cord length: customized to your requirements
  • For MPO/MTP connectors: specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
3.0mm TPU Fiber Optic Patch Cord Specifications
ParameterSpecification
End face typeSC/APC-SC/APC
Fiber typeSM G657A2 colored with red color
Cable Diameter3.0±0.2mm
Insertion loss≤0.25dB for ≥97% of connections
Return lossAPC≥60dB
Repeatability≤ 0.1
Durability≤ 0.2dB
Interchangeability≤ 0.2dB
Tensile strength>70N
Operating Temperature-20℃~70℃
Storage Temperature-40℃~80℃
Outer Sheath MaterialBlack
Bending radius (Static/Dynamic)10D/20D
Length3M, 7M, 50M, 100M, or customized
Fiber Parameters
No.ItemUnitSpecification (G657B3)
1Mode Field Diameter @1310nmμm8.2~9.0
Mode Field Diameter @1550nmμm9.1~10.1
2Cladding Diameterμm125±0.7
3Cladding Non-Circularity％≤0.7
4Core-Cladding Concentricity Errorμm≤0.5
5Coating Diameterμm245±5
6Coating Non-Circularity％≤6.0
7Cladding-Coating Concentricity Errorμm≤12
8Cable Cutoff Wavelengthnmλcc ≤1260
9Attenuation @1310nmdB/KM≤0.36
Attenuation @1550nmdB/KM≤0.25
10Macro-Bending Loss @1550nmdB≤0.08
Macro-Bending Loss @1265nmdB≤0.25
Cable Dimensions and Construction
ComponentDescription
Optical FiberFiber count: 1, Color: Red
Tight Buffer FiberMaterial: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm
Strength MemberMaterial: Aramid yarn
Outer JacketMaterial: TPU, Diameter: 3.0±0.2 mm, Color: Black
Application Scenarios
  • FTTH (Fiber to the Home)
  • Home applications such as invisible fiber optic cable
  • Occasions with special requirements for bending radius
Features
  • Simple structure, light weight and high tensile strength
  • Special groove design for easy stripping and splicing, simplified installation and maintenance
  • Two parallel steel wires ensure tensile strength
  • Crush resistance and flexibility
  • Low smoke zero halogen and flame retardant sheath, environmentally friendly and secure
FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3 FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3

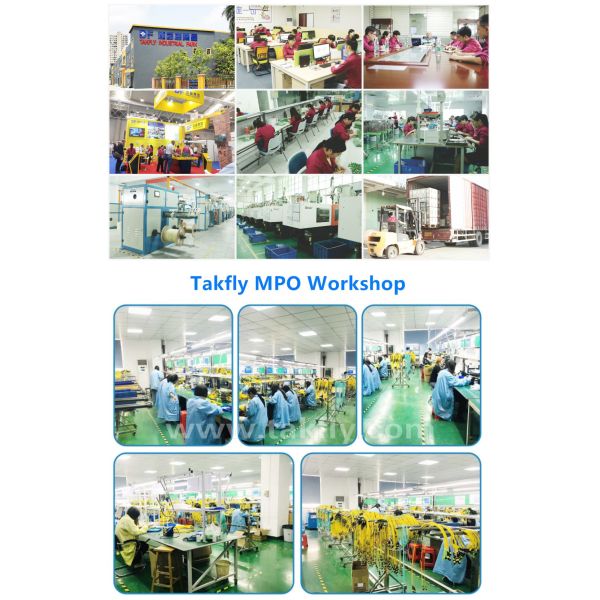

Why Choose TAKFLY - Our Advantages
  • Professional Manufacturer: Over 25 years experience in fiber optic products with one-stop purchasing
  • Expert Team: 450+ assembly workers, 26+ R&D Engineers
  • Advanced Equipment: 16 German injection machines, 10+ cable production lines
  • Comprehensive Testing: 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • OEM Services: Custom branding available
  • Global Presence: Worldwide exhibitions including OFC, ECOC, CommunicAsia
  • 24/7 Support: Comprehensive after-sales services
Quality Control
  • Raw material inspection before production
  • Full inspection after each process
  • Comprehensive finished product inspection
  • Pre-shipping quality verification
Delivery & Shipping
  • Samples: 1-3 working days
  • Mass Production: 3-7 working days
  • Packaging: Plastic bag, carton, and pallet options
  • Shipping Methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days), Sea or Air freight
Payment Terms

T/T, Paypal, Western Union, and L/C available. Competitive pricing for large quantities.
