Fiber Optic PLC Splitter specification
Fiber Optic PLC Splitter specification
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
Fiber Optic PLC Splitter
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Fiber Optic PLC Splitter specification
Operating Wavelength(nm) :
1260 ~ 1650
Type（1*N） :
1*2 1*4 1*8 1*16 1*32 1*64
Max.Insertion Loss（dB） :
3.9 7.2 10.3 13.5 16.8 20.3
Min.Return Loss（dB） :
55
Fiber Type :
ITU-T G657A1 , G657A2 and G.652D
Max.Temperature Stability（dB） :
0.5( Typical 0.3 )
Operating Temperature（℃） :
-40 ~ +85
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Fiber Optic PLC Splitter specification

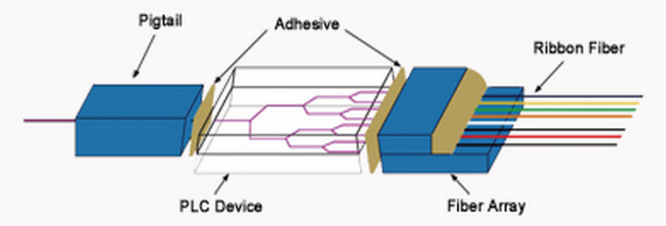

PLC-Planar Lightwave Circuit Splitter is a kind of power splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into fiber or two fibers.
Applications

  • Telecommunication sector

  • PON Syster

  • FTTH

  • CATV

  • Video Transmission

Product Features

  • Broadband Operation Wavelength

  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • High Reliability and Stability

Specification

Item Parameter
Operating Wavelength(nm) 1260 ~ 1650
Type(1*N) 1*2 1*4 1*8 1*16 1*32 1*64
Max.Insertion Loss(dB) 3.9 7.2 10.3 13.5 16.8 20.3
Max.Uniformity(dB) 0.8 0.8 0.8 1.0 1.5 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5
Type(2*N) 2*2 2*4 2*8 2*16 2*32 2*64
Max.Insertion Loss(dB) 4.2 7.5 10.6 13.9 17.2 20.8
Max.Uniformity(dB) 0.8 1.0 1.2 1.5 1.8 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5
Fiber Type ITU-T G657A1 , G657A2 and G.652D
Max.Temperature Stability(dB) 0.5( Typical 0.3 )
Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +85

All measurement are made at room temperature, and connectors not included

Splitter Packaging Type and Dimension

Package type Unit(mm) 1*2 1*4 1*8 1*16 1*32 1*64
Basic Packagin Metel box L×W×H 40*4*4 40*4*4 40*4*4 50*7*4 60*7*4 60*12*4
Mini Module Packagin Metel box 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Module Packagin Plastic box 100*80*10 100*80*10 100*80*10 120*80*18 120*80*18 140*115*18
Package type Unit(mm) 2*2 2*4 2*8 2*16 2*32 2*64
Basic Packagin Metel box L×W×H 60*7*4 60*7*4 60*7*4 60*7*4 60*7*4 80*12*4
Mini Module Packagin Metel box 70*7*4 70*7*4 70*7*4 80*12*4 80*20*6 100*40*6
Module Packagin Plastic box 100*80*10 100*80*10 100*80*10 120*80*18 120*80*18 140*115*18

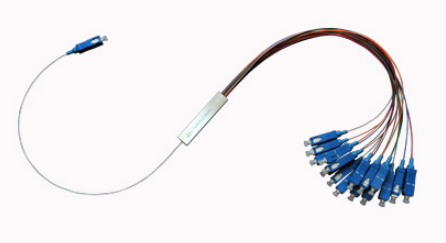

Product Picture

Fiber Optic PLC Splitter specification

Fiber Optic PLC Splitter specification

Why Choose TAKFLY
  • 25+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
