PANDA PM High Performance Polarization Maintaining Fibers
PANDA PM High Performance Polarization Maintaining Fibers
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
PANDA PM High Performance Polarization Maintaining Fibers
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, /Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
PANDA PM High Performance Polarization Maintaining Fibers
wavelength nm :
1550-410
Cutoff Wavelength :
1300-1440、330-400
Maximum Attenuation (dB/km) :
0.5 1.0 1.0 2.5 3.0 12 30 ≤ 50
Mode-field Diameter (μm) :
10.5 ± 0.5 9.8 ± 0.5 9.0 ± 0.5 6.6 ± 0.5 5.5 ± 0.5 4.5 ± 0.5 4.5 ± 0.5 3.5 ± 0.5
Beat Length Range (mm) :
3.0-5.0 2.8-4.7 2.5-4.0 1.5-2.7 1.0-2.0 ≤ 2.0 ≤ 2.0 ≤ 1.7
Maximum Cross Talk @ 100 m (dB) :
-30
Typical Cross Talk @ 4 m (dB) :
-40
Operating Temperature :
-40 to +85
Standard Lengths* :
100 m, 200 m, 300 m, 400 m, 500 m, 1 km
Proof Test (kpsi) :
100 (200 optional)
Warranty :
1 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
PANDA PM High Performance Polarization Maintaining Fibers
Product Overview

PANDA PM Specialty Optical Fibers are engineered with superior polarization maintaining properties, establishing the industry standard worldwide. These fibers deliver low attenuation and exceptional birefringence for high-performance applications.

Available across a broad spectrum of standard operating wavelengths up to 1550 nm, with various coating designs, PANDA PM Specialty Fibers are optimized for high-performance polarization retaining applications. This field-proven fiber supports growing applications and maintains performance across wide temperature ranges.

The PANDA PM Specialty Optical Fiber design incorporates two stress applying parts to create extremely high birefringence, resulting in fiber with outstanding polarization maintaining properties. This innovative design was invented and patented by Corning Incorporated, with Corning maintaining a manufacturing partnership with Fujikura Ltd.

Applications
  • High performance transmission laser pigtails
  • Polarization-based modulators and high data rate communications systems
  • Polarization-sensitive components
  • Raman amplifiers
  • Fiber optic sensors, gyroscopes and instrumentation

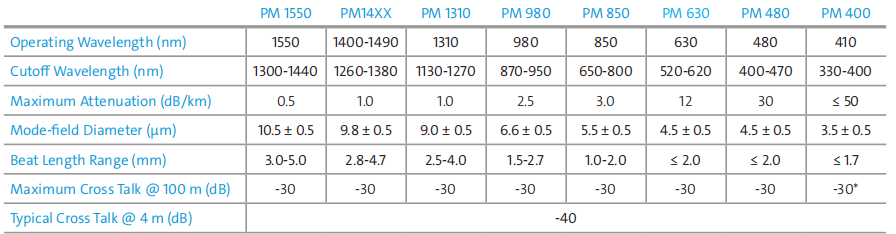

Technical Specifications
PANDA PM High Performance Polarization Maintaining Fibers
*PM 400 Cross Talk is -30dB/100 m at 410 nm and 480 nm measurement wavelengths

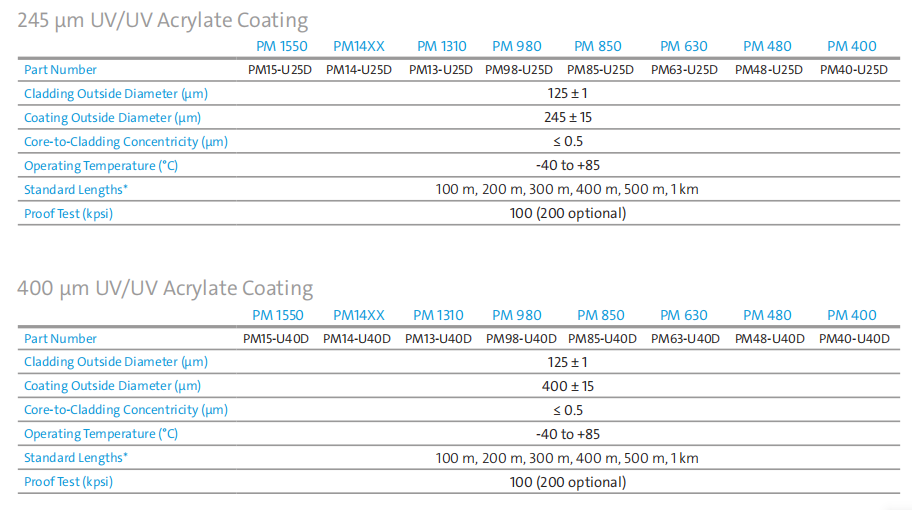

Key Geometric, Mechanical, and Environmental Specifications
PANDA PM High Performance Polarization Maintaining Fibers

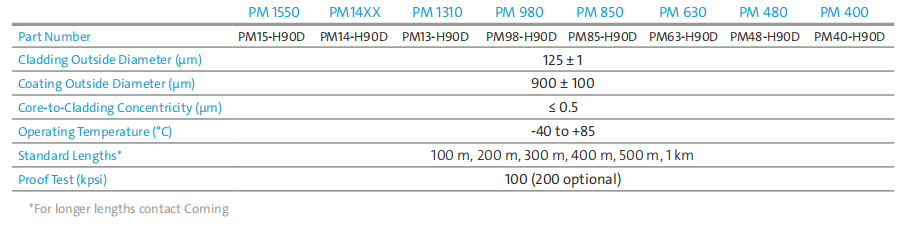

Flame Retardant Coating
PANDA PM High Performance Polarization Maintaining Fibers
Product Images
PANDA PM High Performance Polarization Maintaining Fibers PANDA PM High Performance Polarization Maintaining Fibers
Why Choose TAKFLY
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
