Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Indoor Breakout Optical Cable
Outside diameter (mm) :
3.0-12.5mm
Fiber count :
4-48
Core reinforce :
Aramid yarn
Material :
Stainless steel
Jacket Material :
LSZH/PVC
Color :
White or Customized
Wavelength :
1310nm, 1550nm
Diameter(±1µm) :
125μm
Coating diameter(±5µm) :
250μm
Operation Temperature :
-20℃~70℃
Length :
2000M or Customized
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Product Description
4-48 core branch optical cables (900ym compact buffer fiber, aramid yam is a reinforcement element, 2.0mm innelsheath) are used as a subunit A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metastrengthening, the subunit is surround FRP around, the subunit is a PVC or LSZH material sheath, and the last layer olpolyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, fiame retardant jacket.
Product Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment
Product Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Good performance of flame-retardant,low induced attenuation within the operating temperature range.
  • Meet various requirements of market and clients
Optical Parameter and Properties
Optical fiber type Test wavelength Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km) Minimum bending radius(mm)
Typical (dB/km) Maximum (dB/km)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/125 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 ... 30
50/125 3.0/1.0 3.5/1.5 ≥500/500 ... 30
OM3 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/... 7.5

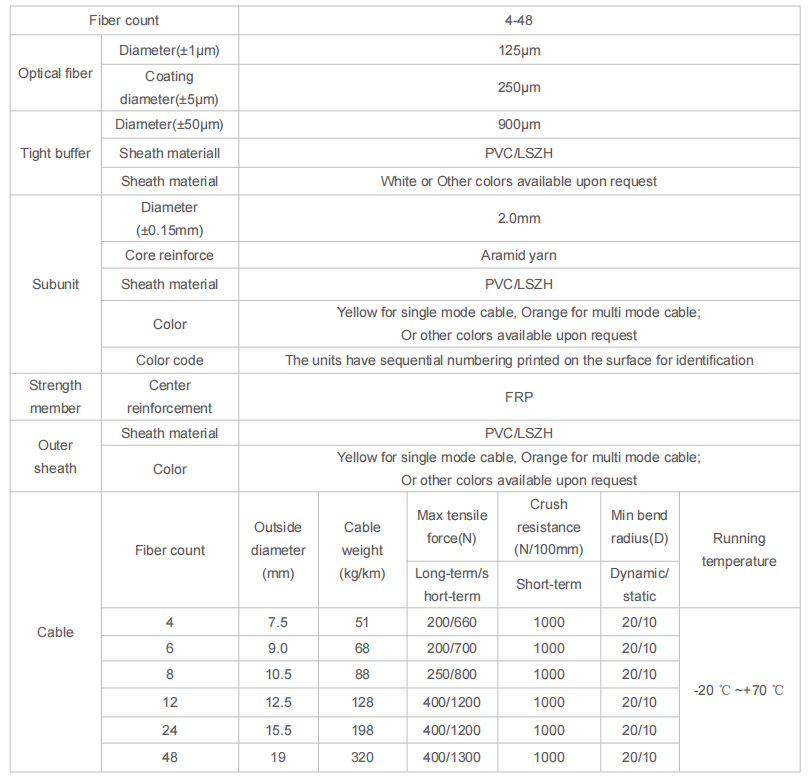

Product Structure
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Product Picture
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
