Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Indoor Bundle Optical Cable
Outside diameter (mm) :
3.0-12.5mm
Fiber count :
2-48
Core reinforce :
Aramid yarn
Material :
Stainless steel
Jacket Material :
LSZH/PVC
Color :
White&Blue or Customized
Wavelength :
1310nm, 1550nm
Diameter(±1µm) :
125μm
Coating diameter(±5µm) :
250μm
Operation Temperature :
-20℃~70℃
Length :
2000M or Customized
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
Product Description
2-48 core beam optical cable uses Φ900μm compact fiber as the optical transmission medium, and the coated aramid yarn is used as a force strengthening unit. The outermost layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) jacket.
Product Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment
Product Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Multi-core number and small outer diameter, non-metal center strengthening structure;
  • Good performance of flame-retardant,low induced attenuation within the operating temperature range.
  • Meet various requirements of market and clients
Optical Parameter and Properties
Optical fiber type Test wavelength Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km) Minimum bending radius(mm)
Typical (dB/km) Maximum (dB/km)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/125 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 ... 30
50/125 3.0/1.0 3.5/1.5 ≥500/500 ... 30
OM3 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/... 7.5

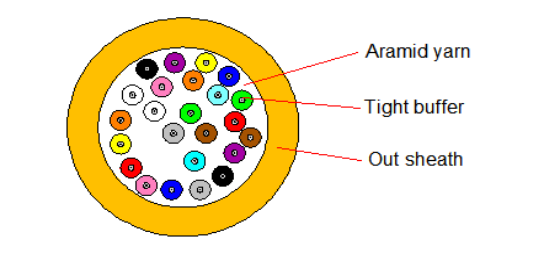

Product Structure
Fiber count 2-48
Optical fiber Diameter(±1µm) 125µm
Coating diameter(±5µm) 250µm
Tight buffer Diameter(±50µm) 900µm
Sheath materiall PVC/LSZH
Color White or Other colors available upon request
Strength member Core reinforce Aramid yarn
Outer sheath Sheath material PVC/LSZH
Color

Yellow for single mode cable, Orange for multi mode cable;

Or other colors available upon request
Cable Fiber count Outside diameter(mm) Cable weight (kg/km) Max tensile force(N) Crush resistance (N/100mm) Min bend radius(D) Running temperature
Long-term/ short-term Short-term Dynamic/ static -20 ℃ ~+70 ℃
2 3.0 9 60/120 1000 20/10
4 4.8 22 80/150 1000 20/10
6 5.2 25 80/150 1000 20/10
8 5.5 27 100/300 1000 20/10
10 5.6 30 150/450 1000 20/10
12 6.0 35 200/600 1000 20/10
24 8.0 60 250/700 1000 20/10
36 10.0 90 300/800 1000 20/10
48 12.5 120 500/1200 1000 20/10
Product Picture
Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
