Armored Fiber Patch Cable Single Armored PVC/LSZH
Armored Fiber Patch Cable Single Armored PVC/LSZH
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-SC/UPC 0.9mm
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Armored Fiber Patch Cable
Intertion Loss :
≤0.3dB
Return Loss :
APC SM≥ 60 dB MM≥35dB
Cable Diameter :
3.0mm
Connector Type :
LC/APC
Jacket Material :
Single Armored
Color :
Blue or others
Cable Material :
Stainless steel tube, PVC/LSZH
Bend Radius :
40mm
Operation Temperature :
-40℃～+75℃
Fiber Diameter :
50/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Description

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1

Description:
Armored fiber cable with build-in metal armor can provide stronger protection of the optical fibers than
standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most
hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing
rodents.

Features:

  • Connector type SC, LC,FC,ST,E2000 etc. is optional
  • Stainless steel tube provides good protection against physical damage.
  • Single mode and Multimode; Simplex or Duplex
  • Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
  • Custom order length
  • Cable out Jacket: PVC,LSZH,OFNP,OFNR etc.
  • All parts compliant with ROHS
  • IEC standard compatible
  • GR-326-CORE Compliant

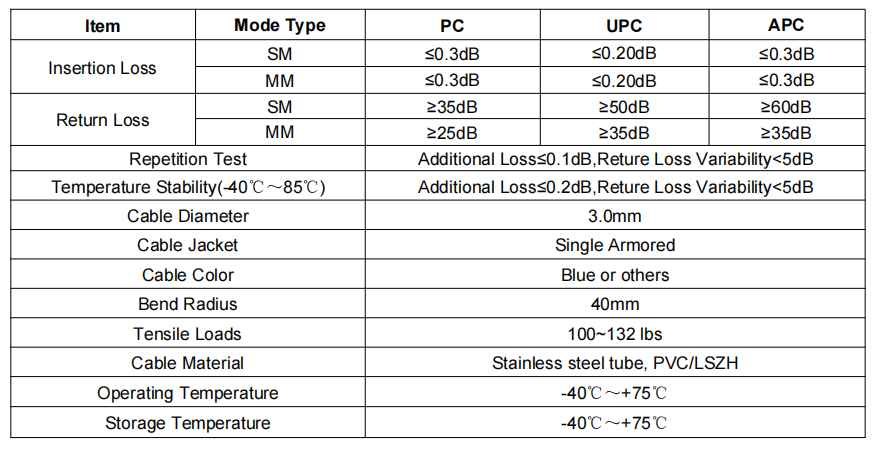

Parameter:

Armored Fiber Patch Cable Single Armored PVC/LSZH

Why choose TAKFLY--Advantages as follows:

Professional manufacturer:

  • With more than 25 years manufacturing experience in Fiber optic products;
  • More than 500 assembly workers with 5 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Source Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

If you’re interested in our products or have any doubt, feel free to contact me at any time!
