EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
EC-EC Simplex Patch cord
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
EC-EC Simplex Patch cord
Intertion Loss :
≤0.3dB
Return Loss :
UPC SM ≥50dB 、APC SM ≥ 60dB 、UPC MM ≥ 35dB
Cable Diameter :
2.0、3.0 or customized (Simplex/duplex)
Fiber Type :
SM (G652、G655、G657); MM (OM1-OM5)
Jacket Material :
PVC、LSZH、TPU
Color :
Blue or others
Cable Material :
Stainless steel tube, PVC/LSZH
Bend Radius :
10D/20D
Operation Temperature :
-20℃~70℃
Fiber Diameter :
50/125
Tensile Strength :
>70N
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Description
EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
EC-EC Simplex Patchcord Describe:
EC-EC Simplex Patch cord is the cable with both ends terminated with two fiber optic EC connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
EC-EC Simplex Patchcord Application:
  • CATV
  • Telecommunication network
  • Active device termination
  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)
EC-EC Simplex Patchcord Features:
  • Connector type SC, LC, FC, ST, E2000 etc. is optional
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard:Telcordia GR-326-CORE
EC-EC Simplex Patchcord Parameter:
End face type UPC and APC
Fiber type SM(G652 / G655 / G657)；MM(OM1-OM5)
Cable Diameter 2.0/3.0mm or customized
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength 0.9mm cable>5N；2.0/3.0mm cable>70N
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC/LSZH or Customized
Bending radius(Static/Dynamic) 10D/20D
Length Customized

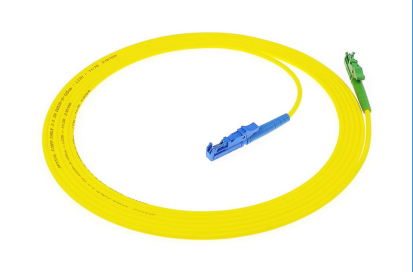

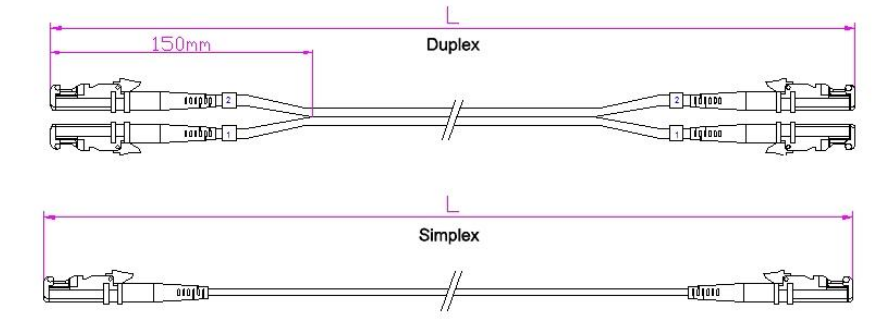

EC-EC Simplex Patchcord Picture
EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPUEC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
Why choose TAKFLY - Advantages as follows:
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products;
  • More than 500 assembly workers with 5 years experienced;
  • More than 10 R & D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;
Delivery:
  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

If you're interested in our products or have any doubt, feel free to contact me at any time!
