Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Outside diameter (mm) :
3.0mm
Fiber count :
2
Core reinforce :
Aramid yarn
Material :
Stainless steel
Diameter(±1µm) :
125μm
Jacket Material :
LSZH/PVC
Color :
White or Customized
Wavelength :
1310nm, 1550nm
Length :
2000M or Customized
Operation Temperature :
-20℃~70℃
Coating diameter(±5µm) :
250μm
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Describtion
Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, etc.
Fiber Optic Cable Applications
  • Optical fiber active connection jumper or tail fiber;
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment.
Fiber Optic Cable Features
  • The coating layer has good protection and peeling performance;
  • Tight sleeve optical fiber has good flame retardant performance;
  • Accurate geometric parameters ensure low welding loss and high welding efficiency

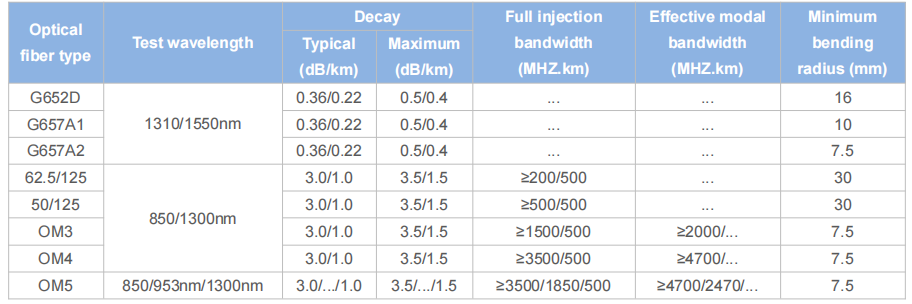

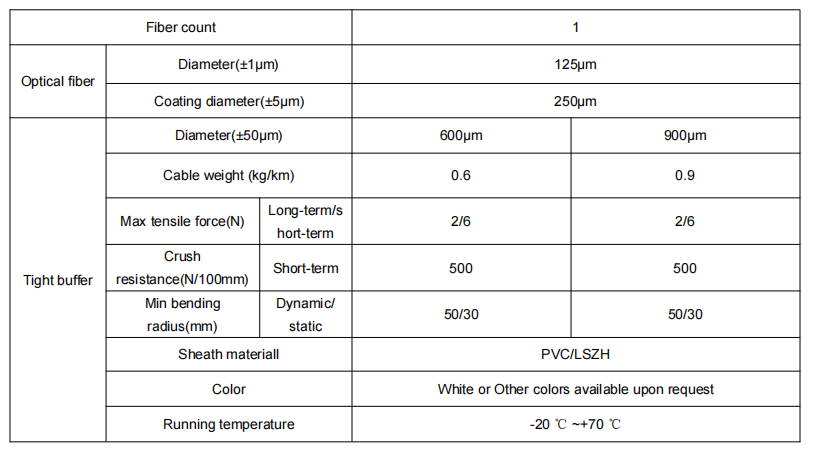

Fiber Optic Cable Parameter and Properties

Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU

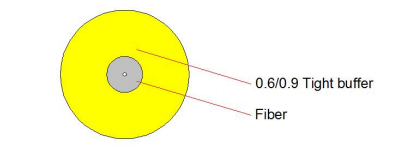

Fiber Optic Cable Structure
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Product Picture
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
