Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Indoor Flat Duplex Optical Cable
Outside diameter (mm) :
2-3.0mm
Fiber count :
2
Core reinforce :
Aramid yarn
Material :
Stainless steel
Diameter(±1µm) :
125μm
Jacket Material :
LSZH/PVC
Color :
Yellow for single mode cable, Orange for multi mode cable or Customized
Wavelength :
1310nm, 1550nm
Length :
2000M or Customized
Operation Temperature :
-20℃~70℃
Coating diameter(±5µm) :
250μm
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Describtion
Flat duplex optical cable uses Φ600µm or Φ900µm compact fiber as the optical transmission medium. The compact fiber is wrapped in a layer of aramid yarn as the strength component unit, which is made of a layer of PVC or LSZH material, It is then made of a flat layer of polyvinyl chloride (PVC) or a low-smoke halogen-free material (LSZH low-smoke, halogen-free, flame retardant) jacket.
Fiber Optic Cable Applications
  • Flat Duplex (two basic units inside) moving connection jumper or tail fiber;
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment.
Fiber Optic Cable Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Good performance of fame-retardant, low induced attenuation within the operating temperature range

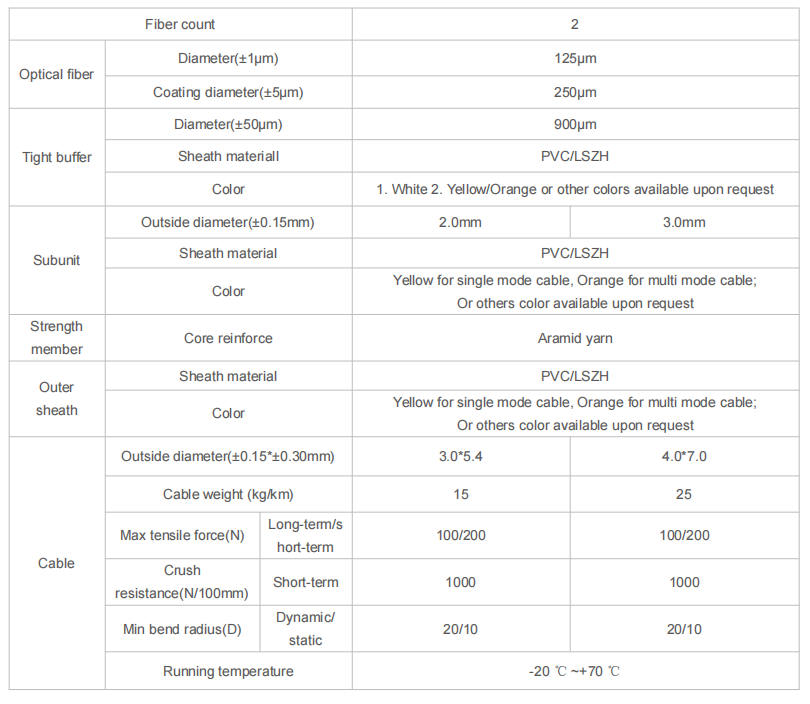

Fiber Optic Cable Parameter and Properties

Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU

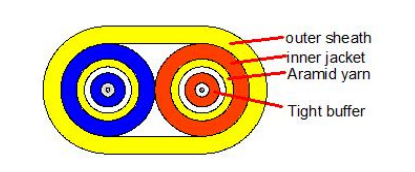

Fiber Optic Cable Structure
Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Product Picture
Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
