Specifications
Model Number :
PM Isolator & WDM Hybri
Packaging Details :
Carton
Payment Terms :
T/T,Paypal
MOQ :
1
Delivery Time :
5-9 Works depend on the QTY
Brand Name :
DF/OEM/Nuetral
Place of Origin :
ShenZhen & ZhongShan China
Price :
Can be negotiation
Supply Ability :
500PCS/Week
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Description
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
Product Overview

The PM Isolator & WDM Hybrid integrates an optical isolator and a WDM optical coupler into one compact package. This integrated design is especially useful for doped optical fiber amplifier designs and related applications.

Two WDM coupler types are available: 1480nm/1550nm and 980nm/1550nm. The 1550nm signal first passes through the isolator and is then combined with the pump laser power at the WDM coupler. The previous stage of the optical circuit is protected by the optical isolation.

Single-stage and dual-stage isolation are available. This product reduces overall cost and simplifies system structure while providing improved performance and reliability.

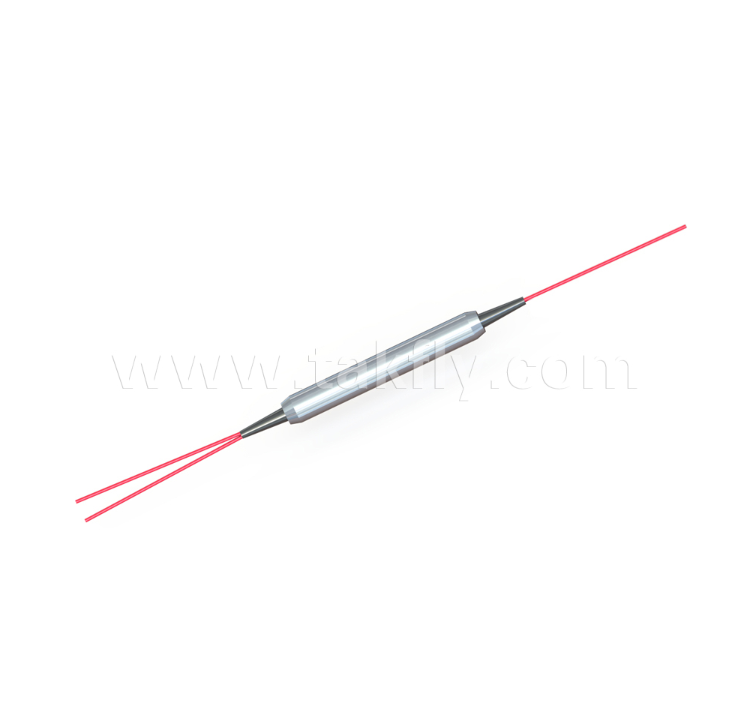

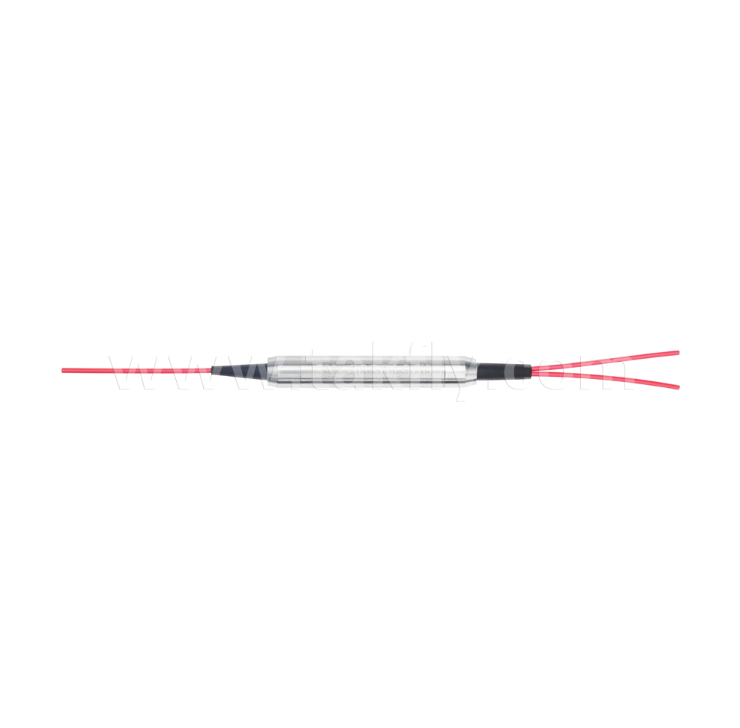

Product Images
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
Key Features
  • Low Insertion Loss – Ensures efficient signal transmission.
  • High Return Loss – Minimizes back reflection.
  • High Extinction Ratio – Maintains polarization state reliably.
  • High Isolation – Protects previous optical circuit stages.
  • High Stability and Reliability – Suitable for demanding applications.
  • Compact Integrated Package – Saves space and simplifies system design.
  • Single/Dual-Stage Isolation – Flexible options for different requirements.
Applications
  • Doped optical fiber amplifiers (EDFA)
  • Fiber lasers
  • Optical communication systems
  • Polarization-sensitive systems
  • Test and measurement

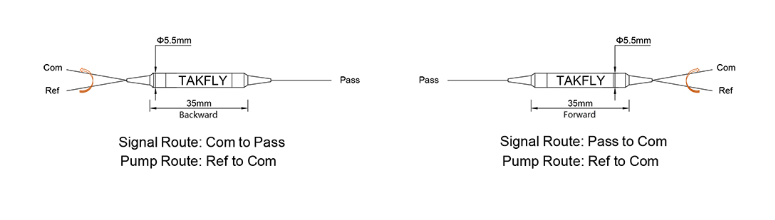

Structure Diagram
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm

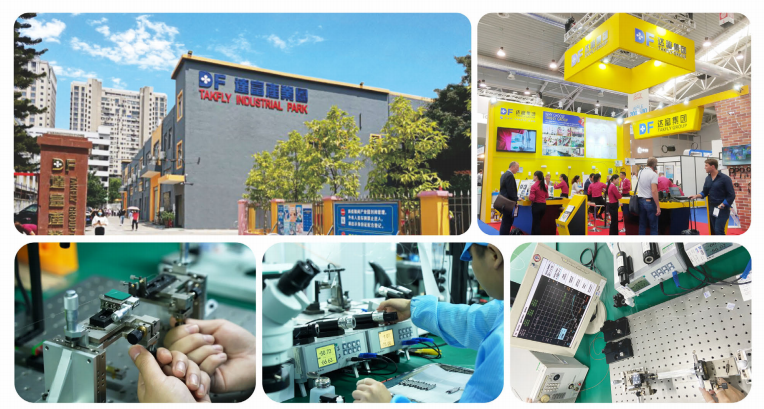

Why Choose TAKFLY?

26 years of manufacturing experience in fiber optic products.

Experienced Assembly Team

More than 80 assembly workers with 6+ years of experience.

Strong R&D Capability

More than 10 R&D engineers.

Advanced Production Equipment

16 sets of German imported injection machines and 16 production lines.

Comprehensive Testing Facilities

More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers.

OEM Branding Accepted

Custom logo and branding available.

Quality Control Process
Stage Inspection Method
Incoming inspection Spot check of raw materials before production
In-process inspection Full inspection at every individual process completion
Pre-packaging inspection Full inspection of finished products before packing
Pre-shipping inspection Spot check before shipping
Exhibition Participation & Industry Events

TAKFLY participates in leading industry exhibitions and events, including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and China.

Delivery Information
Item Details
Samples 1–3 working days
Mass production orders 3–7 working days
Packaging Plastic bag, carton, and pallet options available according to your requirements
