FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
Specifications
Model Number :
FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
Operating Temperature :
-40°C～+85 °C
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Tensile Stength: :
＜30N (＜0.2dB with impressed pressure)
Insertion Loss: :
Average value≤0.25 dB,max value≤0.4 dB Min
Packaging Details :
Blister box+Carton
Payment Terms :
Western Union,T/T,/Paypal
Fiber diameter :
Drop Cable 2.0*3.0mm
Return Loss: :
＞45dB, Typ.＞50dB ( SM fiber UPC polish)
Brand Name :
DF/OEM/Nuetral
Fiber Brand :
Corning, YOFC, OFS, Draka
Place of Origin :
China, Shenzhen
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Price :
negotiable denpend on QTY
End face polished :
UPC /APC
Supply Ability :
1000PCS/Day
Product Name :
FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
Description
FTTH Field-Assembled LC/SM UPC/APC Fiber Fast Connector for Indoor Drop Cable

The FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector is engineered for rapid, reliable fiber terminations in the field. It enables installers to terminate and connect fibers within minutes at equipment racks and fiber patch panels, delivering high installation quality, a high success rate, and long-term reliability.

FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
Field Assembly Fiber LC Connector Applications
  • FTTH and outdoor fiber terminal endpoints
  • Harsh environment deployments
  • FTTA BBU and RRU connections
  • Data and video transmission
  • Optical fiber access for mobile base stations
Field Assembly Fiber LC Connector Features
  • Factory-installed fiber stub
  • No epoxy or polishing required
  • Quick and easy field fiber termination
  • Eliminates cable excess length and pigtail splice storage
  • Cost-effective solution
  • Low insertion loss and back reflection loss
  • Extremely easy operation
  • Short operation time
Technical Parameters
Item LC
Length 45mm
Ferrules LC-SM/UPC / LC-SM/APC
Inner Diameter of Ferrules 125um
Insertion Loss AVG ≤ 0.3dB, MAX ≤ 0.5dB
Return Loss UPC ≥ 45dB / APC ≥ 50dB
Working Temperature -20 ~ +75℃
Storage Temperature -40 ~ +85℃
Mating Times 500 times
Cable Diameter Drop cable: 2.0×1.6mm / 2.0×3.0mm / 2.0×5.0mm; Round cable: 5.0mm / 3.0mm / 2.0mm / 0.9mm (0.9mm with tail)
Field Assembly Fiber LC Connector Components
FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable

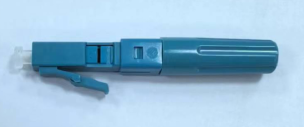

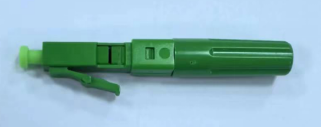

LC-SM/APC (left) and LC-SM/UPC (right) connector components

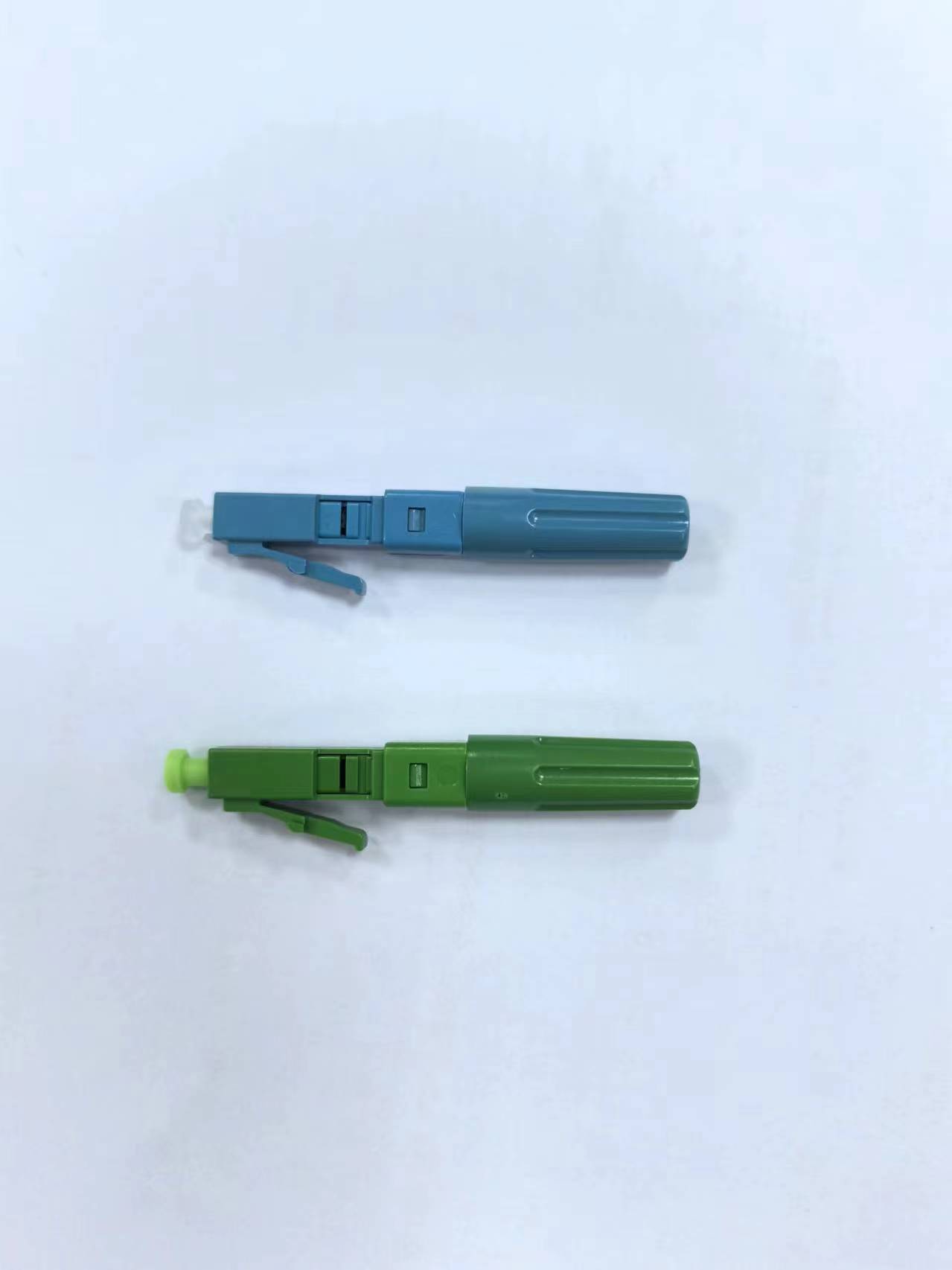

Field Assembly Fiber LC Connector Image
FTTH Field-Assembled LC/SM UPC/APC Field Installable Fiber Fast Connector For Indoor Drop Cable
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D engineers
  • 16 Germany-imported injection machines and 16 production lines
  • 30+ testing machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1–3 working days
  • Mass production order: 3–7 working days
  • Packaging: plastic bag, carton, and pallet available per request
Frequently Asked Questions

Q1: How can I get your catalogue and price list?

Please provide your email or contact information through our website for catalogue and pricing.

Q2: Can I negotiate the prices?

Yes, we consider discounts for multiple container loads of mixed goods.

Q3: How much will the shipping charges be?

Shipping charges depend on shipment size and method. We provide quotes upon request.

Q4: Can I visit you?

Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.

Q5: What if there is a quality problem when we get the goods?

If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.

Q6: What are your terms of packing?

Standard packing includes blister box and cartons. Customized packing is available per customer requirements.

Q7: What are your terms of payment?

T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.

Q8: What are your terms of delivery?

EXW, FOB, CFR, CIF, and DDU are available.

Q9: How about your delivery time?

Generally 5–7 working days after receiving advance payment. Specific timing depends on items and order quantity.

Q10: Can you produce according to the samples?

Yes, we can produce based on your samples or technical drawings.

If you're interested in our products or have any questions, feel free to contact us at any time!
