FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Specifications
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Fiber cable :
3.0*2.0mm rubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable
Operating Temperature :
-40°C～+85 °C
Model Number :
TK-FC-SCA-B001
Applicable for :
Drop cable.Indoor cable
Supply Ability :
1000PCS/Day
Tensile strength :
≥40 N
Brand Name :
DF/OEM/Nuetral
Product Name :
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Payment Terms :
Western Union,T/T,/Paypal
Return Loss :
UPC≥45dB , APC≥55dB
Price :
negotiable denpend on QTY
Insertion Loss :
≤0.35dB
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Fiber mode :
Single mode or Multi mode
Place of Origin :
China, Shenzhen
Fiber type :
G.652D, G.657A1
Packaging Details :
Blister box+Carton
Fiber Brand :
Corning, YOFC, OFS, Draka
Description

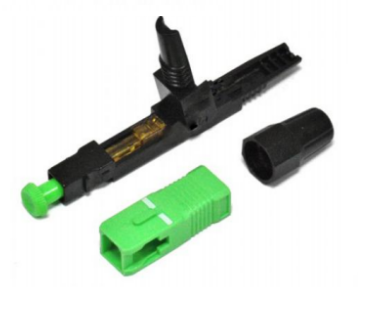

FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001
TAKFLY Mechanical Field-Mountable Fiber Optic Connector (FMC) simplifies fiber connections without requiring fusion splicing equipment. This quick-assembly connector needs only standard fiber preparation tools: cable stripper and fiber cleaver.
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Applications
  • LAN environment desk connections
  • Optical access network infrastructure
  • Fiber to the Subscriber (FTTX) applications
  • Patch panels and distribution frames
  • Direct equipment termination
  • FTTx network deployments
  • Optical equipment room wiring reconstruction
  • Data Room Transformation
Key Features
  • Factory-installed fiber stub for immediate use
  • No epoxy or polishing required
  • Quick and easy field fiber termination
  • Eliminates cable excess length and pigtail splice storage
  • Cost-effective installation solution
  • Low insertion loss and back reflection loss
  • Extremely easy operation process
  • Short operation time - approximately 15 seconds
Optical Characteristics
CategorySpecification
Applicable forDrop cable, Indoor cable
Fiber modeSingle mode or Multi mode
Fiber typeG.652D, G.657A1
Fiber cable3.0*2.0mm rubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable
Fiber diameter0.125mm
Force holds 2 x 3mm cable type≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes)
Fiber lockLock holds fiber reliability, bears hang force ≥ 3.8 N, attenuation changes ≤ 0.2 dB
Working wavelength1310 nm, 1490 nm, 1550 nm
Operation timeAbout 50 (no fiber cut)
Insertion Loss≤0.35 dB
Insertion Loss Typical value0.3 dB
Return LossUPC≥45 dB, APC≥55 dB
Fastening strength of naked fiber≥3 N
Tensile strength≥40 N
Reusable≥10 times
Operating Temperature-40℃ to +85℃
On-line tensile strength (20N)ΔIL≤0.3 dB
Mechanical durability (500 times)ΔIL≤0.3 dB
Drop-off test (4m height, 3 times)ΔIL≤0.3 dB
Environmental Performance
ConditionIL VariationRL VariationAppearance
High TEMP (110℃, 200H)≤0.5≤5No mechanical damage
Low TEMP (-40℃, 200H)≤0.5≤5No mechanical damage
TEMP Cycling (-40～85℃, 100 cycles)≤0.5≤5No mechanical damage
HAST (110℃, 90%RH, 200H)≤0.5≤5No mechanical damage
Immersion (25℃, 200H)≤0.5≤5No mechanical damage
Salt Mist (5% Nacl, 35℃, 200H)≤0.5≤5No mechanical damage
Mechanical Performance
ConditionIL VariationRL VariationAppearance
Impact (4m height, 3 cycles)≤0.5≤5No mechanical damage
Vibration (10-50Hz, 30min each axial)≤0.5≤5No mechanical damage
Torsional (15N, 200 times)≤0.5≤5No mechanical damage
Tensile (50N, 1 minute)≤0.5≤5No mechanical damage

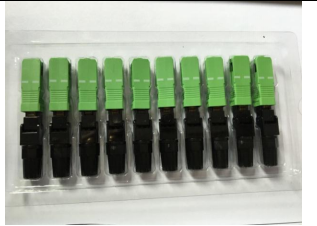

Packaging Information
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Size (CM)14.6*7.6*1.6
QTY (PCS/Box)10
N.W (KG/PCS)0.0031
N.W (KG/Box)0.0465
G.W (KG/Box)0.031
Gift Packing
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Size (CM)15.8*14.5*9.5
QTY (Blister Box/Gift Box)10
N.W (KG/Box)0.55
G.W (KG/Box)0.52
Outer Packing
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Size (CM)46*46*32.5
QTY (Gift Box/Box)30
QTY (Pcs/Box)3000
N.W (KG/Box)15.5
G.W (KG/Box)16.5
Product Image
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
Why Choose TAKFLY?
  • 26+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and 16 Production Lines
  • 30+ testing machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
