TK-6603 Optical Fiber Identifier Set | For CATV & Telecommunication & Data Networks
TK-6603 Optical Fiber Identifier Set | For CATV & Telecommunication & Data Networks
Specifications
Identified Wavelength Range :
800-1700 nm
Model Number :
TK-6603 Optical Fiber Identifier Set
Dimension :
196X30.5X27
Payment Terms :
Western Union,T/T,/Paypal
Alkaline Battery(V) :
9
Fiber Brand :
Corning, YOFC, OFS, Draka
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Operation Temperature(℃) :
-10℃～60℃
Price :
negotiable denpend on QTY
Weight :
200 g
Supply Ability :
1000PCS/Day
Product Name :
TK-6603 Optical Fiber Identifier Set | For CATV & Telecommunication & Data Networks
Brand Name :
DF/OEM/Nuetral
Signal Frequency Display (Hz) :
270, 1k, 2k
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Insertion Loss(dB, Typical Value) :
0.8 (1310nm) 2.5 (1550nm)
Place of Origin :
China, Shenzhen
Packaging Details :
Blister box+Carton
Description

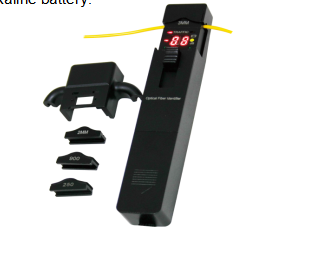

TK-6603 Optical Fiber Identifier Set
Professional tool for CATV, telecommunication, and data network maintenance with core power display (-30~+5dBm), low bending loss, and high efficiency output.
TK-6603 Optical Fiber Identifier Set | For CATV & Telecommunication & Data Networks
Product Overview
The TK-6603 Optical Fiber Identifier quickly identifies transmission direction and displays relative core power without damaging bent fibers. Audible tone activates when traffic is present.
Recognizes modulation frequencies including 270Hz, 1kHz, and 2kHz. Continuously audible tone activates during frequency detection. Includes four adapter heads: 0.25, 0.9, 2.0, and 3.0 mm. Powered by 9V alkaline battery.
Key Features
  • Easy-to-use with "ONE KEY" operation
  • Efficiently identifies traffic direction and frequency tones (270Hz, 1KHz, 2KHz) with audible warning
  • Displays relative core power
  • More accurate testing with sunshade
  • Easy-to-replace adaptors
  • Durable metal housing and quality construction
  • Low power indication
Technical Specifications
TypeTK6603
Identified Wavelength Range800-1700 nm
Identified Signal TypeCW, 270Hz±5%, 1kHz±5%, 2kHz±5%
Detector TypeØ1mm InGaAs 2pcs
Adapter TypeØ0.25 (Bare Fiber), Ø0.9 (Ø0.9 Cable), Ø2.0 (Ø2.0 Cable), Ø3.0 (Ø3.0 Cable)
Signal DirectionLeft & Right LED
Single Direction Test Range (dBm, CW/0.9mm bare fiber)-46~10 (1310nm), -50~10 (1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)-50~+10
Signal Frequency Display (Hz)270, 1k, 2k
Frequency Test Range (dBm, Average Value)Ø0.9, Ø2.0, Ø3.0: -30~0 (270Hz,1KHz), -25~0 (2KHz)
Ø0.25: -25~0 (270Hz,1KHz), -20~0 (2KHz)
Insertion Loss(dB, Typical Value)0.8 (1310nm), 2.5 (1550nm)
Alkaline Battery(V)9
Operating Temperature(℃)-10－+60
Storage Temperature(℃)-25－+70
Dimension (mm)196X30.5X27
Weight (g)200
Standard Package Contents
MODELINCLUDES
TK6603TK6603 Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case
Why Choose TAKFLY?
  • 26+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and 16 Production Lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control Process
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website for catalogue and pricing.
Can I negotiate the prices?
Yes, we consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on shipment size and method. We provide quotes upon request.
Can I visit you?
Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
What if there is quality problem when we get the goods?
If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
What is your terms of packing?
Standard packing includes blister box and cartons. Customized packing available per customer requirements.
What is your terms of payment?
T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU available.
How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Can you produce according to the samples?
Yes, we can produce based on your samples or technical drawings.
