FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
Specifications
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Tension Test :
2.0N(200gf)(Standard)
Fiber Brand :
Corning, YOFC, OFS, Draka
Model Number :
FTTx Multifunction Fiber Optic Stripper Tree Hole Toolkit
Applicable Fibers :
SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Payment Terms :
Western Union,T/T,/Paypal
Dimensions :
130(W)*135(D)*130(H)mm
Price :
negotiable denpend on QTY
Operating Conditions :
-10~+50°C(operation temperature),0~95% RH(humidity)
Supply Ability :
1000PCS/Day
Weight :
2.12kg
Brand Name :
DF/OEM/Nuetral
Product Name :
FTTx Multifunction Fiber Optic Stripper Tree Hole Toolkit For Maintenance & Installation & Troubleshooting
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Average Splice Loss :
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Place of Origin :
China, Shenzhen
Return Loss :
≥60dB
Packaging Details :
Blister box+Carton
Description
TAKFLY TKR-1898RH FTTx Fiber Optic High-Precision Digital Fusion Splicer
FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
Product Overview

The TAKFLY TKR-1898RH is a high-precision digital fusion splicer designed for FTTx applications. This advanced three-hole fiber stripper handles all routine fiber stripping operations with precision:

  • First hole: Peels 1.6-3.0 mm outer fiber jacket to 600-900 μm buffer coating
  • Second hole: Strips 600-900 μm buffer layer to 250 μm coating
  • Third hole: Removes 250 μm coating to expose 125 μm bare glass fiber
Key Features
  • 5-inch high-resolution color LCD display with position-based image rotation
  • Average splice time: 8 seconds
  • Average tube-heat time: 25 seconds
  • Automatic heat mode operation
  • Rechargeable lithium battery providing up to 200 continuous splices and heats
  • X or Y axis separate views with 360x magnification, or simultaneous 220x view
  • Advanced image processing technology
  • Fiber core alignment technology with enhanced accuracy (PAS Technology)
  • Strong wind and dust resistance capabilities
  • Automatic self-inspection: Display inspection and forward inspection
  • Cleave length: 9-16mm (∮0.25mm) and 10-16mm (∮0.9mm)
  • Splicing modes: Auto, Manual, and Full-Auto
  • Stores 6,000 groups of latest splice results
  • Patented 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber
  • Patented Multipurpose 1+N fixture system
  • 1+N configuration includes one 3-in-1 fixture plus optional fixtures for SC/LC/FC connectors
Technical Specifications
Applicable FibersSM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional)
Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss≥60dB
Tension Test2.0N(200gf)(Standard)
Typical Splicing Time10 seconds
Typical Heating Time30 seconds
Splicing Program50 groups
Protection Sleeve20mm, 40mm, 60mm
Operating LanguageChinese, English, French, Portuguese, Spanish
Operating Conditions-10 to +50°C temperature, 0-95% humidity
Power SupplyAC adaptor: 100-240V input, 50/60Hz; 12V, 5A output (DC)
Monitor5-inch high-resolution color LCD display
Fiber ImageX/Y axis separate 360x magnification or simultaneous view
Storage Capacity6,000 groups of splice results
Splicing ModelAuto, Manual & Full Auto
Optical Fiber Fixture3-in-1 cutting fixture; Multipurpose 1+N fixture
Dimensions130(W) × 135(D) × 130(H) mm
Weight2.12kg

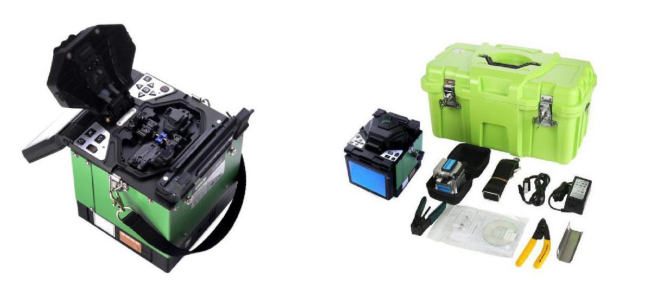

Standard Accessories
No.ItemQuantity
1Machine TKR-1898RH1
2Fiber Cleaver1
3Fiber Stripper1
4AC Adaptor (Charger)1
5Battery1
6Spare Electrodes1
7Cooling Tray1
8Instruction CD1
9Quick Reference Guide1
10Rubber-insulated wire stripping pliers1
11Rubber-insulated wire 3-in-1 cutting fixture1
12Carrying Case with Carrying Strap1

Packaging includes custom-made professional anti-shock tool kit with sponge interior and export-standard carton box with PE foam (53×32×30cm).

FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
Why Choose TAKFLY?
  • 26+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and 16 Production Lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, and more
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, and more
Quality Control
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks to ensure quality
Delivery Information

Samples: 1-3 working days

Mass Production Order: 3-7 working days

Packaging: Plastic Bag, Carton and Pallet available per request

Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.

If you're interested in our products or have any questions, feel free to contact us at any time!
