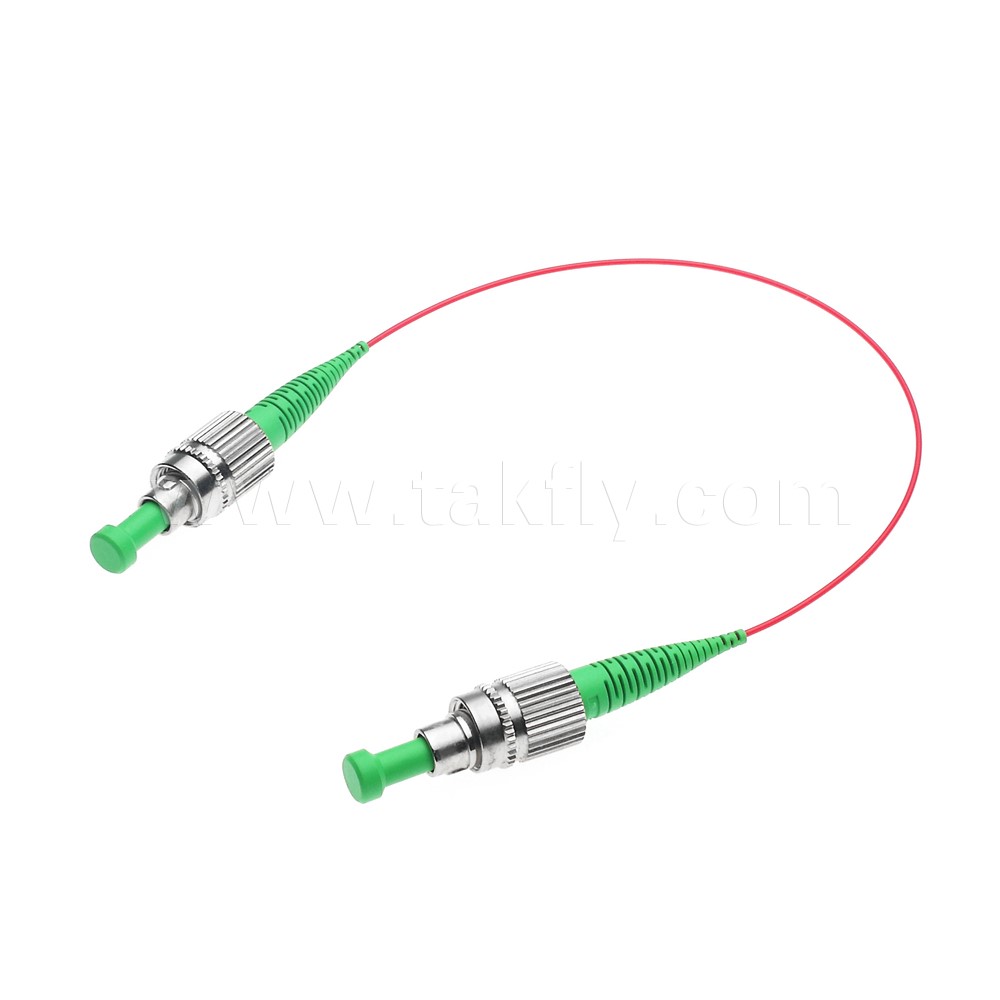

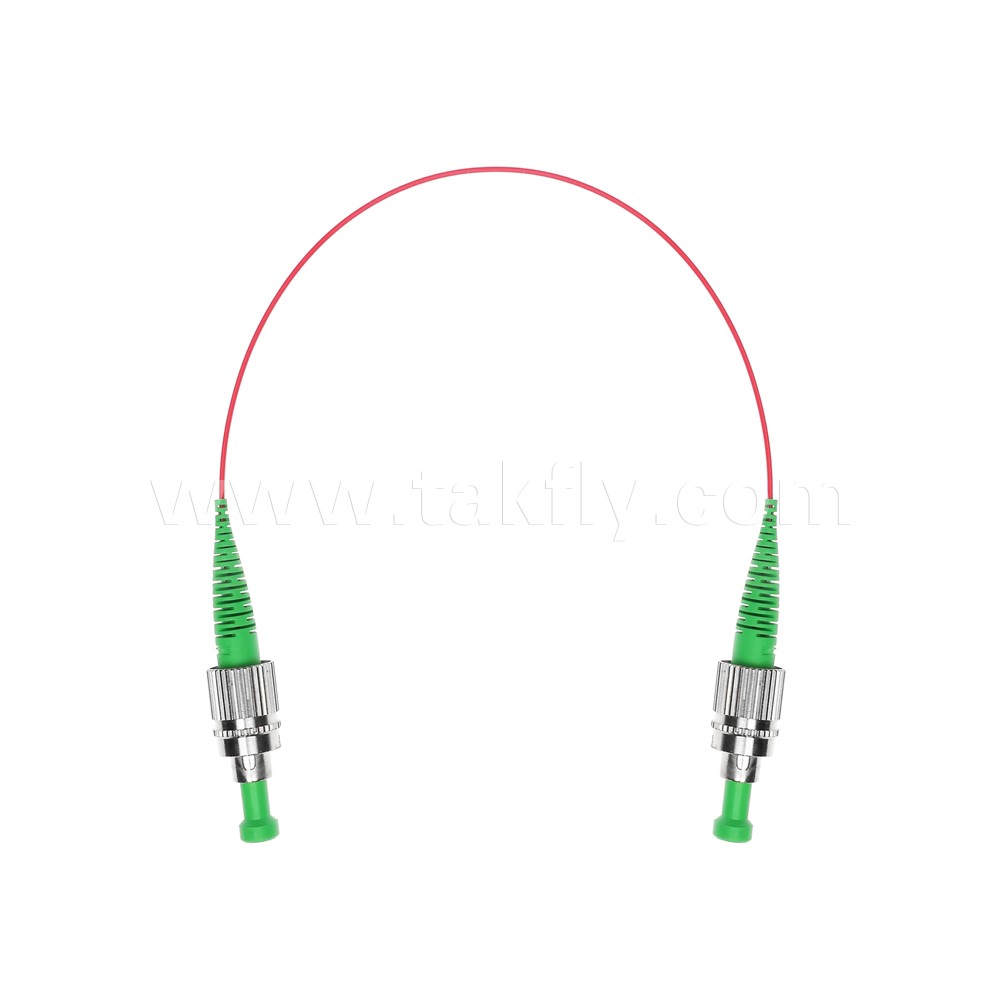

Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Specifications
MOQ :
1
Delivery Time :
5-8 working days
Customization :
Yes
Model Number :
DF-PM-PC-FC
Supply Ability :
5000pcs per month
Connector Type :
FC/APC
Brand Name :
OEM
Payment Terms :
T/T, Paypal
Price :
USD10-58/pc
Certification :
ISO, CE RoHS
Place of Origin :
China
Packaging Details :
Blister Box
Description

FC/APC 0.9mm PM Fiber Patchcord

Polarization Maintaining (PM) Patch Cable are widely used in polarization sensitive fiber optical systems for transmission of light that requires the PM state to be maintained. All the PM fiber patch cable, PM patch cable from Takfly meet or exceed industry standards for applications where polarization sensitivity is a requirement.

Our PM fiber cable, PM patchcord come in many flexible configurations, with choice of connectors. 250µm bare fiber, 900µm loose tube fiber or 3mm cable can be supplied in, and FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors are available from Takfly.

Features

1.Low Insertion Loss;
2.High Return Loss;
3.High Extinction Ratio;
4.High Stability and Reliability.

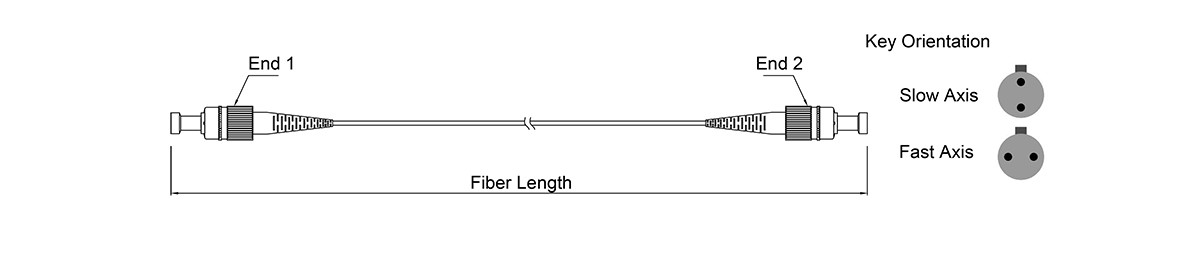

Structure Diagram

Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing

Specification

Parameter Unit Value
Connector Type -
Center Wavelength nm 1550 1310 1060 980 850 780
Max. Insertion Loss nm 0.3 0.3 0.5 0.5 0.8 0.8
Min. Extinction Ratio at 23℃ dB 23 23 23 23 22 22
Min. Return Loss UPC Type dB 50
APC Type dB 60
Fiber Type - PM Panda fiber
Key Orientation - Slow Axis
Tolerance for Axis Alignment deg ±3
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85

The default connector key is aligned to slow axis

Application

1.Optical Fiber Amplifiers
2.Test Instrument
3.Fiber Sensor
4.Research
5.Fiber Laser

Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing

Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
