Specifications
MOQ :
1
Delivery Time :
5-8 working days
Model Number :
DF-PM-Coupler
Supply Ability :
1000pcs per month
Customization :
Yes
Brand Name :
OEM
Payment Terms :
T/T, Paypal
Price :
USD15-150/pc
Certification :
ISO, CE RoHS
Place of Origin :
China
Packaging Details :
Blister Box
Description
Polarization Maintaining Fiber Optic PM Filter Coupler for ICT AI Computing
Product Overview

The Polarization Maintaining Coupler is a micro optic filter type device that provides optical signal splitting while preserving polarization with high extinction ratio. Available in a wide range of coupling ratios from 1% to 50%, and in both 1×2 and 2×2 configurations, PM couplers are widely used in fiber optic communication systems, Raman amplifiers, and other fiber instrument applications.

Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio

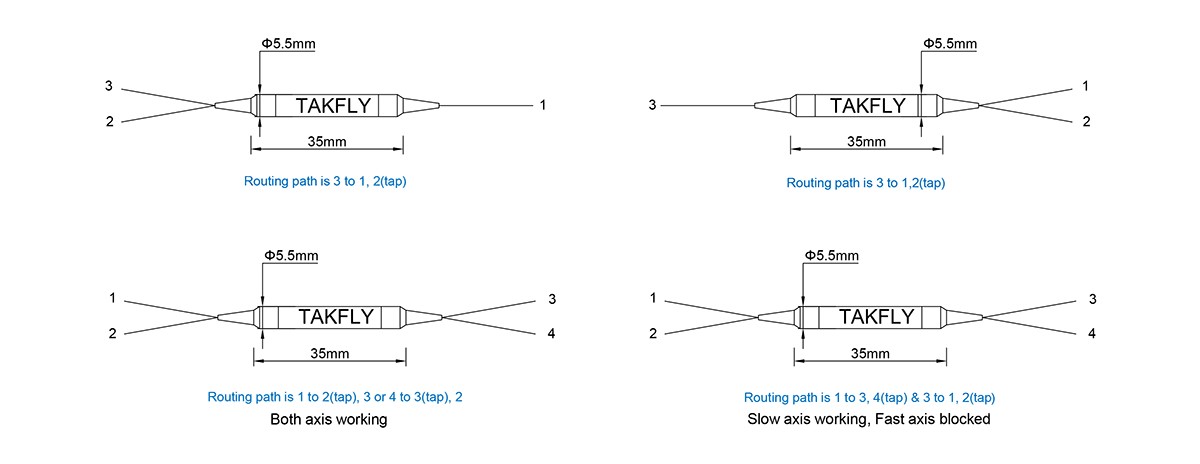

Structure Diagram
Polarization Maintaining Fiber Optic PM Filter Coupler for ICT AI Computing
Technical Specifications
Parameter Unit Value
Type - 1x2 | 2x2
Center Wavelength nm 2000 | 1550,1310 | 1064 | 2000 | 1550,1310 | 1064
Operating Wavelength Range nm ±40 | ±40 | ±20 | ±40 | ±40 | ±20
Max. Excess Loss dB 1.2 | 0.7 | 0.8 | 1.5 | 1.0 | 1.2
Uniformity (only for 50/50) dB 0.6 | 0.4 | 0.5 | 0.8 | 0.6 | 0.8
Coupling Ratio dB 01/99~50/50
Min. Extinction Ratio at 23℃ dB 18 (Both axis working) | 22 (Fast axis blocked)
Min. Return Loss dB 50
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type - Tap Port: SMF-28E, Hi1060 or PM Panda fiber
Input & Output Port: PM Panda fiber
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

* For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
* The default connector key is aligned to slow axis.

Applications
  • EDFA (Erbium-Doped Fiber Amplifier)
  • Fibre Sensor Systems
  • Fiber Instrumentation
