FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
Specifications
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Fiber Port :
FC/PC
Fiber Brand :
Corning, YOFC, OFS, Draka
Model Number :
Handheld Adjustable Light Source
Operating wavelength（nm） :
1310/1550;1310/1490/1550/1625（others specify on requests）
Brand Name :
DF/OEM/Nuetral
Product Name :
FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
Payment Terms :
Western Union,T/T,/Paypal
Outline size（mm）/weight :
180*90*45(250g)
Price :
negotiable denpend on QTY
Operation Temperature(℃) :
-10～+60
Supply Ability :
1000PCS/Day
Output Power（dBm） :
-5~-12dBm （can be adjustable）
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Applicable fiber ice Loss :
SM，MM
Place of Origin :
China, Shenzhen
Laser type :
FP-LD(others specify on requests)
Packaging Details :
Blister box+Carton
Description
FTTx Fiber Optic Handheld Adjustable Light Source
Professional handheld adjustable light source designed for SM/MM FC/PC fiber optic applications with Chinese interface support.
FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
Product Overview

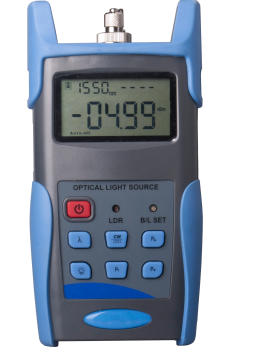

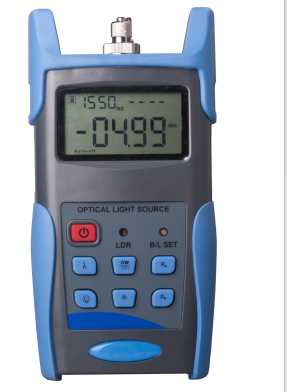

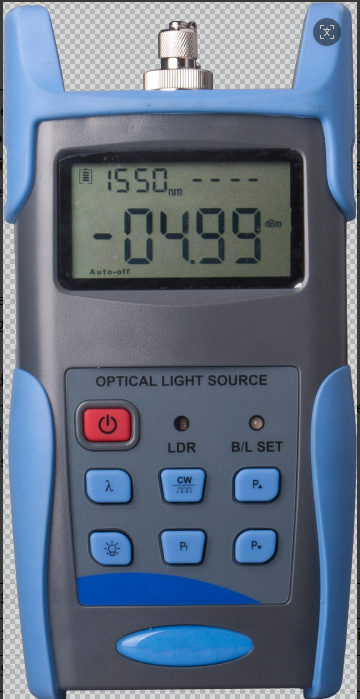

The TK-316 Handheld Adjustable Light Source is a newly designed fiber optic tester specifically engineered for fiber network installation, engineering acceptance testing, and maintenance operations. When used in combination with the 326 handheld optical power meter, it provides a rapid and precise testing solution for both single-mode and multi-mode fibers.
Key Features
  • Wave ID information transmission when paired with 326 Optical Power Meter
  • Tone generation at 270Hz, 330Hz, 1KHz, and 2KHz frequencies
  • Adjustable output power with LCD display
  • Intelligent backlight control with ambient light adjustment
  • Dual power supply: AA alkaline batteries and AC adapter
  • Low battery indication
  • Ergonomic design with superior tactile experience
Technical Specifications
Model 316
Operating Wavelength (nm) 1310/1550; 1310/1490/1550/1625 (customizable)
Applicable Fiber SM, MM
Laser Type FP-LD (customizable)
Output Power (dBm) -5~-12dBm (adjustable)
Adjustable Step Size (dBm) <0.5
Stability (dB, 30min, 20℃) 0.15
Modulation (Hz) CW, 270, 330, 1K, 2K
Fiber Port FC/PC
Alkaline Battery 3*AA, 1.5V
Power Supply Adaptor (V) 8.4
Battery Operating Time (h) 45
Operation Temperature (℃) -10～+60
Storage Temperature (℃) -25～+70
Outline Size (mm)/Weight 180*90*45 (250g)
Standard Accessories
All 316 Models 316 Optical Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual and Soft carrying case
FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
Why Choose TAKFLY?
  • 26+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and 16 Production Lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
  • Raw material incoming inspection before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
