1U 19 MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
1U 19 MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
1U 19 MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
1U 19 MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
Specifications
MOQ :
1
Supply Ability :
500 PCS/Days
Model Number :
TK-HRS-1096E
Delivery Time :
5-9 working days depend on QTY
Brand Name :
OEM/Nuetral
Payment Terms :
T/T,Western Union,Paypal
Price :
can be negotiated
Place of Origin :
ShenZhen & ZhongShan,China
Packaging Details :
Carton
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Description

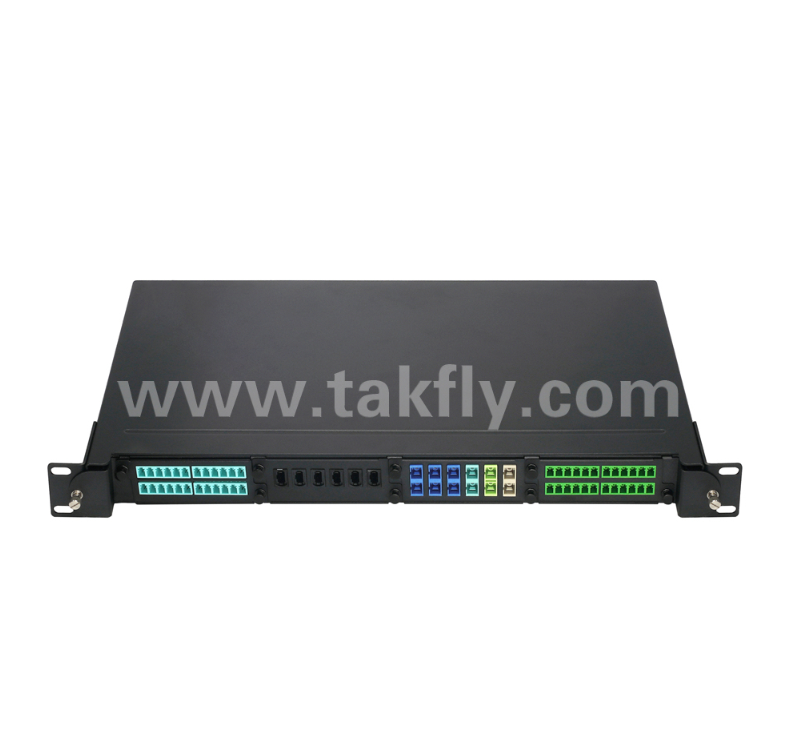

1U 19" MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
This 1U 19-inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center applications including MDF installations, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.

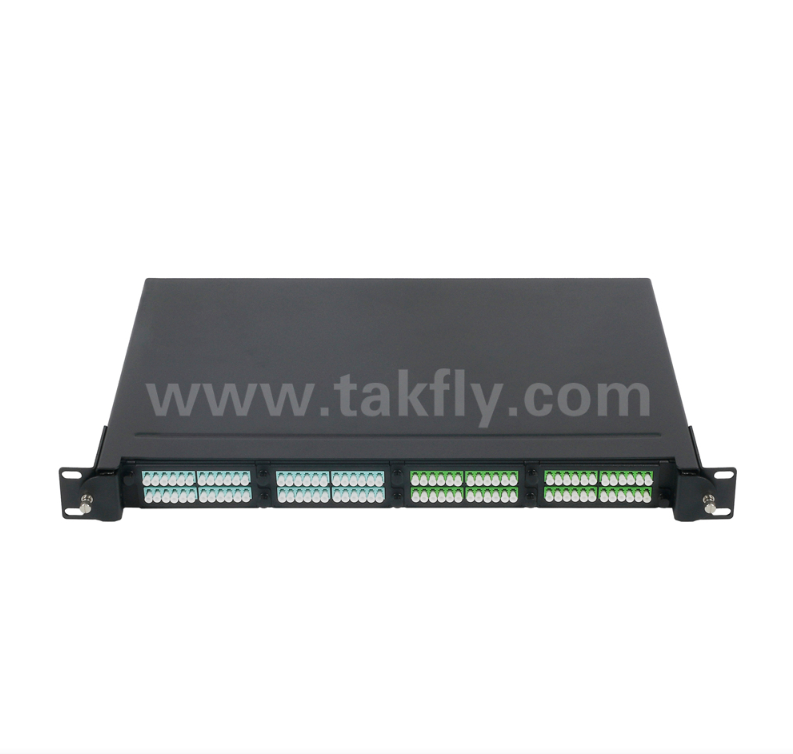

The patch panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interfaces or 96 cores for LC interfaces. Each independent pre-terminated module box is housed within the optical fiber distribution frame to create a complete patch panel system.
1U 19
1U 19
Applications
  • Optical fiber communication dense wiring systems between buildings
  • Optical link interconnection in optical active equipment for LAN cabling
  • Telecommunication base stations
  • Data center rooms in industrial areas
  • Data center rooms in commercial buildings
  • CATV systems
  • LAN networks
  • WAN networks
  • FTTX deployments
Key Features

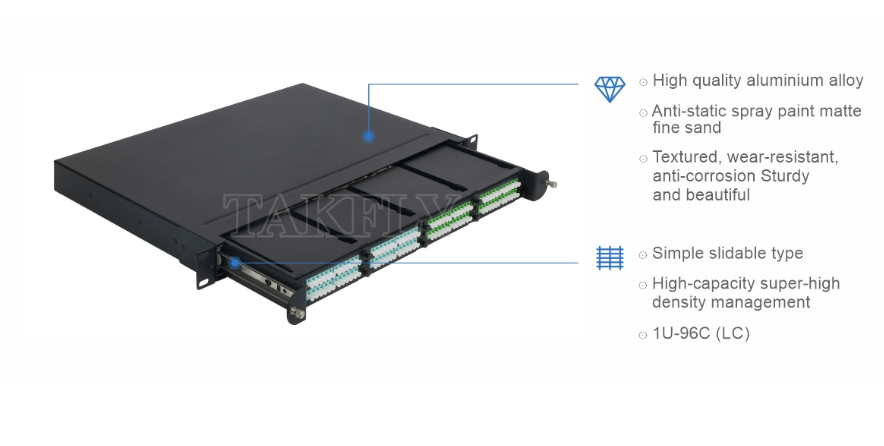

  • Constructed from high-quality aluminum alloy with sturdy, durable electrostatic coating surface
  • Designed for 19-inch rack-mount and cabinet installation, ideal for cassette module centralized management
  • Flexible configuration options: 1U high-density capacity of 96 fibers for LC interface or installation with LC, SC, MPO/MTP adapter panels fusion splice type
  • Available with male or female MPO/MTP connectors with precise PIN and adapter positioning for stable connections
  • Modular design with plug-in locking structure, clear fiber line sequence identification for easy testing, installation, removal and adjustment
  • Compact, lightweight cassette modules and patch panel with impact-resistant, high-pressure, flame-retardant, corrosion-resistant construction
Technical Parameters
1U 19
Packaging
1U 19
Structure Design
1U 191U 19 1U 19
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
  • Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
  • Strong R&D Capability: More than 10 R&D engineers
  • Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
  • Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM Branding Accepted: Custom logo/branding available
Quality Control Process
  • Incoming inspection: Spot check of raw materials before production
  • In-process inspection: Full inspection at every individual process completion
  • Pre-packaging inspection: Full inspection of finished products before packing
  • Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry exhibitions including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
  • Samples: 1-3 working days
  • Mass production orders: 3-7 working days
  • Packaging: Plastic bag, carton, and pallet options available according to your requirements
