10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
Specifications
Input differential impedance :
100 Ω
Model Number :
TKX-TDxxX-3LCD80
Transmit Disable Assert Time :
10 us
Price :
negotiable denpend on QTY
Supply Current :
300 mA
Supply Ability :
1000PCS/Day
Product Name :
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Data Input Swing Differentia :
400-1800 mV
Payment Terms :
T/T,/Paypal,L/C
Supply Voltage :
3.14-3.46V
Single ended data input swing :
180-700 mA
Operating case temperature :
0 to +70°C
Brand Name :
DF/OEM/Nuetral
Differential data output swing :
300-850 mA
Packaging Details :
Blister box+Carton
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Fiber Brand :
Corning, YOFC, OFS, Draka
Place of Origin :
China, Shenzhen
Warranty :
1 years, lifetime maintenance
Description
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network | (TKX-TDxxX-3LCD80)
Product Overview
The Tunable 10Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95Gb/s to 11.35Gb/s. The module complies with the 10Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications (SFF-8477).
It complies with the ITU-T G.698.1 standard with 50GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80km reach (Ethernet), and DWDM 10GFC for 80km reach (Fiber Channel) applications.
The transceiver integrates the receiver and transmit path on one module. On the transmit side, the 10Gbps serial data stream is recovered, retimed, and passed to a modulator driver. The modulator driver biases and modulates a C-band-tunable integrated laser Mach-Zehnder (ILMZ), enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side, the 10Gbps data stream is recovered from an APD/ trans-impedance amplifier, retimed, and passed to an output driver. This module features a hot-pluggable XFI-compliant electrical interface.
Applications
  • DWDM 10GBASE-ZR/ZW 10G Ethernet
  • DWDM 80KM 10G Fiber Channel
  • DWDM SONET OC-192 & SDH STM-64
Key Features
  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Monolithically integrated full C-band tunable transmitter
  • 50GHz ITU channel spacing with integrated wavelength locker
  • C-band-tunable Laser and APD receiver
  • Maximum link length of 80km
  • Full Duplex LC connector
  • Hot-pluggable XFP footprint
  • Supports Line-side and XFI loopback
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Standard bail release mechanism
  • Power dissipation <3.5W

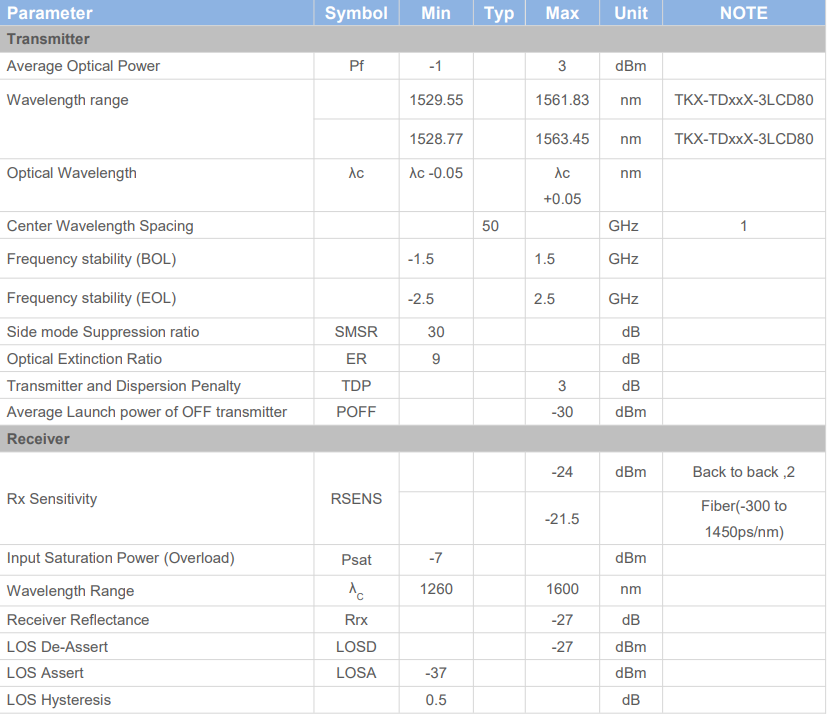

Technical Specifications
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
Notes:
1) Corresponds to approximately 0.4 nm.
2) Measured with worst ER; BER<10 -12 with 10.3Gbps,2 31 - 1 PRBS.

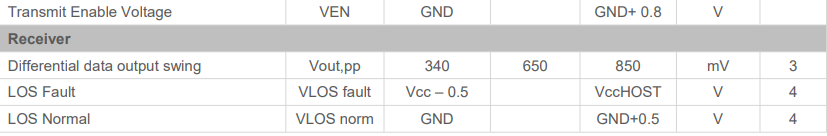

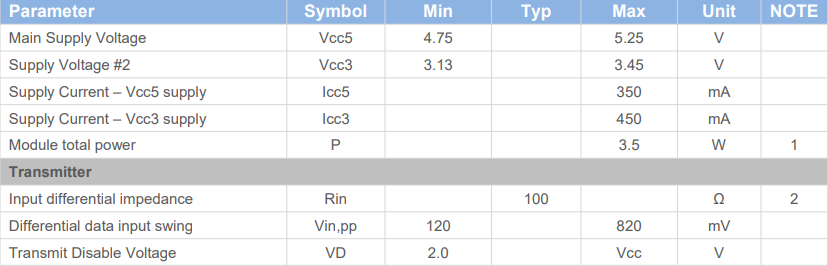

Electrical Interface Characteristics
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80） 10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
Note:
1) Maximum total power value is specified across the full temperature and voltage range.
2) After internal AC coupling.
3) Into 100 ohms differential termination.
4) Loss Of Signal is open collector to be pulled up with a 4.7k - 10kohm resistor to 3.15 - 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

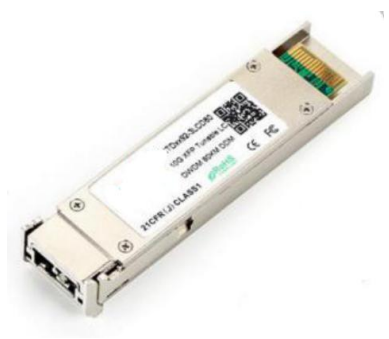

Product Images
10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80）
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
