GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
Specifications
Model Number :
GP4321-3SCDC2x
Payment Terms :
T/T,Paypal
Price :
Can be negotiation
Supply Ability :
3000PCS/Week
MOQ :
1
Delivery Time :
5-9 Works depend on the QTY
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Place of Origin :
ShenZhen & ZhongShan China
Brand Name :
DF/OEM/Nuetral
Packaging Details :
Carton
Description

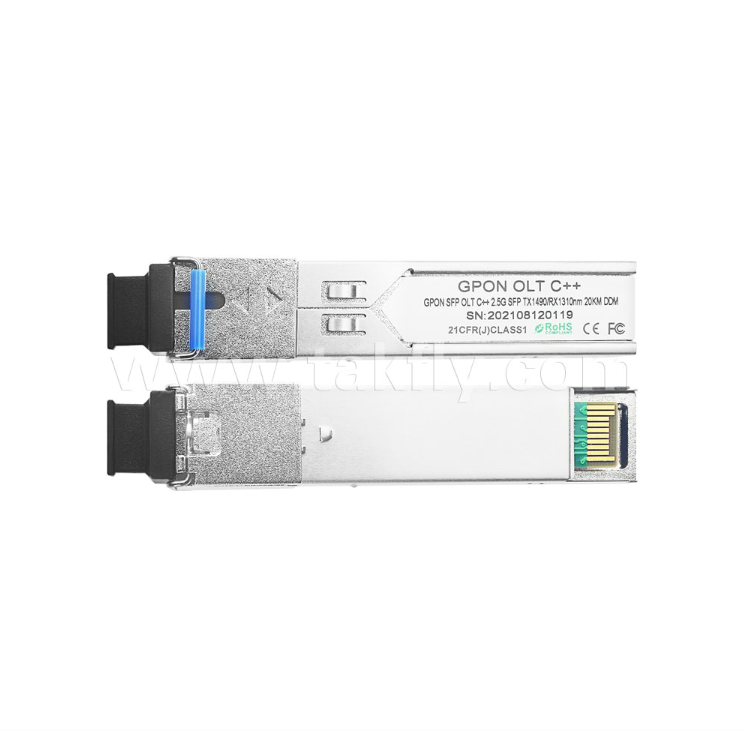

GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver
High-performance GPON OLT Class C++ SFP transceiver designed for point-to-multipoint (P2MP) passive optical network applications. Compliant with ITU-T G.984.2 standards, this module delivers the highest optical power budget available for GPON OLT transceivers, supporting extended reach and split ratios for large-scale FTTH/FTTx deployments.
Technical Specifications
  • Single-fiber bi-directional data links: 2.5Gbps downstream / 1.25Gbps upstream
  • 1490nm continuous-mode DFB laser transmitter
  • 1310nm burst-mode APD-TIA receiver
  • Small Form Factor Pluggable package with SC/UPC Connector
  • 32dB+ link budget with 15dB+ dynamic range
  • 0 to 70°C operating temperature range
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • LVPECL compatible data input/output interface
  • Class 1 laser safety standard IEC-60825 compliant
  • RoHS-6 compliance
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
Applications
  • GPON OLT equipment (FTTH/FTTx)
  • Point-to-multipoint (P2MP) passive optical networks
  • Rural and suburban broadband access
  • Multi-dwelling unit (MDU) and enterprise FTTH deployments
  • Telecommunications access network infrastructure
GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget GP4321-3SCDC2x GPON OLT Class C++ SFP Transceiver – 2.5G/1.25G, 1490nm DFB, 1310nm APD-TIA, SC/UPC, 32dB+ Link Budget
Manufacturing Excellence
26 Years of Manufacturing Experience in fiber optic products
Experienced Assembly Team: 80+ assembly workers with 6+ years of experience
Strong R&D Capability: 10+ R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: 30+ sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, and power meter testers
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
Incoming inspection: Spot check of raw materials before production
In-process inspection: Full inspection at every individual process completion
Pre-packaging inspection: Full inspection of finished products before packing
Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
OFC
FOCC
ConnecAsia
NFTCOM
AFRICACOM
SMART ICT
Contelem
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements
