155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）
Specifications
Supply Current :
300 mA
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Supply Voltage :
3.14-3.46V
Model Number :
TK-B3403-3LCD20
Single ended data input swing :
180-700 mA
Operating case temperature :
0 to +70°C
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Transmit Disable Assert Time :
10 us
Payment Terms :
T/T,/Paypal,L/C
Data Input Swing Differentia :
400-1800 mV
Price :
negotiable denpend on QTY
Differential data output swing :
300-850 mA
Fiber Brand :
Corning, YOFC, OFS, Draka
Supply Ability :
1000PCS/Day
Product Name :
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）
Brand Name :
DF/OEM/Nuetral
Warranty :
1 years, lifetime maintenance
Packaging Details :
Blister box+Carton
Input differential impedance :
100 Ω
Place of Origin :
China, Shenzhen
Description
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm | (TK-B3403-3LCD20)
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting data rates of 155Mbps with 20KM transmission distance over single-mode fiber.

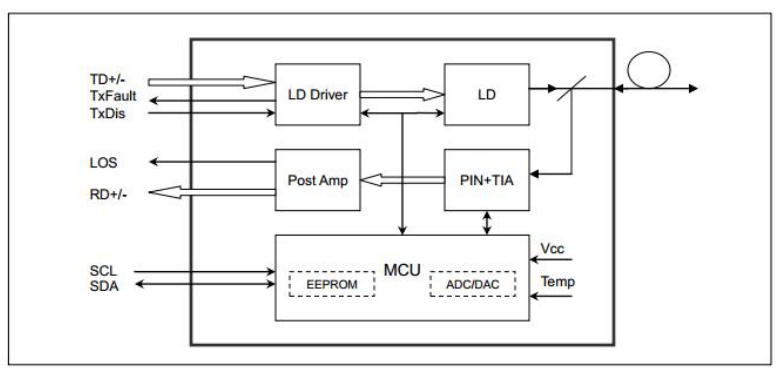

The transceiver consists of three main sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy Class I laser safety requirements and are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 specifications.
Applications
  • SDH STM-1, S-1.1, L-1.1, L-1.2
  • SONET OC-3 IR1, LR1, LR2
  • Other optical communication links
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）
Key Features
  • Up to 155Mbps data rate
  • 1310nm FP laser and 1490nm PIN photodetector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • RoHS compliant
  • +3.3V single power supply
  • Operating case temperature: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)
Compliance Standards
  • SFP+ MSA Compliant
  • SFF-8472 Revision 9.5 compliant
  • IEEE802.3-2005 compliant
  • Telcordia GR-468-CORE compliant
  • FCC 47 CFR Part 15, Class B compliant
  • FDA 21 CFR 1040.10 and 1040.11, Class 1 compliant
  • Compliant with SFF-8472
  • Compliant to SFF-8431
  • RoHS compliant

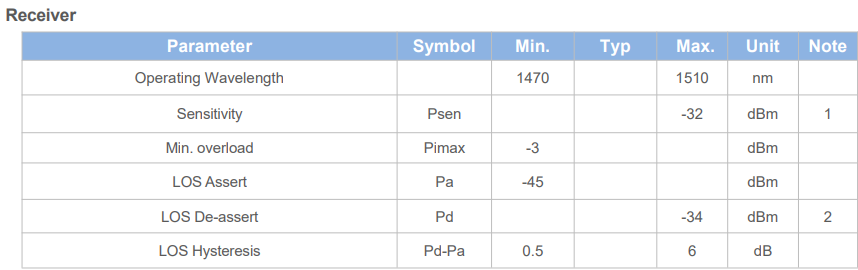

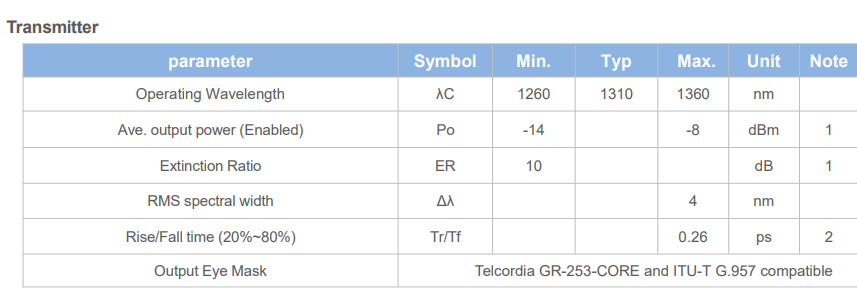

Technical Specifications
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20） 155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）

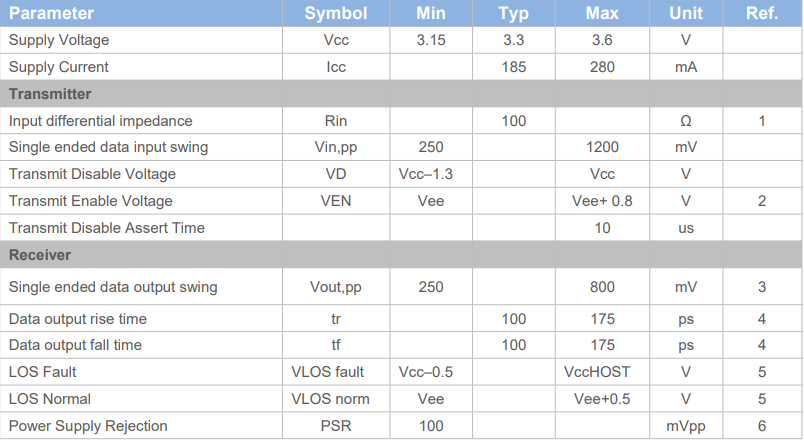

Electrical Interface Characteristics
155Mbps SFP Bi-Directional Transceiver | 20KM Reach Tx1310nm/Rx1490nm |（TK-B3403-3LCD20）
Notes:
1) Connected directly to TX data input pins. AC coupled thereafter.
2) Or open circuit.
3) Into 100 ohms differential termination.
4) 20 - 80 %
5) Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6) Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

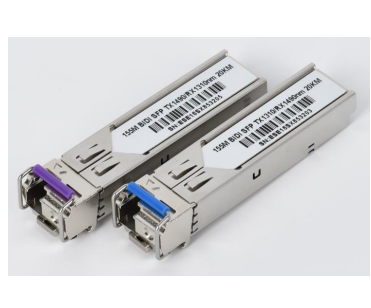

Product Images
