10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
Specifications
Supply Current :
300 mA
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Supply Voltage :
3.14-3.46V
Model Number :
TK-G2-RJ45
Single ended data input swing :
180-700 mA
Operating case temperature :
0 to +70°C
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Transmit Disable Assert Time :
10 us
Payment Terms :
T/T,/Paypal,L/C
Data Input Swing Differentia :
400-1800 mV
Price :
negotiable denpend on QTY
Differential data output swing :
300-850 mA
Fiber Brand :
Corning, YOFC, OFS, Draka
Supply Ability :
1000PCS/Day
Product Name :
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
Brand Name :
DF/OEM/Nuetral
Warranty :
1 years, lifetime maintenance
Packaging Details :
Blister box+Carton
Input differential impedance :
100 Ω
Place of Origin :
China, Shenzhen
Description
10/100BASE-T Copper SFP Transceiver | High Quality Fiber Optical Network | TK-G2-RJ45
The TK-G2-RJ45 Copper Small Form Pluggable (SFP) transceiver module is specifically designed for converting 100Base-FX NRZI port interface to 10/100Base-TX interface with RJ45 connector.
This transceiver module is compliant with the SFP MultiSource Agreement (MSA) and IEEE802.3u standards. With hot-pluggable capability, the module offers flexible installation into SFP MSA compliant ports without interrupting host equipment operations. The Copper SFP transceivers feature an integrated RJ-45 connector with transformer and PHY IC.
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
Applications
  • Supports SFP-based switch 100 Base-FX ports that accept standard 100 Base-FX optics SFP
Key Features
  • Hot-pluggable SFP footprint
  • Fully metallic enclosure for low EMI
  • Compact RJ-45 connector assembly
  • Supports RX_LOS (Loss of Signal) function
  • Compatible with IEEE802.3u
  • Access to physical layer IC via 2-wire serial bus
  • 10/100BASE-TX/100BASE-FX converter
  • Operating case temperature range: -40°C to +85°C (Industrial)

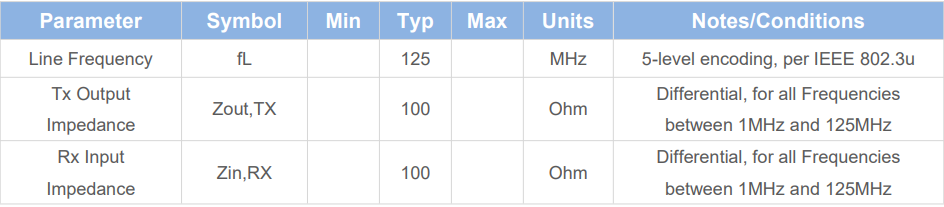

High-speed Electrical Interface - Transmission Line SFP
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）

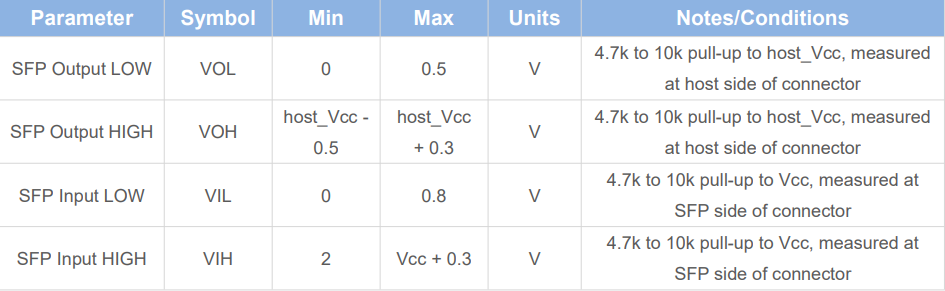

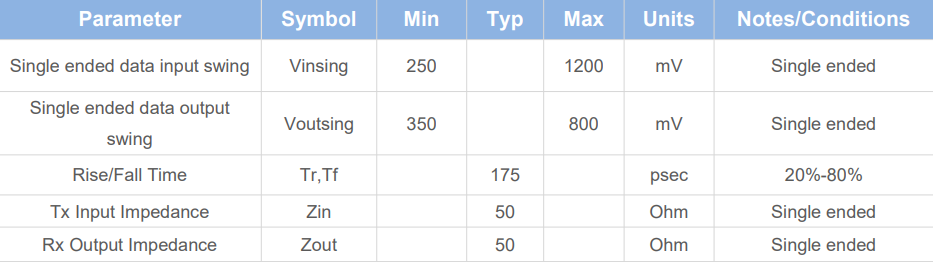

High-speed Electrical Interface - Host SFP
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45） 10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）

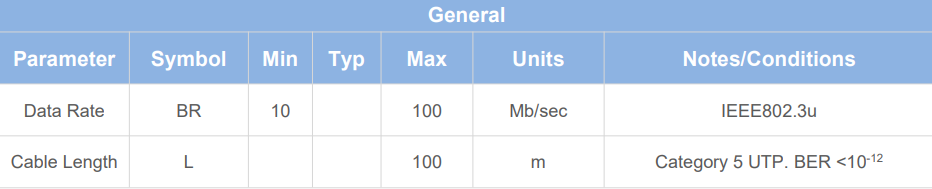

General Specifications
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
Notes:
1. Clock tolerance is +/- 50 ppm
2. By default, the TK-G2-RJ45 is a full duplex device in preferred master mode
3. Automatic crossover detection is enabled. External crossover cable is not required

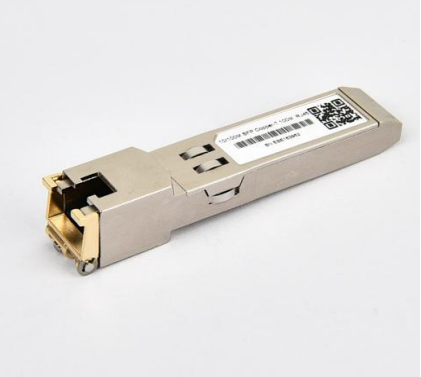

Product Images
10/100BASE-T Copper SFP Transceiver | High Quality and Fiber Optical Network |（TK-G2-RJ45）
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
