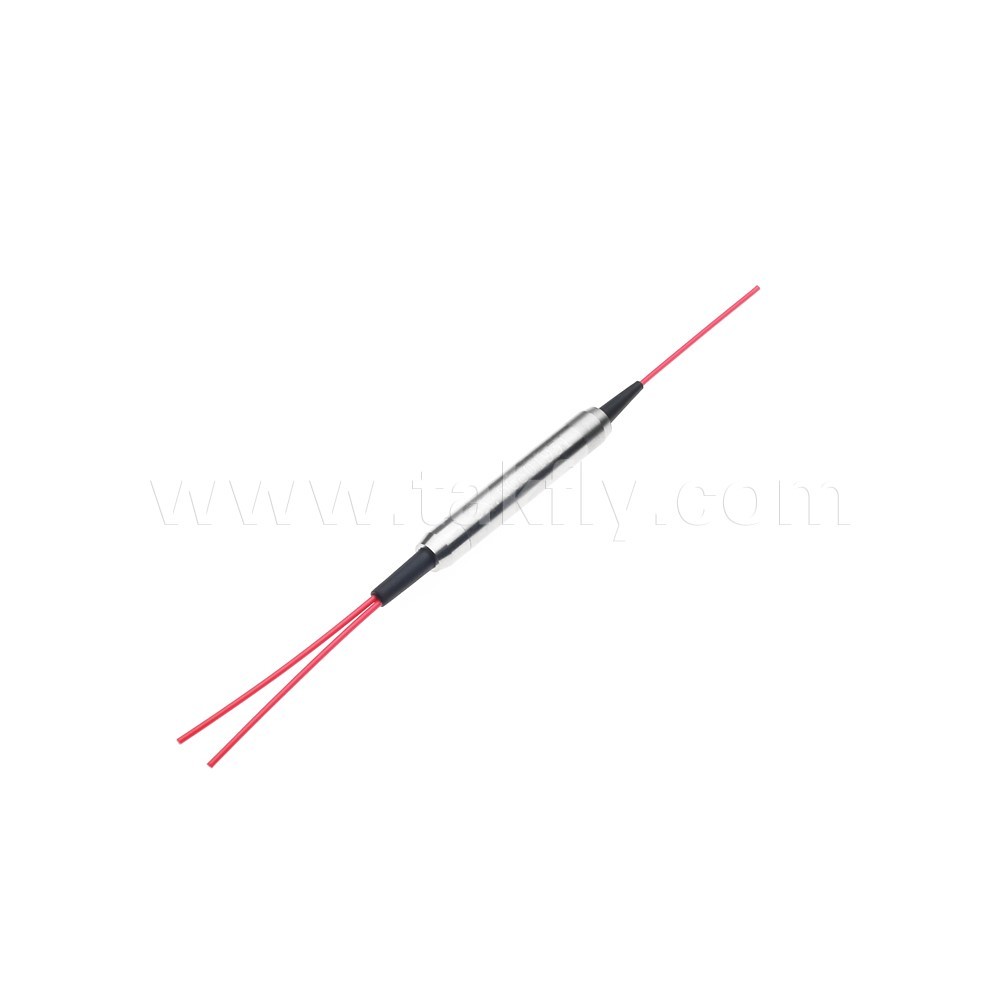

Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Specifications
Certification :
ISO, CE RoHS
Model Number :
DF-PM-DWDM Device
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T,Paypal
Price :
USD119-299/pc
Supply Ability :
1000pcs per month
Customization :
Yes
Brand Name :
OEM
Packaging Details :
Blister Box
Place of Origin :
China
Description
Polarization Maintaining Fiber Optic PM DWDM Device
PM DWDM Device Overview
The In-line Polarizer is engineered to transmit light with one specific polarization while effectively blocking the other polarization with a high extinction ratio. This device delivers low loss, high extinction ratio, and exceptional return loss performance. It can also convert unpolarized light into polarized light with superior extinction ratio characteristics, selectively passing light along either the slow or fast axis while blocking the orthogonal polarization.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High Stability and Reliability

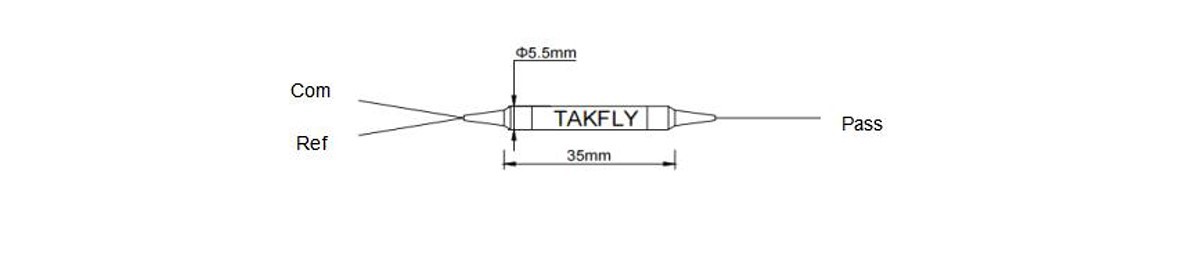

Structure Diagram
Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Technical Specifications
Parameters Unit Values
Channel Space Ghz 100 | 200
Center Wavelength nm ITU Grid
Center Wavelength Accuracy nm ±0.05 | ±0.1
Channel Pass band (@-0.5dB) nm 0.22 | 0.5
Max. Insertion Loss of Transmission Channel dB 1.0 | 0.9
Max. Insertion Loss of Reflection Channel dB 0.4 | 0.4
Min. Transmission Isolation @Reflection Wavelength dB 30 | 30
Min. Reflection Isolation @Transmission Wavelength dB 10 | 10
Max. Channel Flatness dB 0.3
Min. Extinction Ratio at 23℃ dB 18
Max. Wavelength Thermal Stability nm/℃ 0.003
Max. Insertion Loss Thermal Stability dB/℃ 0.005
Min. Return Loss dB 50
Max. Power Handling (CW) mW 500
Fiber Type - PM Panda fiber
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. The default connector key is aligned to slow axis.
Applications
  • DWDM module systems
  • DWDM network infrastructure
  • Gpon network deployments
  • CATV broadcast systems
