GYXTC8Y Figure-8 Self-Supporting Drop Cable – Integrated Steel Messenger, Central Loose Tube, 12-Core FTTH Access
GYXTC8Y Figure-8 Self-Supporting Drop Cable – Integrated Steel Messenger, Central Loose Tube, 12-Core FTTH Access
Specifications
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Model Number :
GYXTC8Y-1-12X
MOQ :
1
Delivery Time :
5-9 Works depend on the QTY
Payment Terms :
T/T,Paypal
Price :
Can be negotiation
Supply Ability :
3000PCS/Week
Brand Name :
DF/OEM/Nuetral
Packaging Details :
Carton
Place of Origin :
ShenZhen & ZhongShan China
Description
GYXTC8Y Figure-8 Self-Supporting Drop Cable
Integrated Steel Messenger, Central Loose Tube, 12-Core FTTH Access
The GYXTC8Y figure-8 self-supporting drop cable is a rugged, all-in-one aerial solution engineered for FTTH/FTTx access networks. Featuring an integrated steel messenger wire and central loose tube design, this cable enables efficient, cost-effective aerial deployment without requiring separate installation hardware.

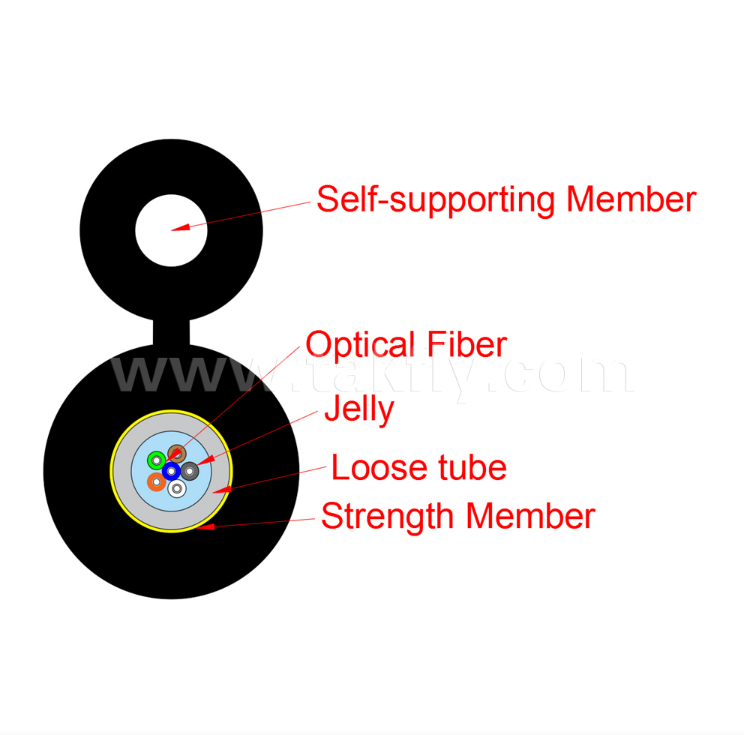

The distinctive figure-8 (bow-type) structure combines a steel messenger wire for self-supporting aerial suspension with the optical unit through a continuous PE sheath. This integrated design simplifies installation, reduces hardware requirements, and ensures reliable performance over long-span aerial routes.
The optical unit houses 12 optical fibers within a central loose tube filled with water-blocking compound, providing superior protection against moisture and mechanical stress. The PE outer sheath offers excellent UV resistance, weatherproofing, and long-term durability for demanding outdoor environments.
GYXTC8Y Figure-8 Self-Supporting Drop Cable – Integrated Steel Messenger, Central Loose Tube, 12-Core FTTH Access
Key Features & Technical Specifications
  • 12 optical fibers with G.652.D single-mode fiber for high-speed transmission
  • Figure-8 self-supporting design with integrated steel messenger wire
  • Central loose tube construction with water-blocking compound protection
  • PE outer sheath with UV resistance and weatherproofing
  • High tensile strength steel messenger for robust aerial support
  • Long-span capability suitable for extended aerial routes
  • Easy one-step aerial deployment without additional hardware
  • Wide operating temperature range for diverse climate conditions
  • Compliant with YD/T and IEC industry standards
Applications & Benefits
This cable is specifically designed for fiber-to-the-home (FTTH) and FTTx access networks, providing a complete aerial solution that reduces installation time and costs while maintaining high reliability and performance in outdoor environments.
