Description
Polarization Maintaining Fiber Optic PM Faraday Mirror for ICT AI Computing
PM Faraday Mirror Overview
The PM Faraday Mirror is a passive optical device that provides 45- or 90-degree rotation of the polarization state of input light. Designed for fiber optic networks and measurement applications, this device effectively eliminates polarization sensitivity in optical fiber systems.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Stability and Reliability

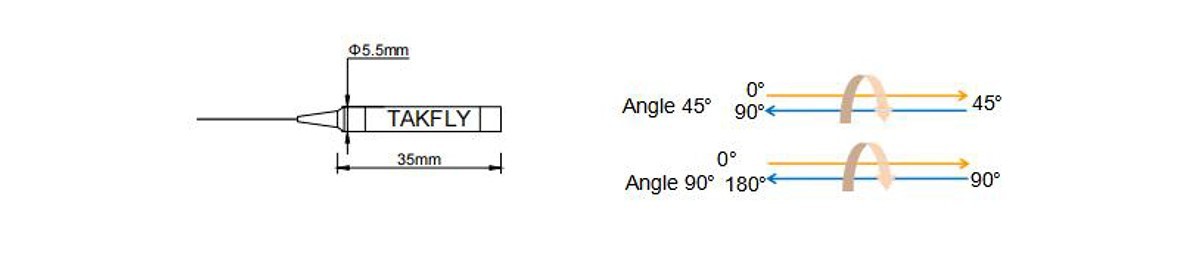

Structure Diagram
Polarization Maintaining Fiber Optic PM Faraday Mirror for ICT AI Computing
Technical Specifications
Parameters Unit Value
Center Wavelength nm 2000 | 1550,1310 | 1064
Operating Wavelength Width nm ±15 | ±15 | ±5
Max. Insertion Loss dB 0.9 | 0.6 | 3.0
Faraday Rotation Angle for CWL deg 45
Max. Rotation Angle Tolerance at 23℃ for CWL deg ±3
Min. Extinction Ratio at 23℃, only for PM dB 20
Max. Polarization Mode Dispersion ps 0.05
Max. Power Handling mW 300
Max. Tensile Load N 5
Fiber Type - PM Panda Fiber
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
The default connector key is aligned to slow axis.
Applications
  • Fiber Optic Instruments
  • Fiber Sensors
  • Fiber Lasers
  • Coherent Detecting
  • Research
