Specifications
Input differential impedance :
100 Ω
Model Number :
TKTDxxX-3LCD10
Transmit Disable Assert Time :
10 us
MOQ :
1 pcs
Delivery Time :
5-9 working days depends on QTY
Data Input Swing Differentia :
400-1800 mV
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Voltage :
3.14-3.46V
Single ended data input swing :
180-700 mA
Price :
Can be negotiated
Supply Current :
300 mA
Supply Ability :
1000PCS/Day
Product Name :
10Gbps SFP
Operating case temperature :
0 to +70°C
Brand Name :
Takfly/OEM
Differential data output swing :
300-850 mA
Packaging Details :
Blister box+Carton
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Fiber Brand :
Corning, YOFC, OFS, Draka
Place of Origin :
China, Shenzhen
Warranty :
1 years, lifetime maintenance
Description
10Gbps SFP+ Transceiver SM 1310nm 10KM
High-performance 10Gbps SFP+ transceiver with 10KM reach, offering exceptional quality and cost-effectiveness for demanding network applications.
Product Overview
The 10Gb/s SFP+ tunable transceiver is an integrated fiber optic transceiver that provides high-speed serial links at signaling rates from 9.95 Gb/s to 11.3 Gb/s. This module complies with the 10 Gigabit Enhanced Small Form Factor Pluggable (SFP+) multisource agreement (SFF-8431, SFF-8432, SFF-8690, SFF-8472) and ITU-T G.698.1 standard with 50 GHz channel spacing.
Applications
  • DWDM 10GBASE-ZR/ZW 10G Ethernet
  • DWDM 10KM 10G Fiber Channel
  • DWDM SONET OC-192 & SDH STM-64
Key Features
  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Monolithically integrated full C-band tunable transmitter and APD receiver
  • 50 GHz ITU channel spacing with integrated wavelength locker
  • Maximum link length of 80km with metal enclosure for lower EMI
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Hot-pluggable SFP+ footprint
  • Compliant with SFP+ MSA with LC connector
  • Power dissipation <1.65W
  • Case temperature range: -5°C to 70°C

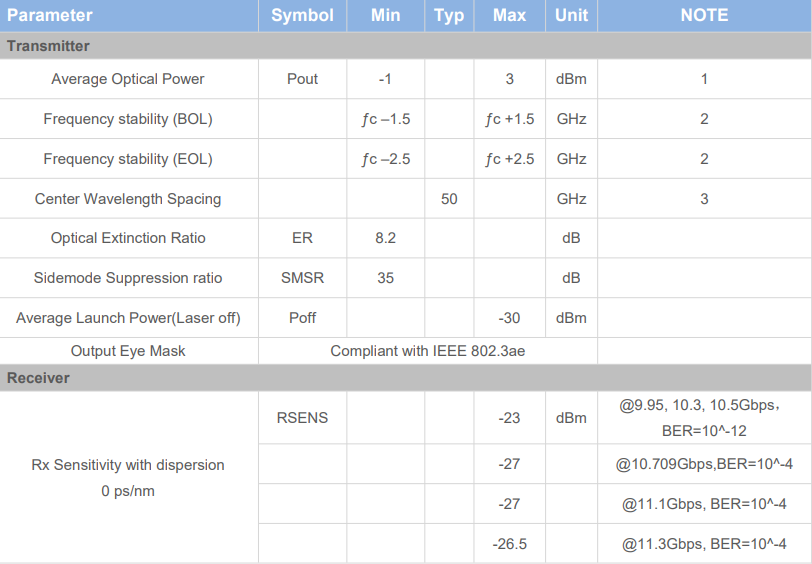

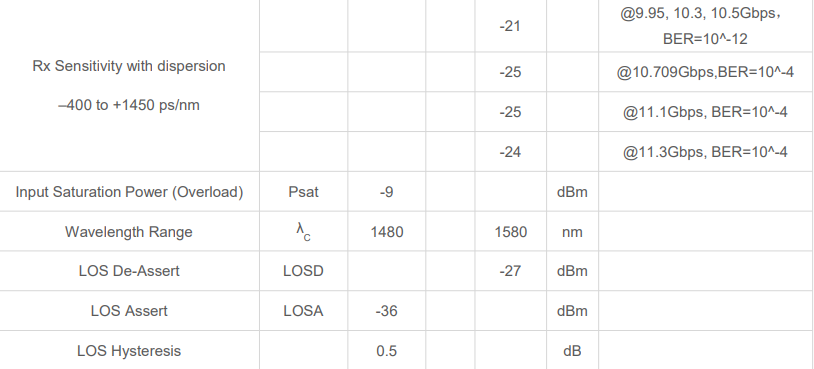

Technical Specifications
10Gbps SFP Transceiver SM 1310nm 10KM SFP+ Transceiver | 10KM Reach High Quality and Cost Effective 10Gbps SFP Transceiver SM 1310nm 10KM SFP+ Transceiver | 10KM Reach High Quality and Cost Effective

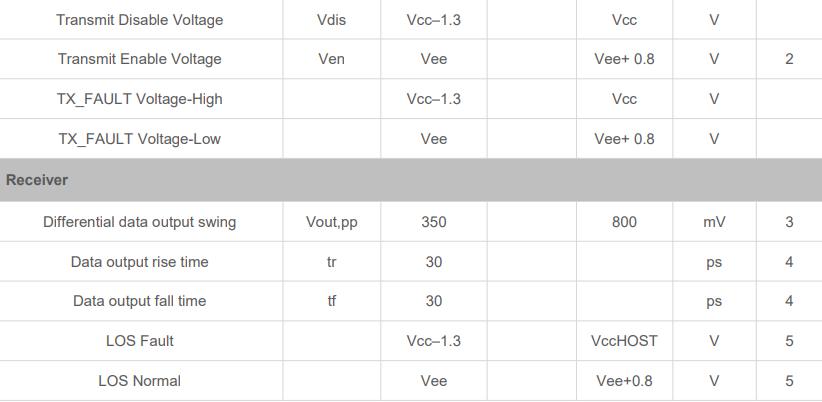

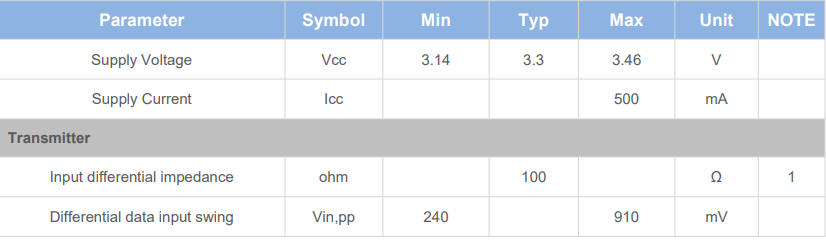

Electrical Interface Characteristics
10Gbps SFP Transceiver SM 1310nm 10KM SFP+ Transceiver | 10KM Reach High Quality and Cost Effective 10Gbps SFP Transceiver SM 1310nm 10KM SFP+ Transceiver | 10KM Reach High Quality and Cost Effective
Notes:
1) Connected directly to TX data input pins. AC coupled thereafter.
2) Or open circuit.
3) Into 100 ohms differential termination.
4) These are unfiltered 20-80% values. Loss of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
