100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network
Specifications
Model Number :
100Gbps QSFP28 to QSFP28 Active Optical Cables
Supply Voltage :
3.14-3.46V
Packaging Details :
Blister box+Carton
Warranty :
1 years, lifetime maintenance
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Single ended data input swing :
180-700 mA
Operating case temperature :
0 to +70°C
Brand Name :
DF/OEM/Nuetral
Product Name :
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network
Payment Terms :
T/T,/Paypal,L/C
Transmit Disable Assert Time :
10 us
Price :
negotiable denpend on QTY
Data Input Swing Differentia :
400-1800 mV
Supply Ability :
1000PCS/Day
Differential data output swing :
300-850 mA
Fiber Brand :
Corning, YOFC, OFS, Draka
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Supply Current :
300 mA
Place of Origin :
China, Shenzhen
Input differential impedance :
100 Ω
Description
100Gbps QSFP28 to QSFP28 Active Optical Cables
High-performance fiber optic network breakout cable solution for 100G Ethernet and high-speed data applications.
Product Overview
TAKFLY QSFP28 active optical cables deliver high performance with low power consumption for long-reach interconnect solutions. These cables support 100G Ethernet, InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe, and SAS applications.
Compliant with QSFP MSA and IEEE P802.3ba standards, each QSFP AOC assembly contains four full-duplex lanes capable of transmitting data at rates up to 25.78125Gb/s per lane, providing an aggregated rate of 104Gb/s. This parallel transceiver design increases port density while reducing total system costs.
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network
Applications
  • 100G Ethernet networks
  • Data center interconnects
  • Infiniband QDR/DDR/SDR systems
  • 4G/8G/10G Fibre Channel environments
Key Features
  • Four-channel full-duplex active optical cable design
  • Transmission data rate up to 26Gbit/s per channel
  • Reliable VCSEL array technology using multimode fiber
  • Available in standard lengths: 3, 5, 10, 15, 20, 30, 50, 70 meters
  • Low power consumption <3.5W
  • Operating case temperature: 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable QSFP form factor

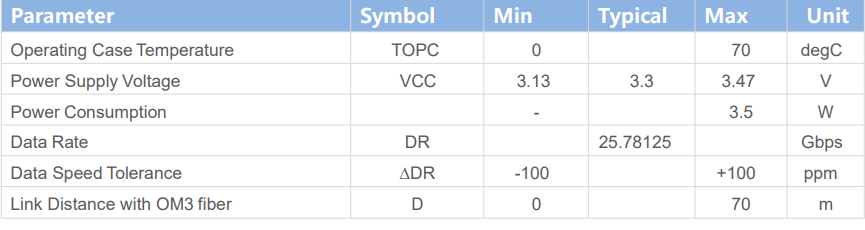

Recommended Operating Conditions and Supply Requirements
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network

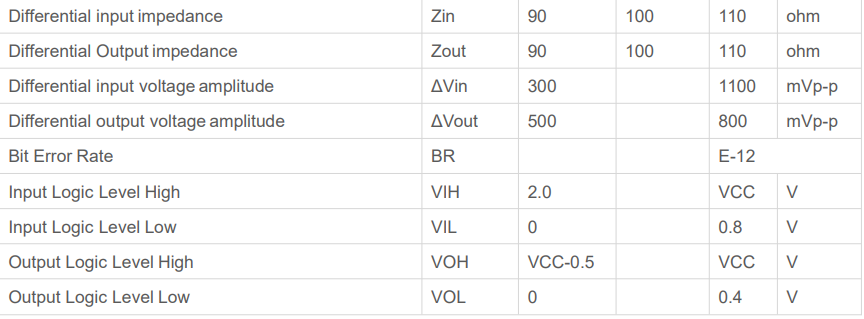

Technical Specifications
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network

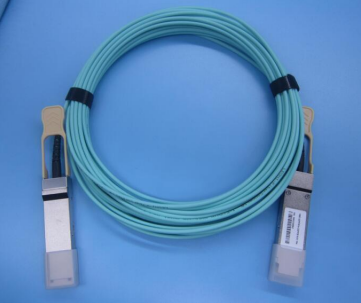

Product Images
100Gbps QSFP28 to QSFP28 Active Optical Cables | High Quality and Fiber Optical Network
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
