Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Specifications
Certification :
ISO, CE RoHS
Model Number :
DF-PM-Isolator
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T,Paypal
Price :
USD3-30/pc
Supply Ability :
1000pcs per month
Customization :
Yes
Place of Origin :
China
Brand Name :
OEM
Packaging Details :
Blister Box
Description
Polarization Maintaining Fiber Optic PM Isolator
High-performance PM isolators operating at 1310nm, 1550nm, and 2000nm wavelengths, designed for ICT and AI computing applications.
Product Overview
The Polarization Maintaining Isolator is a two-port micro-optic device built with PM panda fiber. This advanced optical component features low insertion loss, high isolation, high extinction ratio, and exceptional reliability and stability. The device guides optical light in one direction while effectively eliminating back reflection and back scattering in the reverse direction.
Available with bare fiber or 900μm jacket cable configurations, these isolators support various wavelengths including 1310nm, 1550nm, 2000nm, and other custom specifications.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Isolation
  • High Stability and Reliability

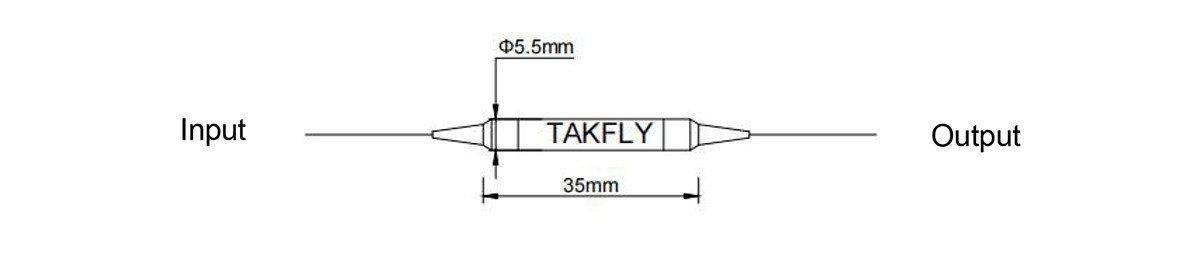

Structure Diagram
Polarization Maintaining Fiber Optic PM Isolator 1310nm 1550nm 2000nm for ICT AI Computing
Technical Specifications
Parameter Unit Value
Stage-Single | Dual
Center Wavelengthnm2000 | 1550 | 1310 | 2000 | 1550 | 1310
Operating Wavelength Rangenm±20
Typ. Peak Isolation at 23℃dB/ | 42 | 42 | / | 58 | 58
Min. Isolation at 23℃dB16 | 28 | 28 | 35 | 45 | 45
Typ. Insertion Loss at 23℃dB/ | 0.4 | 0.4 | / | 0.5 | 0.5
Max. Insertion Loss at 23℃dB1.3 | 0.55 | 0.55 | 1.5 | 0.65 | 0.65
Min. Extinction Ratio at 23℃Both Axis WorkingdB16 | 20 | 20 | 16 | 20 | 20
Fast Axis BlockeddB18 | 25 | 25 | 18 | 25 | 25
Min. Return Loss (input/output)dB50/50
Max. Optical Power (CW)mW500
Max. Tensile LoadN5
Fiber Type-PM Panda Fiber
Operating Temperature℃-5~+70
Storage Temperature℃-40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
The default connector key is aligned to slow axis.
Applications
  • Communication Systems
  • Test Systems
  • Optical Fiber Sensors
  • Research Applications
