Specifications
Supply Ability :
1000pcs per month
Customization :
Yes
Model Number :
DF-PM-Isolator-1064
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T, Paypal
Price :
USD8-19/pc
Certification :
ISO, CE RoHS
Brand Name :
OEM
Place of Origin :
China
Packaging Details :
Blister Box
Description

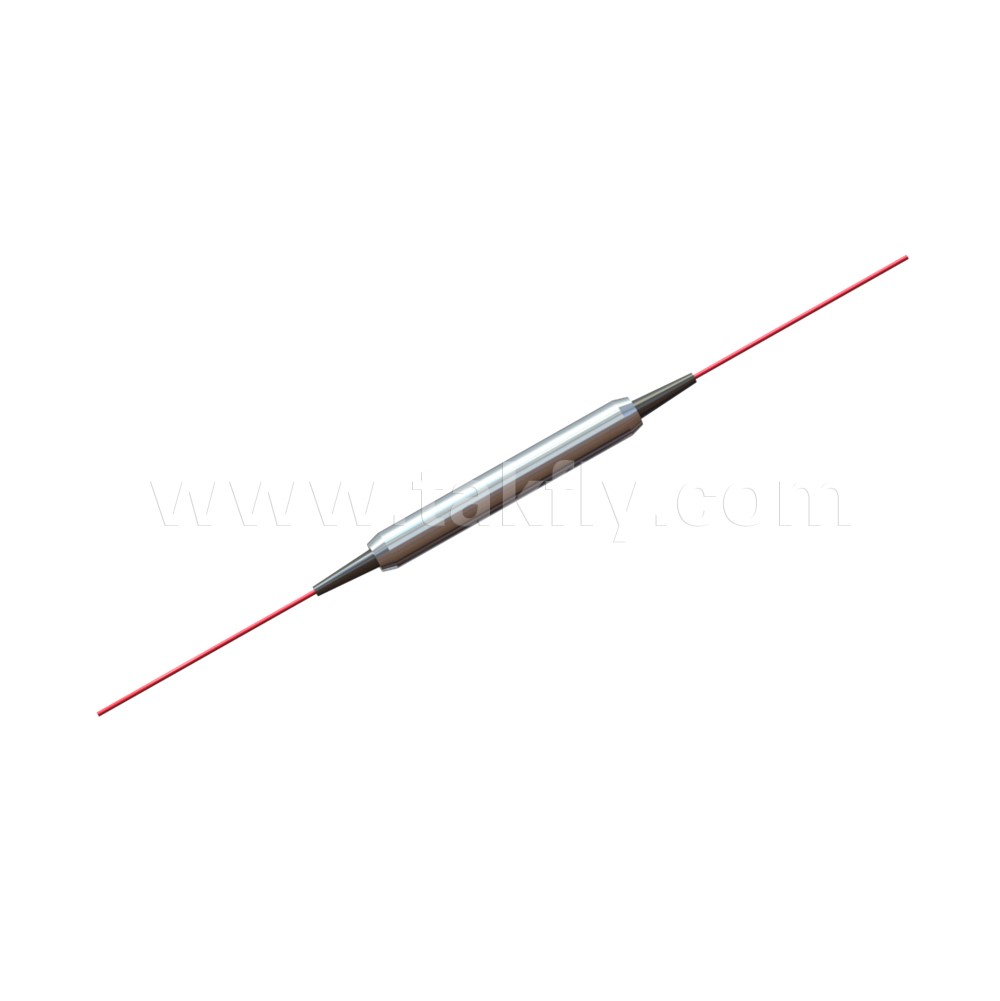

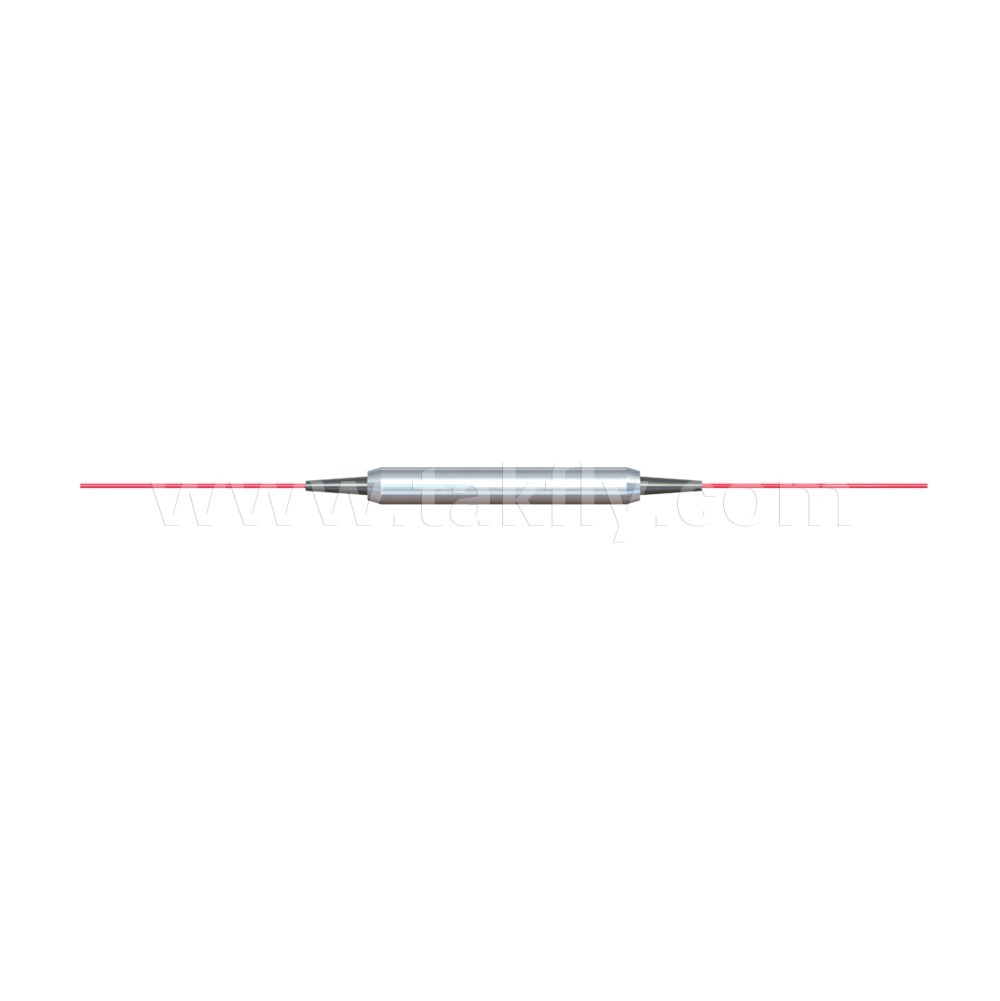

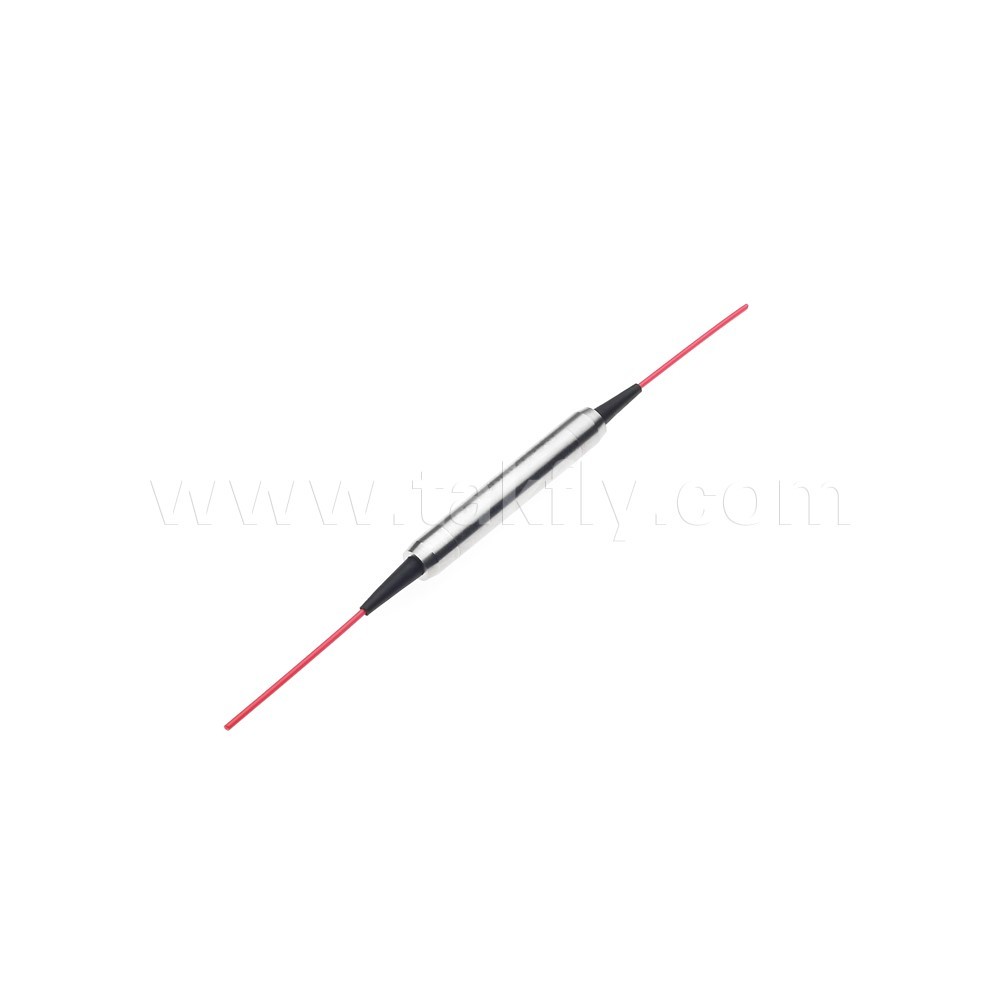

Polarization Maintaining Fiber Optic PM Isolator 1064nm
PM Isolator (1064nm)

Polarization maintaining optical isolators provide high optical isolation while preserving the polarization states of light. These devices are essential for fiber sensor systems, coherent communication systems, optical fiber lasers, and advanced applications in ICT and AI computing.

The PM isolator delivers exceptional performance with low insertion loss, high isolation, high extinction ratio, and outstanding reliability and stability. It guides optical light in one direction while eliminating back reflection and back scattering in the reverse direction. Available with bare fiber or 900μm jacket cable configurations.

Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Isolation
  • High Stability and Reliability

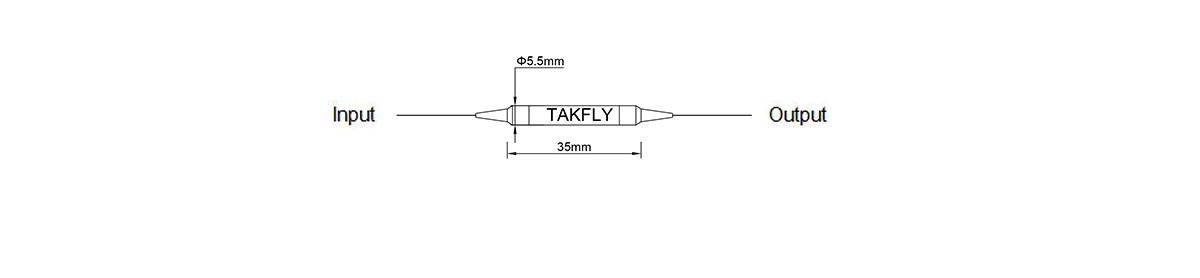

Structure Diagram
Polarization Maintaining Fiber Optic PM Isolator 1064nm for ICT AI Computing
Technical Specifications
Parameter Unit Single Stage P Single Stage A Dual Stage P Dual Stage A
Center Wavelength nm 1064
Operating Wavelength Range nm ±5
Typ. Peak Isolation dB 40 38 55 52
Min. Isolation at 23℃ dB 32 28 45 42
Typ. Insertion Loss at 23℃ dB 1.5 1.6 2.4 2.6
Max. Insertion Loss at 23℃ dB 1.8 2.2 3.2 3.4
Min. Return Loss (input/output) dB 50/50
Min. Extinction Ratio at 23℃ dB 20 18 20 18
Fast axis working dB 22 20 22 20
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type - PM Panda fiber
Operating Temperature ℃ -5 to +50
Storage Temperature ℃ -40 to +85
Note: For devices with connectors, insertion loss is 0.3dB higher, return loss is 5dB lower, and extinction ratio is 2dB lower. The default connector key is aligned to slow axis.
Applications
  • EDFA (Erbium-Doped Fiber Amplifier)
  • Fibre Sensor Systems
  • Fiber Instrumentation
  • ICT and AI Computing Systems
  • Coherent Communication Systems
  • Optical Fiber Lasers
