Specifications
Supply Ability :
1000pcs per month
Customization :
Yes
Brand Name :
OEM
Model Number :
DF-PM-Isolator-WDM
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T, Paypal
Price :
USD90-160/pc
Certification :
ISO, CE RoHS
Place of Origin :
China
Packaging Details :
Blister Box
Description
Polarization Maintaining Fiber Optic PM Isolator & WDM Hybrid for ICT AI Computing
PM Isolator & WDM Hybrid
The PM Isolator & WDM Hybrid is a specialized component that integrates an optical isolator and a WDM optical coupler within a compact package. This isolator plus WDM coupler combination is particularly useful for doped optical fiber amplifier design and applications. Two types of WDM couplers are available: 1480nm/1550nm and 980nm/1550nm. The signal at the 1550nm window first passes through the isolator and then combines with the pumping laser power at the WDM coupler. Previous stages of optical circuits are protected due to optical isolation. Both single stage and dual stage isolation options are available.
This product reduces overall costs and simplifies system structure while providing improved performance and reliability.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Isolation
  • High Stability and Reliability

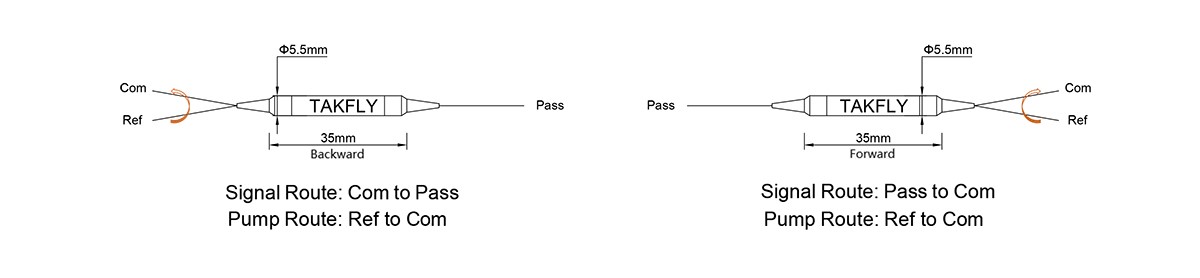

Structure Diagram
Polarization Maintaining Fiber Optic PM Isolator & WDM Hybrid for ICT AI Computing
Technical Specifications
Parameter Unit Specifications
Stage - Single | Dual | Single | Dual
Signal Channel
Signal Wavelength Range nm 1064±10 | 1550±15
Max. Insertion Loss dB 2.6 | 3.8 | 0.9 | 1.0
Typ. Peak Signal Reversed Isolation, at 23℃ dB 40 | 52 | 40 | 52
Min. Signal Reversed Isolation, at 23℃ dB 28 | 45 | 28 | 45
Min. Isolation (Com to Pass @ Ref band Wavelength) dB 30
Min. Extinction Ratio at 23℃ dB 20
Reflection Channel
Wavelength Range nm 960~990
Max. Insertion Loss dB 0.6
Min. Isolation (Com to Ref @ Pass band Wavelength) dB 15
Min. Extinction Ratio at 23℃ dB 18
Min. Return Loss dB 50
Max. Insertion Loss Thermal Stability dB/℃ 0.005
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
* For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
* The default connector key is aligned to slow axis.
Applications
  • Fiber Laser
  • Fiber Amplifier
  • Testing Equipment
