1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20
Specifications
Supply Ability :
1000PCS/Day
Product Name :
1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm TK-B3424-3LCD20
Fiber Brand :
Corning, YOFC, OFS, Draka
Model Number :
1.25Gbps SFP Bi-Directional Transceiver
ISingle ended data output swing :
250-800 mV
MOQ :
negotiable
Delivery Time :
5-9 working days depends on QTY
Transmit Disable Assert Time :
10 us
Payment Terms :
Western Union,T/T,/Paypal
Supply Voltage :
3.15-3.6V
Single ended data input swing :
250-1200 mV
Price :
negotiable denpend on QTY
Supply Current :
185-280 mA
Input differential impedance :
100 Ω
Working Temperature :
0 °C to +70 °C
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Warranty :
1 years, lifetime maintenance
Place of Origin :
China, Shenzhen
Storage Temperature :
-40 °C to +85 °C (Industrial)
Packaging Details :
Blister box+Carton
Brand Name :
DF/OEM/Nuetral
Power Supply Rejection :
100 mVpp
Description
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm
The SFP-BIDI transceiver delivers outstanding performance with superb quality at an affordable price. Utilizing single-mode fiber, this module supports 20KM transmission distance and dual data-rate operation of 1.25Gbps/1.0625Gbps.
Transceiver Construction
The transceiver consists of two main sections:
  • FP laser transmitter
  • PIN photodiode with trans-impedance preamplifier (TIA) and MCU control unit
This transceiver complies with SFP Multi-Source Agreement (MSA) and SFF-8472 standards, meeting Class I laser safety requirements.
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20
Applications
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems
Key Features
  • Dual data-rate operation: 1.25Gbps/1.063Gbps
  • 1310nm FP laser and PIN photodetector for 20KM transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Digital Diagnostic Monitoring with Internal or External Calibration
  • Compatible with SONET OC-24-LR-1
  • RoHS compliant
  • +3.3V single power supply
  • Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)

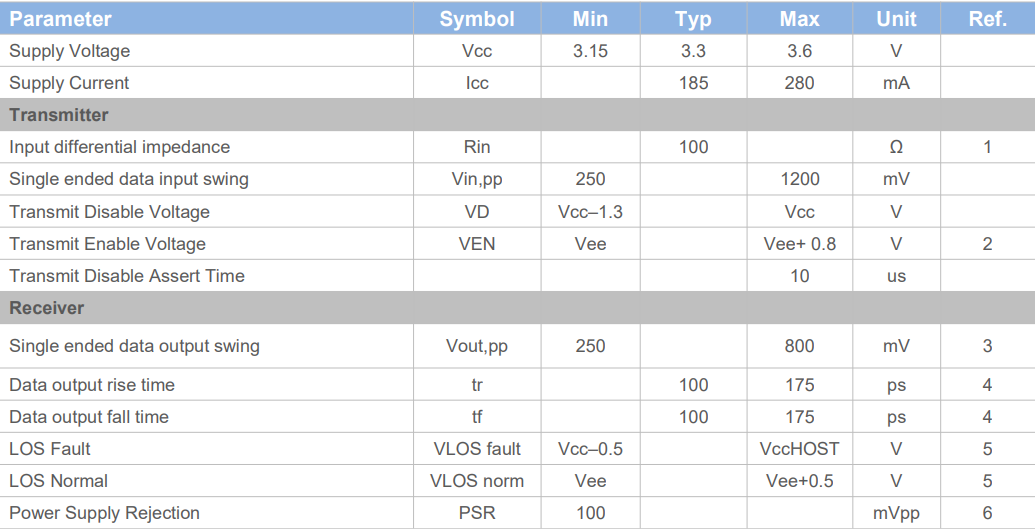

Technical Specifications
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20
Optic Characteristics

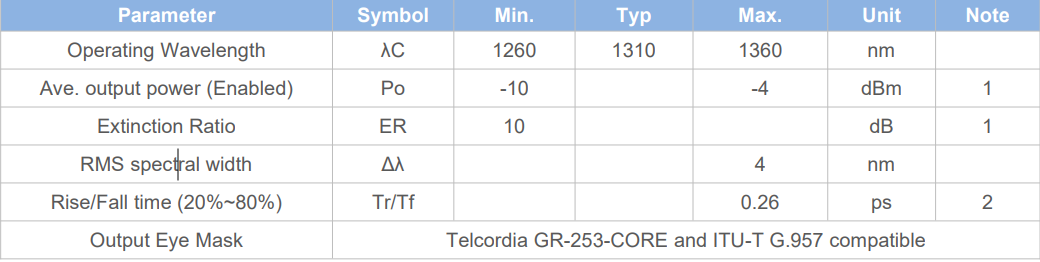

Transmitter Specifications
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20

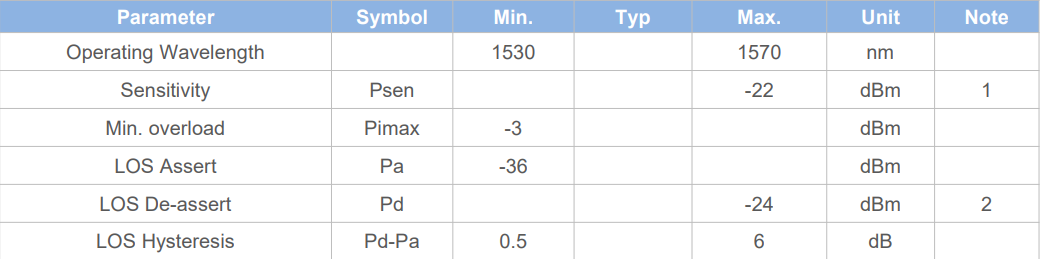

Receiver Specifications
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20

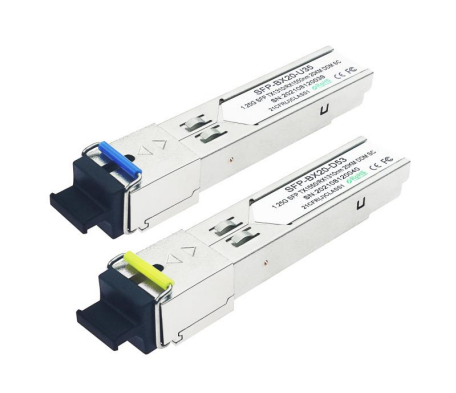

Product Images
1.25Gbps SFP Bi-Directional Transceiver 20KM Reach Tx1310nm/Rx1550nm TK-B3512-3SCD20
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
