Specifications
Supply Ability :
1000pcs per month
Customization :
Yes
Model Number :
DF-PM-IPBC/IPBS
Price :
USD90-160/pc
Certification :
ISO, CE RoHS
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T,Paypal
Brand Name :
OEM
Place of Origin :
China
Packaging Details :
Blister Box
Description

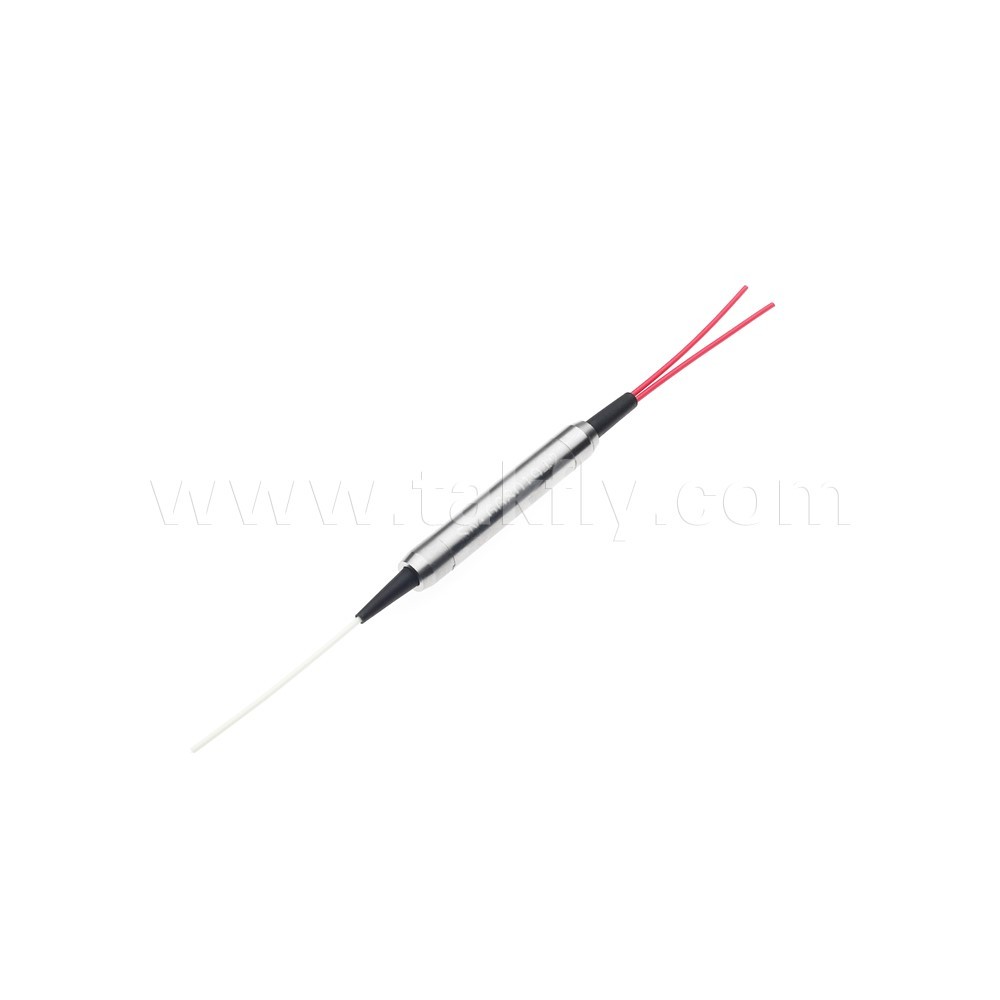

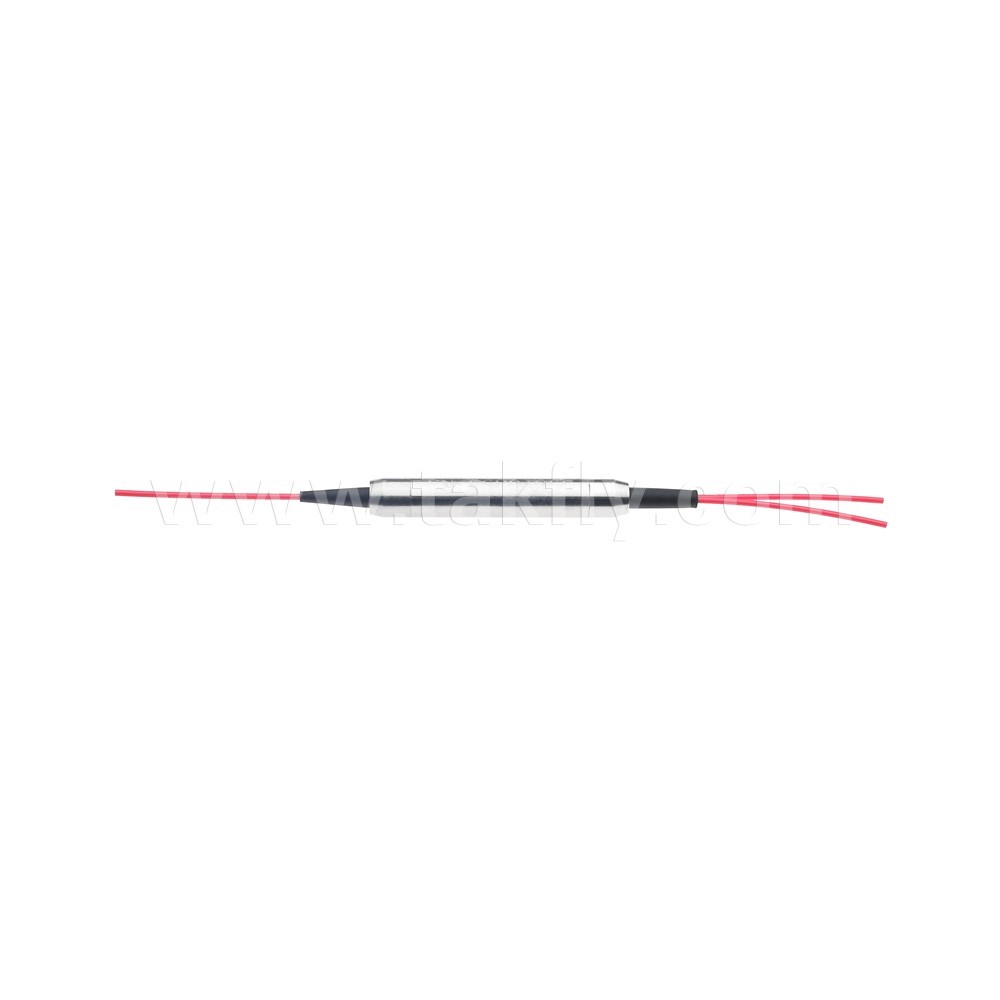

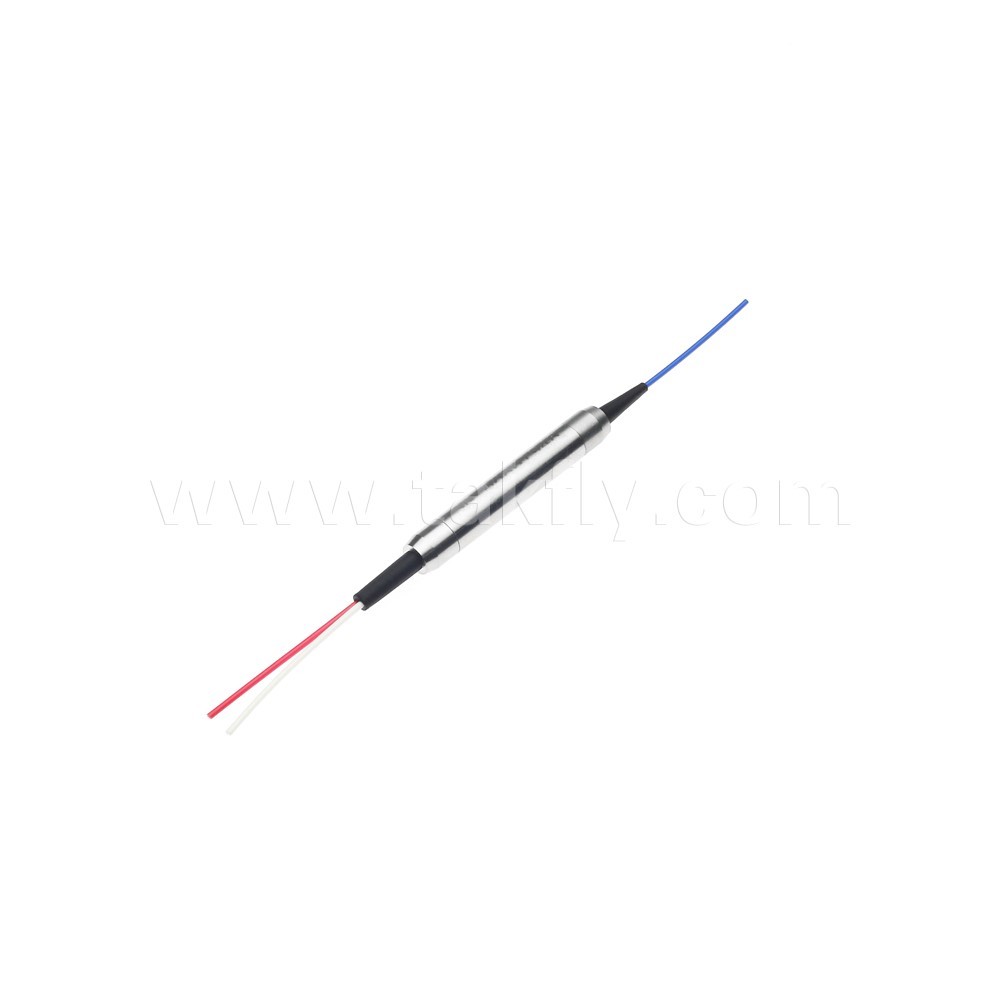

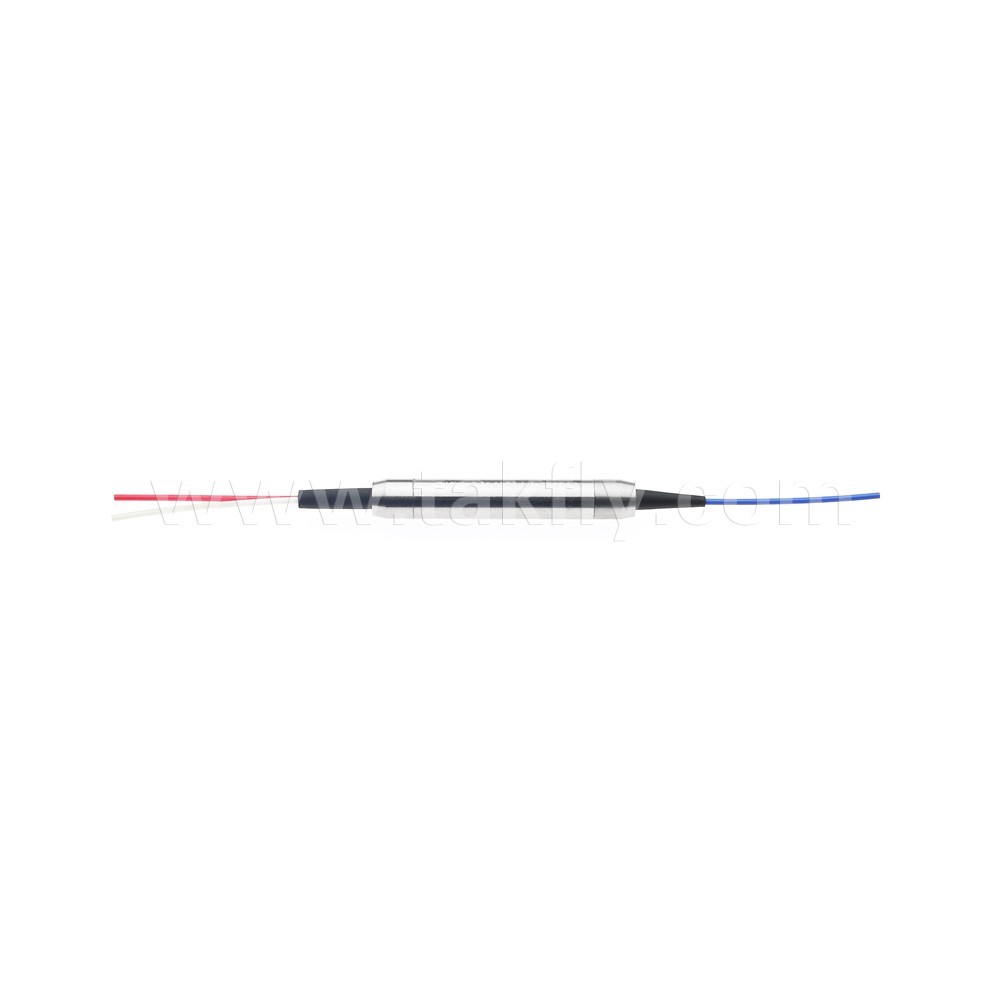

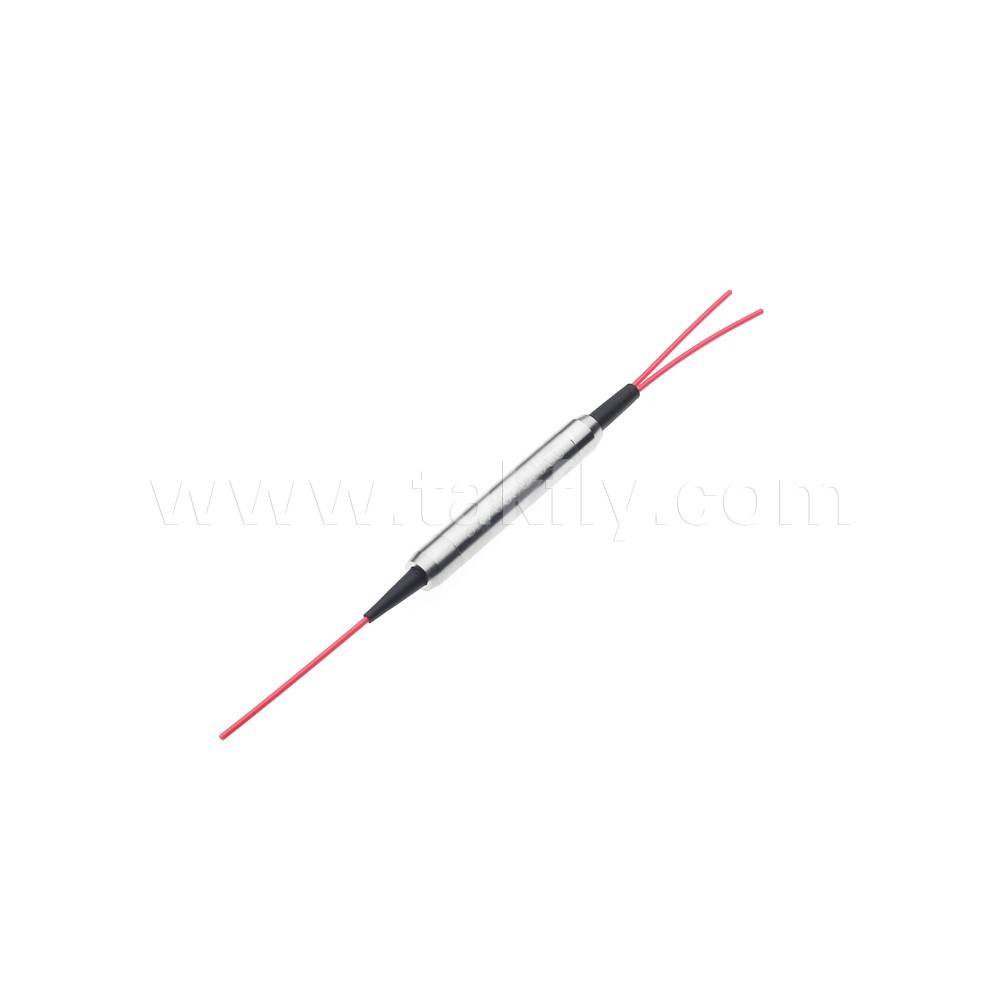

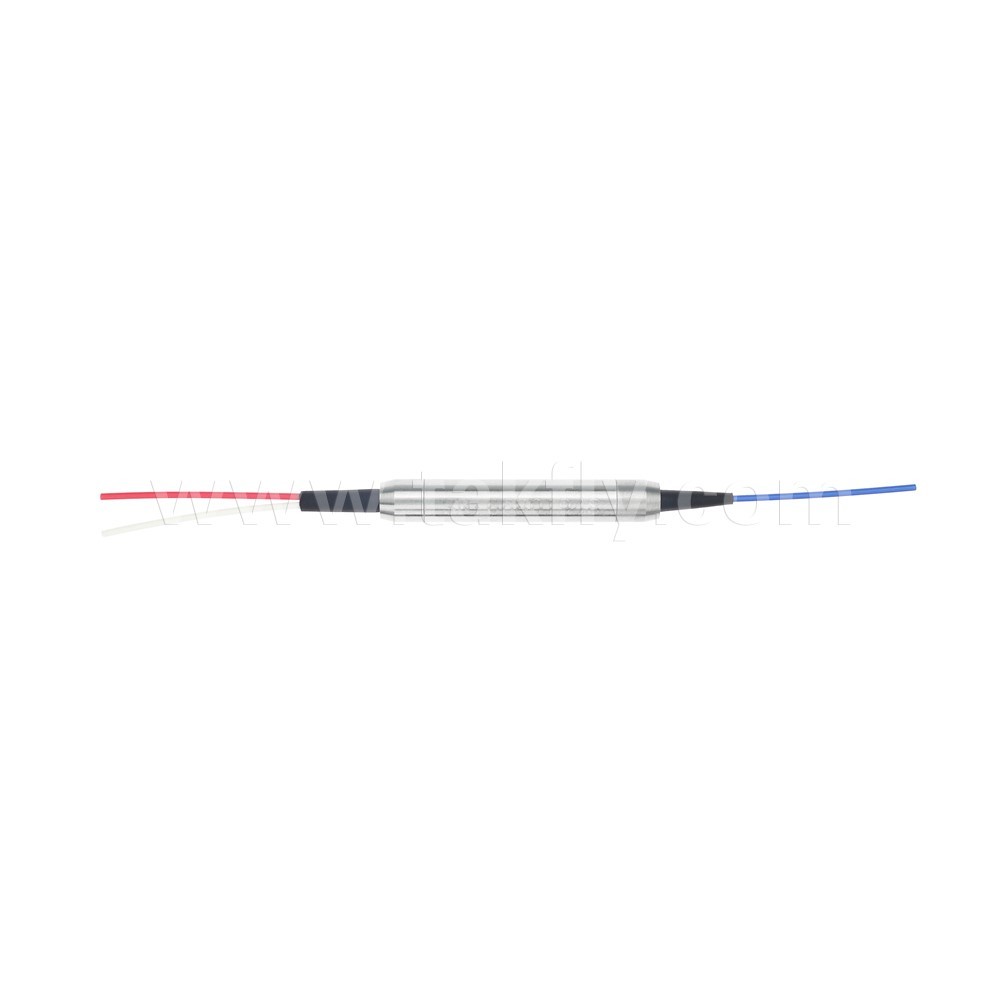

Polarization Maintaining Fiber Optic PM Isolator & Polarization Beam Splitter/Combiner (IPBC/IPBS)
Isolator & Polarization Beam Splitter/Combiner (IPBC/IPBS)
The Isolator Polarization Beam Combiner/Splitter is a compact integrated device that provides both polarization beam combining and optical isolation in a single component. It functions as either a polarization beam combiner to merge light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to separate light from an input fiber into two output fibers with orthogonal polarization states.
IPBC/PBS devices feature extremely low insertion loss and significantly improve amplifier performance. These components are ideal for high-power fiber laser and high-power fiber amplifier applications in ICT and AI computing systems.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Stability and Reliability

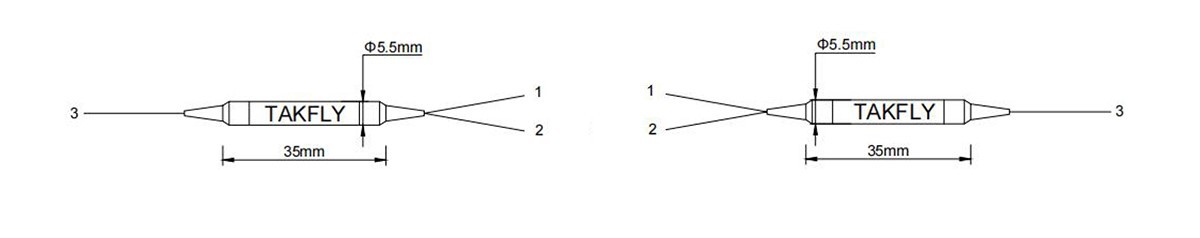

Structure Diagram
Polarization Maintaining Fiber Optic PM Isolator & Polarization Beam Splitter/Combiner (IPBC/IPBS) for ICT AI Computing
Technical Specifications
Parameters Unit Dual Stage Values Single Stage Values
Center Wavelength nm 2000 1550, 1310, 1064
Operating Wavelength Range nm ±20 ±20, ±5
Typ. Insertion Loss at 23℃ dB 0.7 0.55, 0.45, 1.8
Max. Insertion Loss at 23℃ dB 1.3 0.80, 0.70, 2.1
Type. Reversed Isolation at 23℃ (Port 3 to Port 1 or 2) dB 51 35
Min. Isolation at 23℃ (Port 3 to Port 1 or 2) dB 42 20, 25
Min. Extinction Ratio at 23℃ dB 20 25, 20
Directivity dB 50
Min. Return Loss dB 50
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type - Port 1 & 2 - PM Panda fiber
Fiber Type - Port 3 - PM Panda fiber, SMF-28E or Hi1060
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85
Important Notes:
For devices with connectors, insertion loss is 0.3dB higher, return loss is 5dB lower, and extinction ratio is 2dB lower.
The default connector key is aligned to the slow axis.
Applications
  • EDFA and Raman Amplifier systems
  • Fiber optic sensing applications
  • Coherent communication systems
  • Polarization mode dispersion compensation
