Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Specifications
Supply Ability :
1000pcs per month
Model Number :
DF-PM-Polarizer
MOQ :
1
Delivery Time :
5-8 working days
Payment Terms :
T/T, Paypal
Price :
USD10-150/pc
Certification :
ISO, CE RoHS
Brand Name :
OEM
Customization :
Yes
Place of Origin :
China
Packaging Details :
Blister Box
Description
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
PM In-line Polarizer
The In-line Polarizer is engineered to transmit light with a specific polarization while effectively blocking the orthogonal polarization with high extinction ratio. This component delivers exceptional performance with low insertion loss, high extinction ratio, and superior return loss characteristics. It effectively converts unpolarized light into polarized light with high extinction ratio, selectively transmitting light along either the slow or fast axis while blocking the orthogonal polarization component.
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Stability and Reliability

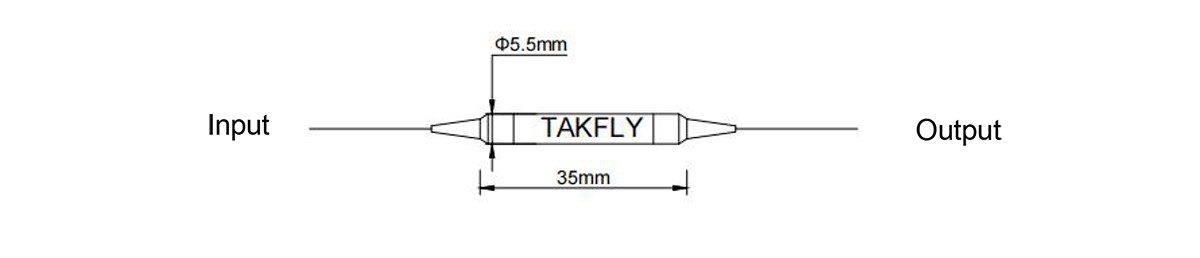

Structure Diagram
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
Technical Specifications
Parameters Unit Value
Center Wavelength nm 2000 | 1550 | 1310 | 1064 | 980 | 850
Operating Wavelength Range nm ±50 | ±50 | ±50 | ±30 | ±10 | ±10
Typ. Insertion Loss at 23℃ dB 0.8 | 0.3 | 0.3 | 0.4 | 0.7 | 0.8
Max. Insertion Loss at 23℃ dB 1.0 | 0.5 | 0.5 | 0.6 | 0.9 | 1.0
Min. Return Loss dB 50 | 50 | 50 | 50 | 50 | 50
Typ. Extinction Ratio at 23℃ dB 22 | 30 | 30 | 30 | 28 | 28
Min. Extinction Ratio at 23℃ dB 20 | 28 | 28 | 28 | 25 | 25
Fiber Type for Input & Output / SM-SM or SM-PM or PM to PM
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For devices with connectors: Insertion Loss is 0.3dB higher, Return Loss is 5dB lower, and Extinction Ratio is 2dB lower. The default connector key is aligned to the slow axis.
Applications
  • Communication Systems
  • Test Systems
  • Optical Fiber Sensors
  • Research Applications
Polarization Maintaining Fiber Optic PM In-line Polarizer for ICT AI Computing
