Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley DSJ38TSC
Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley DSJ38TSC
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Certification :
API,ISO
Certifications :
CE, ISO
Usage :
Lifting in Oilfield
Safety Features :
Emergency Stop Button, Overload Protection
Color :
Yellow Orange or other Colors
Material :
Steel
Warranty :
12 Months
Description

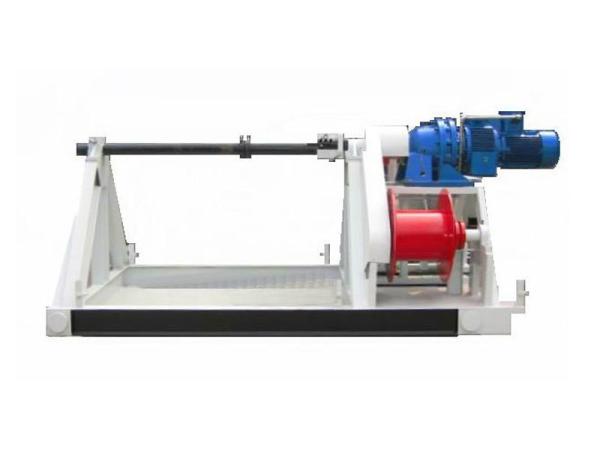

DSJ38TSC Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley

PRODUCTION

DSJ series drill line spooler is a special equipment used to collect and lay wire rope in oil field drilling operations. The use of the equipment can be used after the wire rope re-closing, in order to facilitate the relocation and re-use of the wire rope, but also to prevent the wire rope rolling, twisting, has the role of protecting the wire rope; At the same time, reduce the labor intensity of workers collecting and laying wire rope, and realize the mechanization of collecting and laying wire rope. The product can also be used for large cable, wire laying in the collection and release operations.

According to the different needs of users, its power system has hydraulic, electric and pneumatic forms, hydraulic and pneumatic can achieve stepless speed regulation, electric type has constant speed type and stepless speed regulation type, can be designed and produced according to the different needs of users of different tonnage, torque and structural forms of products, can also be added according to user requirements lead drum.

Power form: hydraulic, electric, pneumatic



NUMBERING METHOD

Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley DSJ38TSC


① Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.

② Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.

③ Maximum Speed Of Revolution: r/min.

④ Maximum Load Weight:*1000kg.

⑤ Main Drum Rope Diameter (generally not marked).

⑥ Rope Capstan Machine.

TECHNICAL PARAMETER

No.

Item

Technical Parameters

1

Model

DSJ38DC

DSJ38YS

DSJ38Q

2

Output Speed(r/min)

11

0.55-17.5

0-13

3

Output Torque(N·m)

10000

10000

10000

4

Power

7.5kW

7.5kW

16 kW

5

rope capacity-38mm

1000m

1200m

1200

6

Load weight

8000

8000

10000

7

Drum

Width(mm)

1200

1200

1640

External Diameter(mm)

2200

2200

2200

Center Hole(mm)

100

100

100

8

Dimensions:

Length * Width * Height(mm)

3200*1790*1880

3200*1790*1880

3045*2050*1845

9

Weight(kg)

1000

1200

1450
