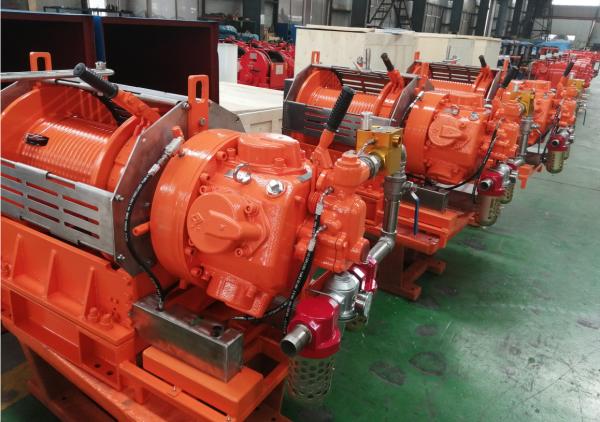

Oilfield Pneumatic Manriding Winch 20m/min ZJQH-15×20B for Personnel Lifting
Oilfield Pneumatic Manriding Winch 20m/min ZJQH-15×20B for Personnel Lifting
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Application :
Oilfield
Usage :
Lifting in Oilfield
Max. Lifting Capacity :
800kg
Warranty :
12 Months
Certifications :
CE, ISO
Safety Features :
Emergency Stop Button, Overload Protection
Color :
Yellow Orange or other Colors
Material :
Steel
Description

Manned Pneumatic Winch ZJQH-15×20B Lifting Personnel

INTRODUCTION

This pneumatic winch breaks the function of the traditional winch, winch has a number of safety features: emergency stop, overload, limit, etc., suitable for a variety of applications. A real multi-purpose machine, favored by users.

MAIN PARAMETERS

Rated lifting force Payload 30kN, manned 15kN
Lifting speed ~20m/min;
Steel rope diameter(mm) φ19mm
Wire capacity (D=10mm) 130m
Pneumatic Motor Rated power(kW) 16kW
Pressure of compress air(MPa) 0.6-0.8MPa
ax. air consumption ≤18.3m3/min
Break type Built-in entire disc CAAB + Band hand break
weight(kg) 800kg
Security measures Ergency stop device；
Barely able to brake.
Mergency Lowering；
Over load protection device；
Limit protection Switches
