Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Color :
Yellow Orange or other Colors
Warranty :
12 Months
Condition :
New
Material :
Steel
Application :
Lifting and Pulling
Rope Speed :
10 m/min - 40 m/min
Rated Load :
0.5 ton - 10 ton
Control Type :
Remote Control or Manual Control
Suitable Environment :
Explosion-proof, Corrosion-resistant
Air Inlet Size :
1/2 inch - 1 inch
Air Hose Size :
3/4 inch - 1 inch
Rope Diameter :
8 mm - 20 mm
Air Pressure :
0.6 MPa - 0.8 MPa
Drum Capacity :
50 m - 200 m
Power Source :
Compressed Air
Air Consumption :
1.5 m³/min - 3.0 m³/min
Model :
JQH Series Air Winch
Certifications :
CE, ISO
Usage :
Lifting in Oilfield
Safety Features :
Emergency Stop Button, Overload Protection
Description

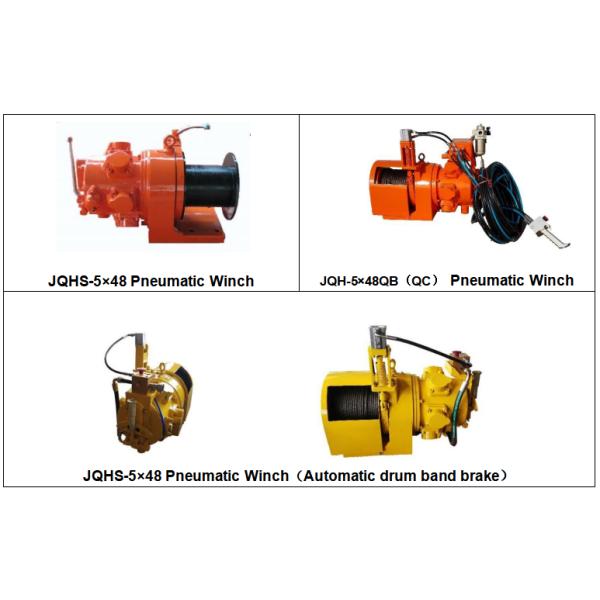

JQH-5×48Y Telecontrol Air Winch Juling Branch

INTRODUCTION OF JQH SERIES AIR WINCH


Tai 'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of pneumatic machinery. It has more than 30 years of experience in the research and development and manufacturing of pneumatic machinery. It is a professional research and development manufacturer of pneumatic winch, and a member of the first-class supply network of Sinopec and petrochina.

JQH type pneumatic winch is a single drum winch powered by piston type gas motor. The winch is mainly used for hauling and lifting heavy objects in oilfield drilling (including ocean), mining mines such as metal mines and coal mines, and construction engineering departments.

Because of its small size, light weight, adjustable speed, easy handling and fast installation, it is more suitable for underground operations in mining fields. For example, in the excavation, mining face loading station scheduling, hauling mining cars and lifting in the narrow tunnel underground, hauling tools, instruments and other heavy objects.

Operation mode classification: local control, remote control,local contro＋remote control;The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.


TECHNICAL PARAMETERS

Oilfield Lifting Telecontrol Air Winch Corrosion Resistant

○1 JQH:Single support piston type pneumatic winch

○2 max lifting force in first layer:kN

○3 max speed:m/min

○4 Q:Remote control gas control；D:electronic control；Y: telecontrol ；

○5 Variant product serial number:A,B,C etc.

Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
