H-beam three-dimensional five-axis laser production line laser cutting machine
H-beam three-dimensional five-axis laser production line laser cutting machine
Specifications
Model Number :
TY-26025H
Cooling Mode :
Water cooling
Cutting speed :
80M/MIN
Certification :
CE
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Laser source :
Raycus/Max/IPG optional
Maximum acceleration :
1.0G
Supply Ability :
100 sets per month
Product Name :
H beam Laser Cutting Machine
Brand Name :
TAIYI
Voltage :
380V 50/60HZ
MOQ :
1 Set
Delivery Time :
25-45 work days
Repeating accuracy :
±0.03mm
Price :
USD77030—USD120000
Laser power :
12000-60000w
Packaging Details :
Export standard packing
Description
  • Model Features

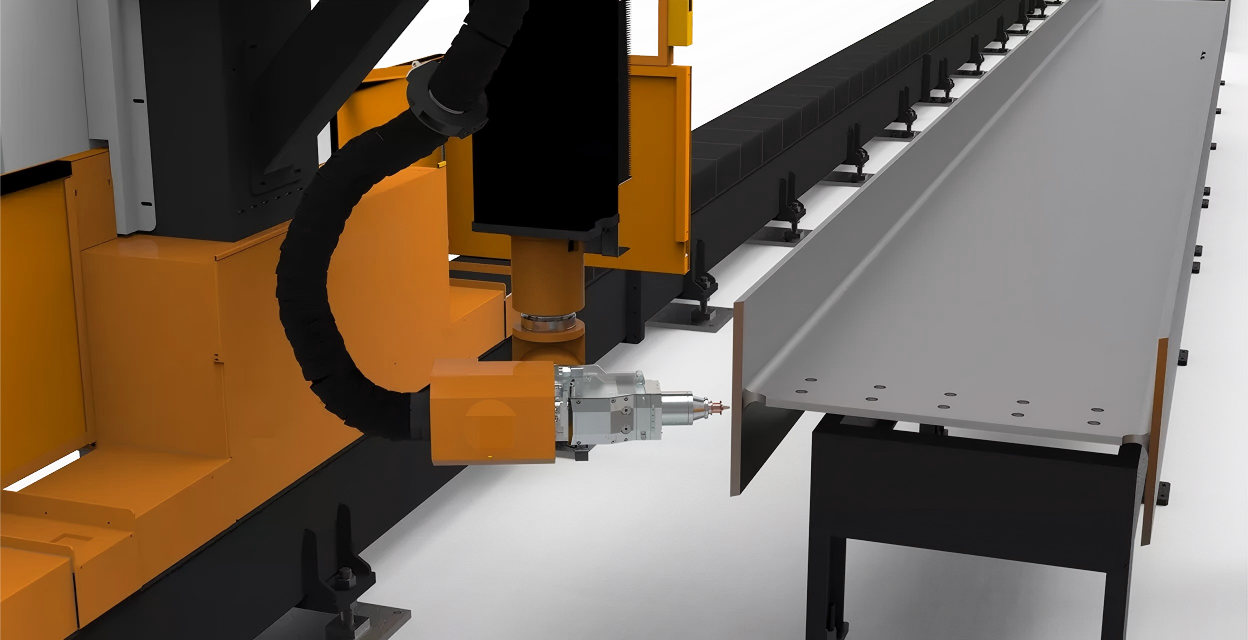

    1.The exclusive patented gantry structure design delivers industry-leading loading speed with minimal load. The dual-drive gantry system ensures safety, stability, high precision, and zero performance degradation, making it ideal for continuous 24-hour operation.
    2 . Independent development of 3 D five-axis linkage technology, achieving ultra-high efficiency;
    3. The open structure features a dual-station design with alternating operations between the two stations, significantly reducing material handling time and achieving a processing efficiency approximately 15 times higher than manual operation.
    4 . The system supports contour detection and automatically adjusts for workpiece deformation.
    5.The tooling positioning and centering device effectively controls the impact of material deformation.
    6. High-precision floating shaft design with rapid response and collision prevention capabilities;

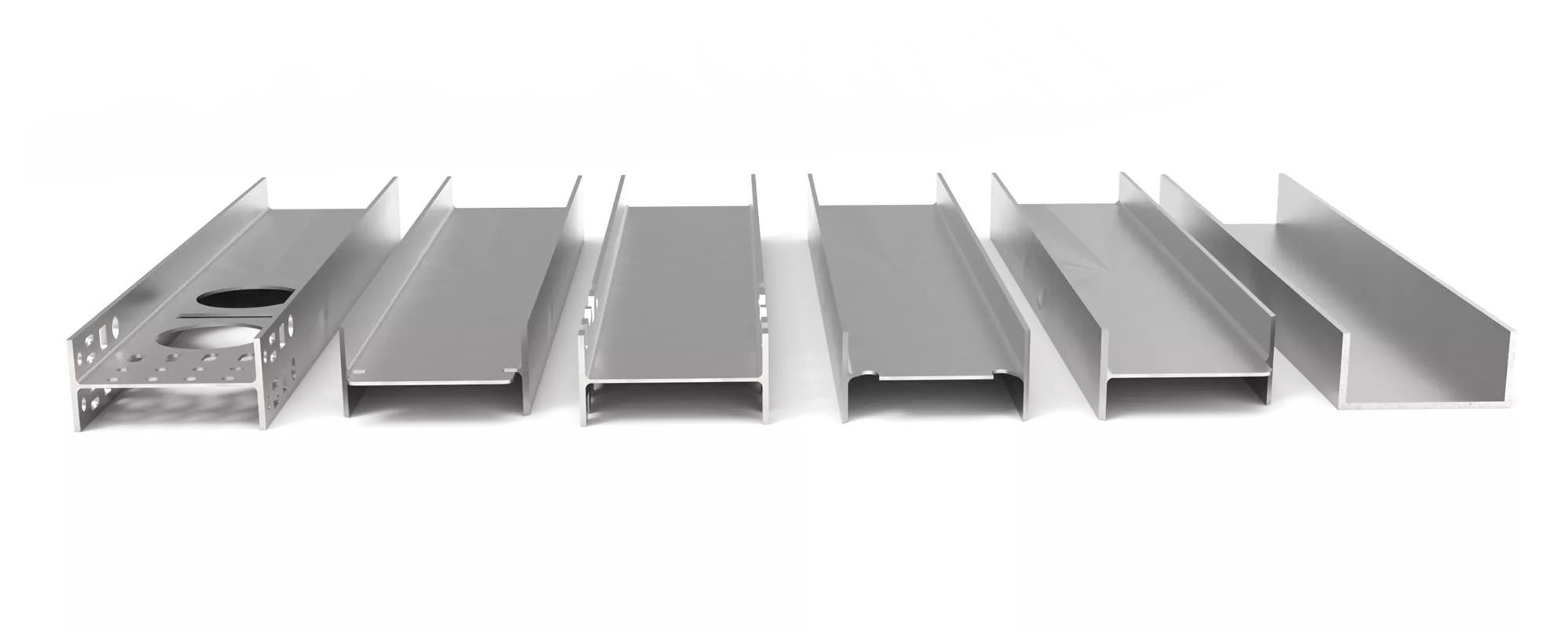

    7 . For H-beams of various specifications (web thickness 100mm–1200mm) , cutting, drilling, beveling, marking, and line drawing can be completed in a single operation without transportation.
    8.The process library includes precision hole cutting techniques;

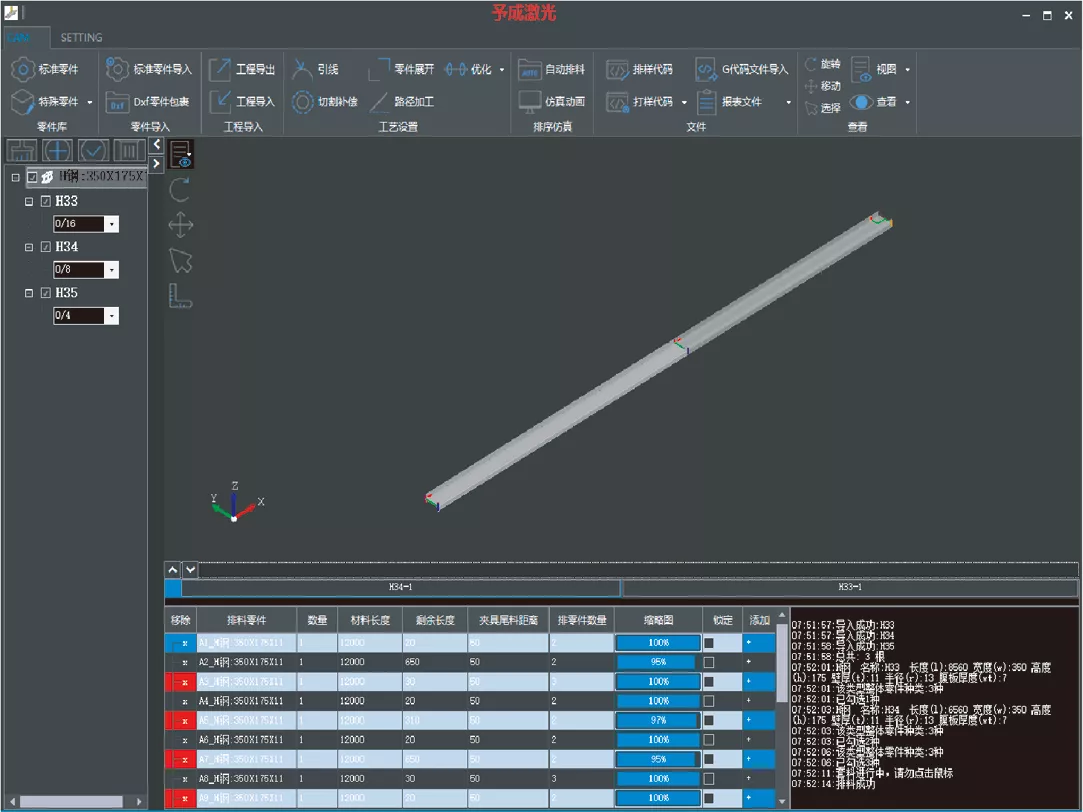

    9. Supports various butt-joint groove cutting processes; 10 . Supports cutting TEKLA steel structure 3 D modeling data files; 11. The equipment processing statistics feature allows real-time monitoring of processing status on remote terminals.
  • Applicable Industry
    Suitable for metal materials including stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, chromium-nickel-iron alloy, and titanium alloy. Widely used in various manufacturing industries such as steel structures, bridge construction, shipbuilding, floating docks, and metal processing services.
Order number Project Parameter
1 Processing size (length x width) 26000mmX2500mm
2 X-axis stroke ≧27000mm
3 Y-axis stroke ≧2500mm
4 Z-axis stroke 1000mm
5 Maximum cutting width of H-beam (web) 1200mm
6 Maximum cutting height of H-beam (flange plate) 500mm
7 Maximum cutting thickness Direct cut ≤30 mm (flange groove ≤20 mm)
8 Maximum cutting length 26000mm
9 Maximum cutting plate width 2500mm
10 X/Y axis positioning accuracy ±0.05mm/m
11 X/Y axis repositioning accuracy ±0.03mm/m
12 X-Y maximum speed 50m/min
13 Accelerated speed 0.5G
14 Number of phases 3
15 Power Specification 380V/50HZ
16 Overall Power Supply Protection Level IP54

H-beam three-dimensional five-axis laser production line laser cutting machineH-beam three-dimensional five-axis laser production line laser cutting machineH-beam three-dimensional five-axis laser production line laser cutting machineH-beam three-dimensional five-axis laser production line laser cutting machine
